SC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm
SC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

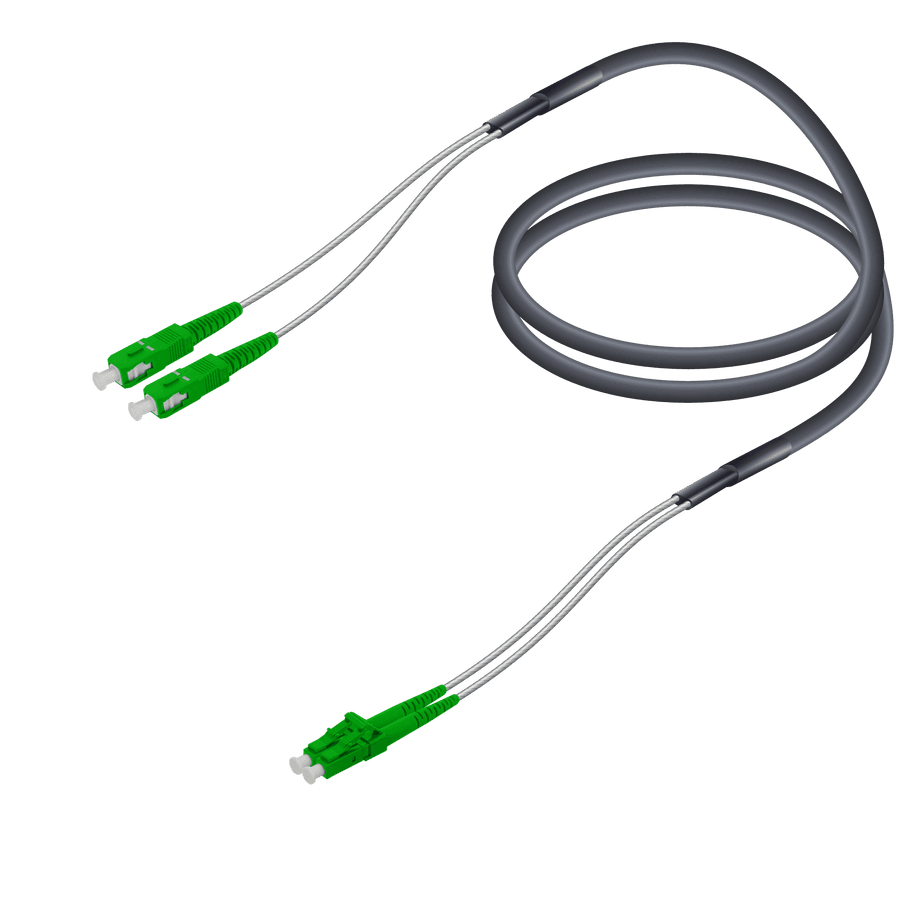

SC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm Features This 7.0mm universal (indoor/outdoor) FTTA breakout with corrugated steel has two green SC/APC connectors on one side and two green LC/APC connectors on the other, and they are connected by two single-mode A2 fibers with 9µm core diameter and 125µm cladding diameter. SC means "Square Connector" and it has 2.5mm diameter ceramic ferrule. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on both sides is UPC, which means its surface is ultra polished for ultra physical contact . Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.20000000298023224 Fiber Optic Universal Breakout | Single Mode 7.0mm | Datasheet
