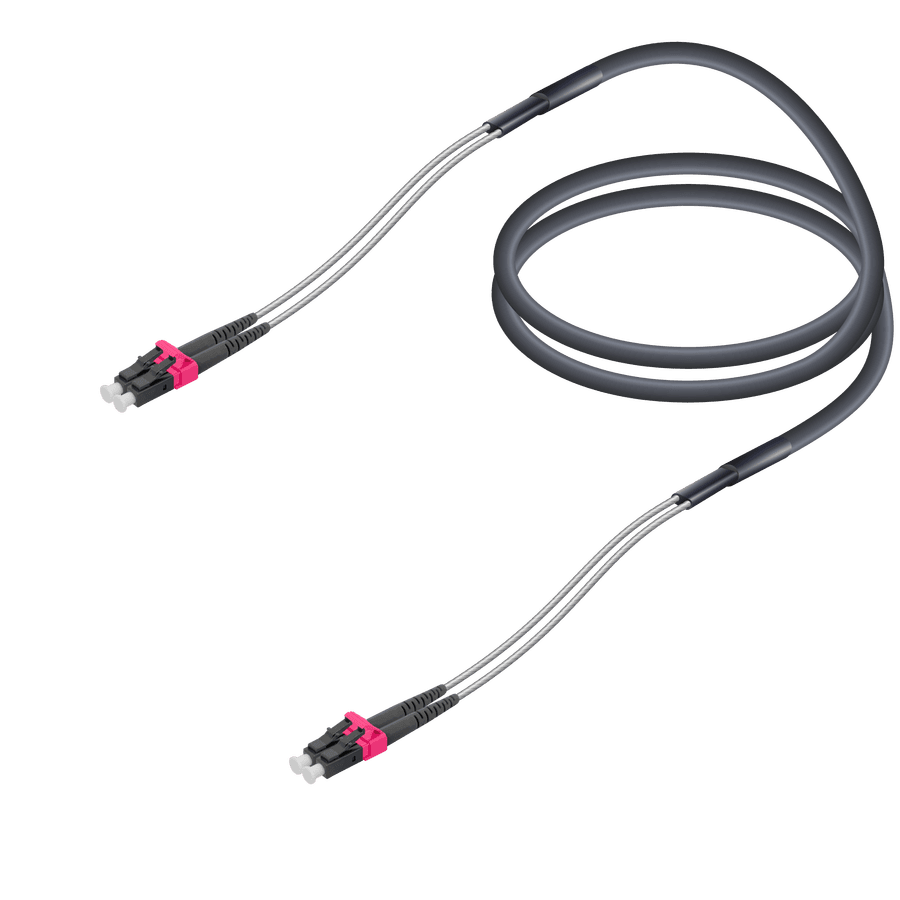

LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm
LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
LC/UPC-LC/UPC | Multi Mode G651.OM4 Corrugated Steel FTTA Breakout | 7.0x2.85mm Features This 7.0mm universal (indoor/outdoor) FTTA breakout with corrugated steel has two multi-mode violet LC/UPC connectors on each side, and they are connected by two multi-mode OM4 fibers with 50µm core diameter and 125µm cladding diameter. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. T he UPC ferrule of each side connector means its surface is straightly polished for ultra physical contact. Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.20000000298023224 Fiber Optic Universal Breakout | Multi Mode 7.0mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
