OLS-34 Optical Light Source | Multi-mode

Descripción

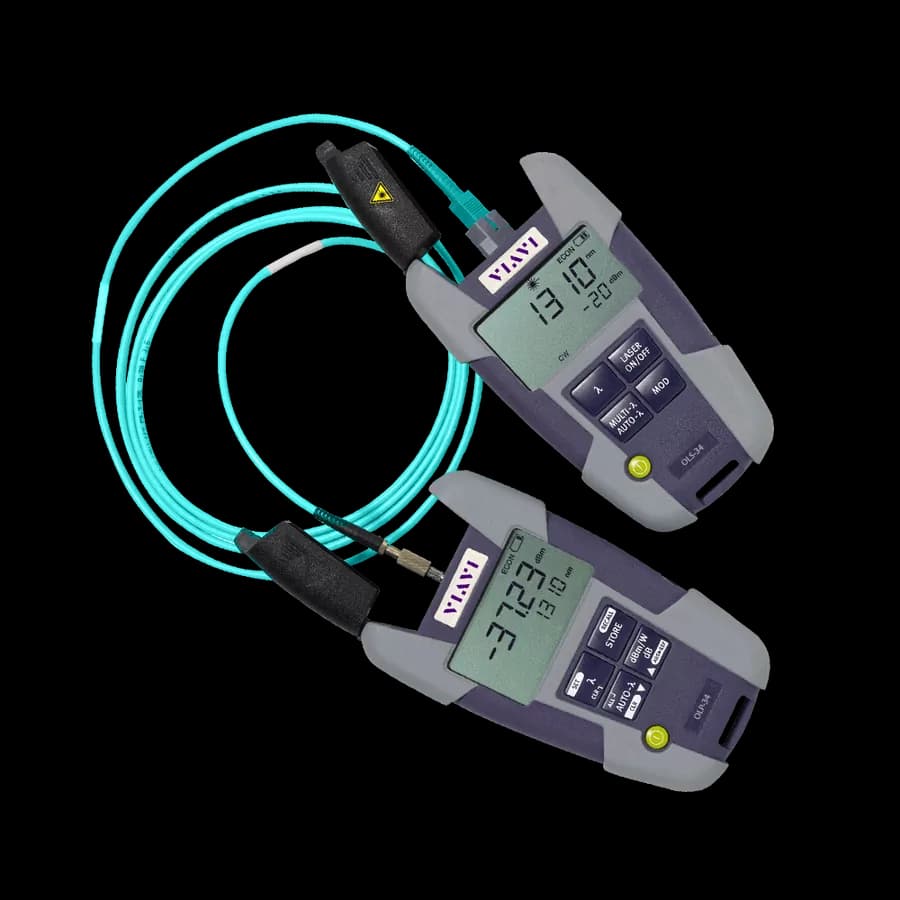

OLS-34 Optical Light Source | Multi-mode Features The OLS-34 is used specifically for LAN/WAN access and enterprise multi-mode fiber optic networks with 850/1300 nm wavelength, it also has fixed ST and LC adapters, and switchable FC, SC, ST and LC adapters. OLS-34 optical light source is small, shock resistant, water splash resistant and can be powered by Micro USB and AA batteries, for 30 hours. SmartPocket small and rugged optical light source VIAVI OLS-34 is used with power meters for testing loss and continuity in fiber optic networks. VIAVI OLS-34 Benefits Cost-effective, rugged, and compact Switchable optical adapters for maximum flexibility Auto λ and TwinTest transmission modes 3-year calibration Combines up to 2 wavelengths in MM VIAVI OLS-34 Applications Link insertion loss measurements Continuity checks Enterprise/LAN networks 850/1300 nm multi-mode wavelengths Access and metro (LAN/WAN) networks Standard single-mode wavelengths for telecom, CATV, and military application OLS-34 / OLS-35 / OLS-36 Comparison OLS-34 Multimode Light Source OLS-35 Single-Mode Light Source OLS-36 Quad Light Source Source type LED Laser LED/Laser Laser safety IEC 60825-1: 2003 IEC 60825-1: 2007 IEC 60825-1: 2007 IEC 60825-1: 2003 IEC 60825-1: 2007 Fiber type MM (50/125 μm) SM (9/125 μm) MM (50/125 μm)/SM (9/125 μm) Optical interface type PC/1 single port for all wavelengths PC/1 single port for all wavelengths PC/1 port for MM and 1 port for SM Optical interface connectors Fixed: ST Switchable: LC, FC, SC, ST Fixed: LC Switchable SC, FC, ST, LC Switchable: SC, FC, ST, LC Central wavelength 850 nm (±20 nm) 1300 nm (–20 nm/+40 nm) 1310 nm (±20 nm) 1550 nm (±20 nm) 850 (±20 nm) 1300 (–20 nm/+40 nm) 1310 (±20 nm) 1550 (±20 nm) Spectral width1 <170 nm <5 nm <170 nm/<5 nm Output power –20 dBm2 –7 dBm –20 dBm2/–7 dBm Stability short term (15 min)3 ±0.02 dB ±0.02 dB ±0.02 dB Stability long term (8h)3 ±0.05 dB ±0.05 dB ±0.05 dB Tone generation 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz Auto λ mode4 Yes Yes Yes Multi λ mode4 Yes (2 λs) Yes (2 λs) Yes (4 λs) Launch conditions CPR capability for MM launch conditions CPR capability for MM launch conditions SmartPocket Optical Light Sources | Datasheet

Especificaciones técnicas

OLS-34 Multimode Light Source

OLS-35 Single-Mode Light Source | OLS-36 Quad Light Source

Source type

LED | Laser | LED/Laser

Laser safety

IEC 60825-1: 2003 IEC 60825-1: 2007 | IEC 60825-1: 2007 | IEC 60825-1: 2003 IEC 60825-1: 2007

Fiber type

MM (50/125 μm) | SM (9/125 μm) | MM (50/125 μm)/SM (9/125 μm)

Optical interface type

PC/1 single port for all wavelengths | PC/1 single port for all wavelengths | PC/1 port for MM and 1 port for SM

Optical interface connectors

Fixed: ST Switchable: LC, FC, SC, ST | Fixed: LC Switchable SC, FC, ST, LC | Switchable: SC, FC, ST, LC

Central wavelength

850 nm (±20 nm) 1300 nm (–20 nm/+40 nm) | 1310 nm (±20 nm) 1550 nm (±20 nm) | 850 (±20 nm) 1300 (–20 nm/+40 nm) 1310 (±20 nm) 1550 (±20 nm)

Spectral width1

<170 nm | <5 nm | <170 nm/<5 nm

Output power

–20 dBm2 | –7 dBm | –20 dBm2/–7 dBm

Stability short term (15 min)3

±0.02 dB | ±0.02 dB | ±0.02 dB

Stability long term (8h)3

±0.05 dB | ±0.05 dB | ±0.05 dB

Tone generation

270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz

Auto λ mode4

Yes | Yes | Yes

Multi λ mode4

Yes (2 λs) | Yes (2 λs) | Yes (4 λs)

Launch conditions

CPR capability for MM launch conditions | CPR capability for MM launch conditions
