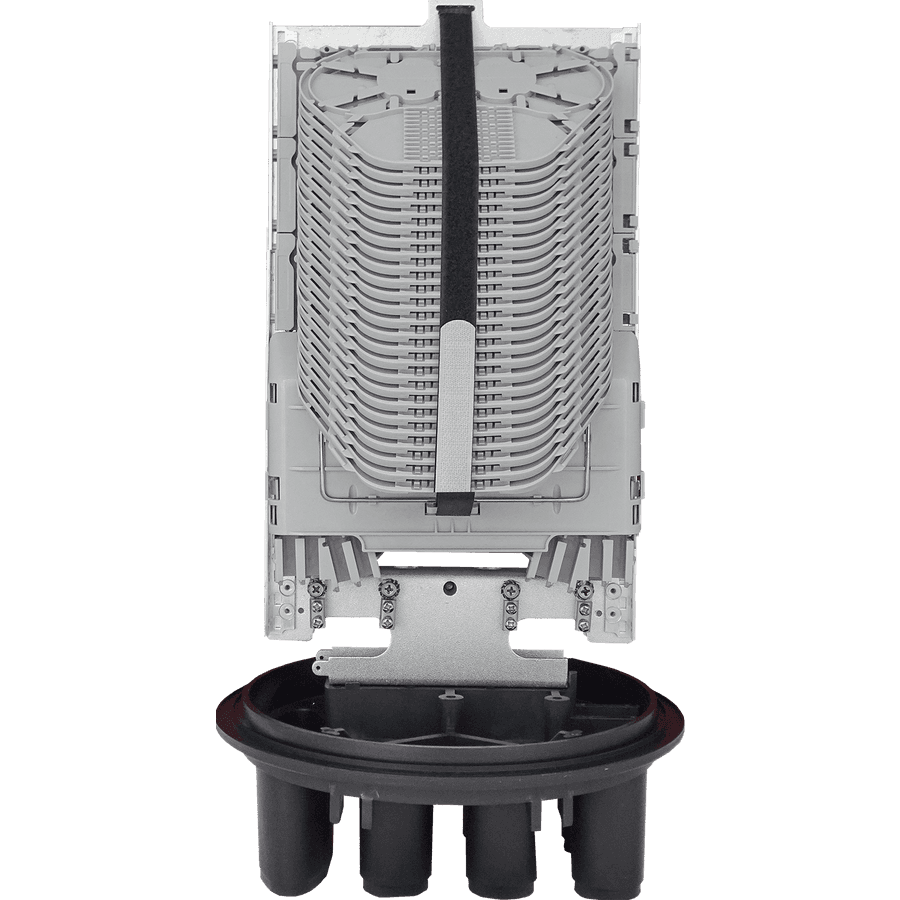

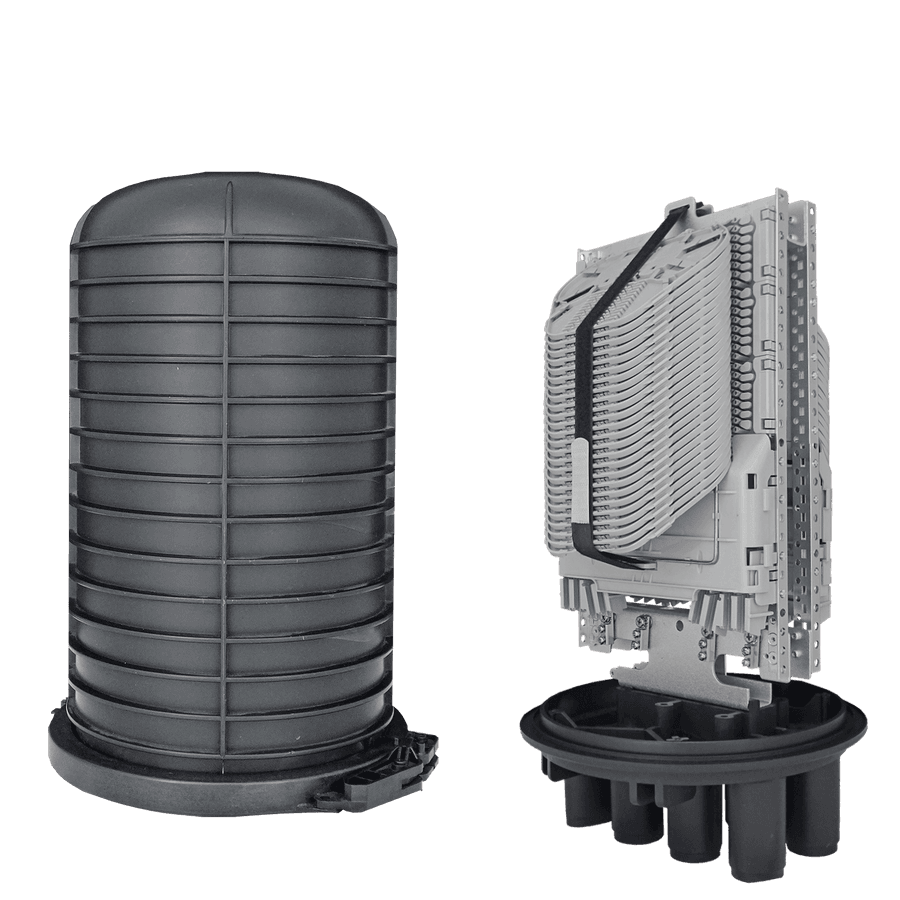

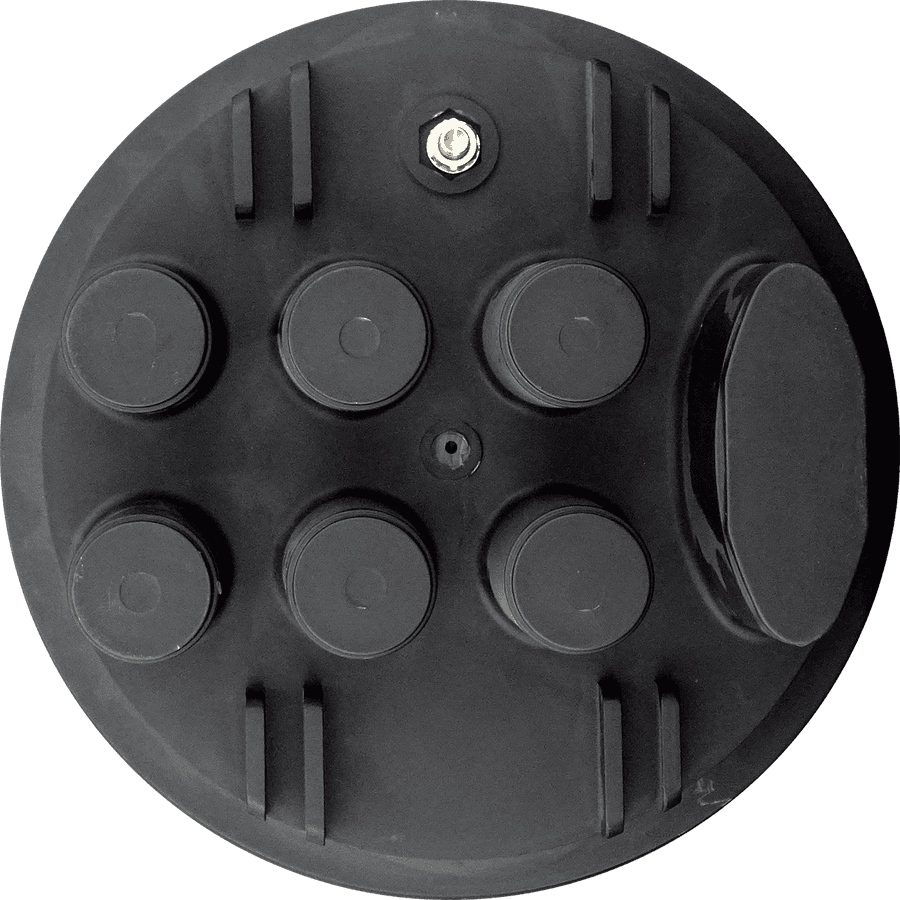

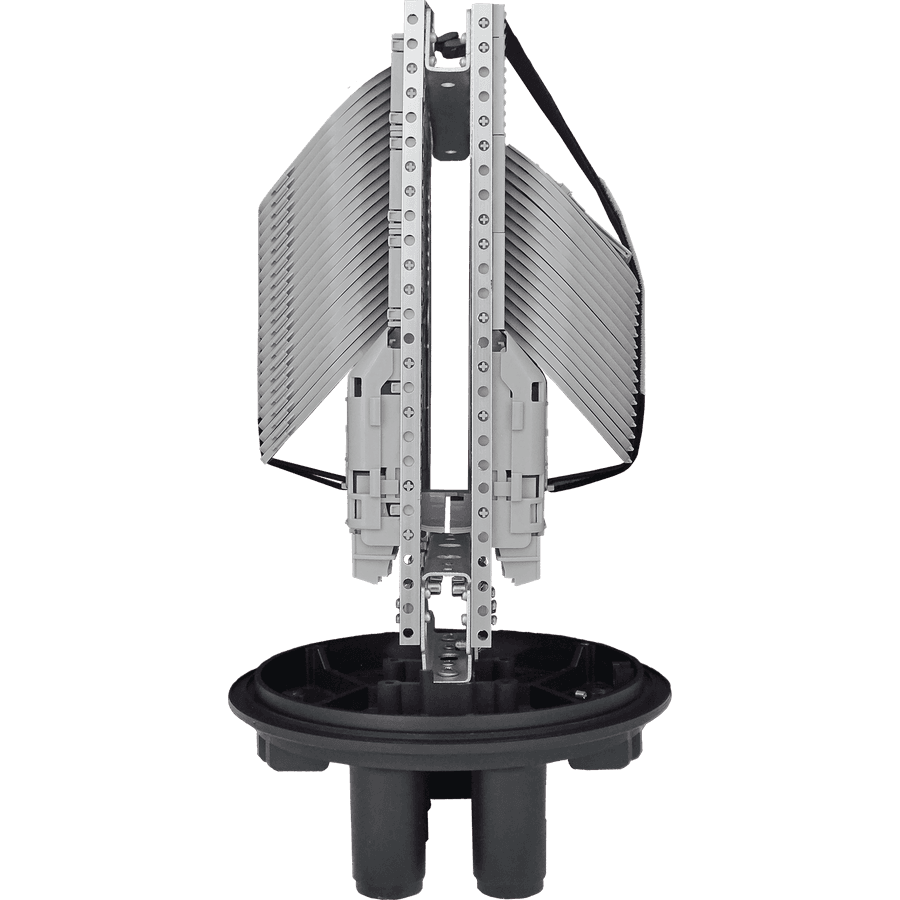

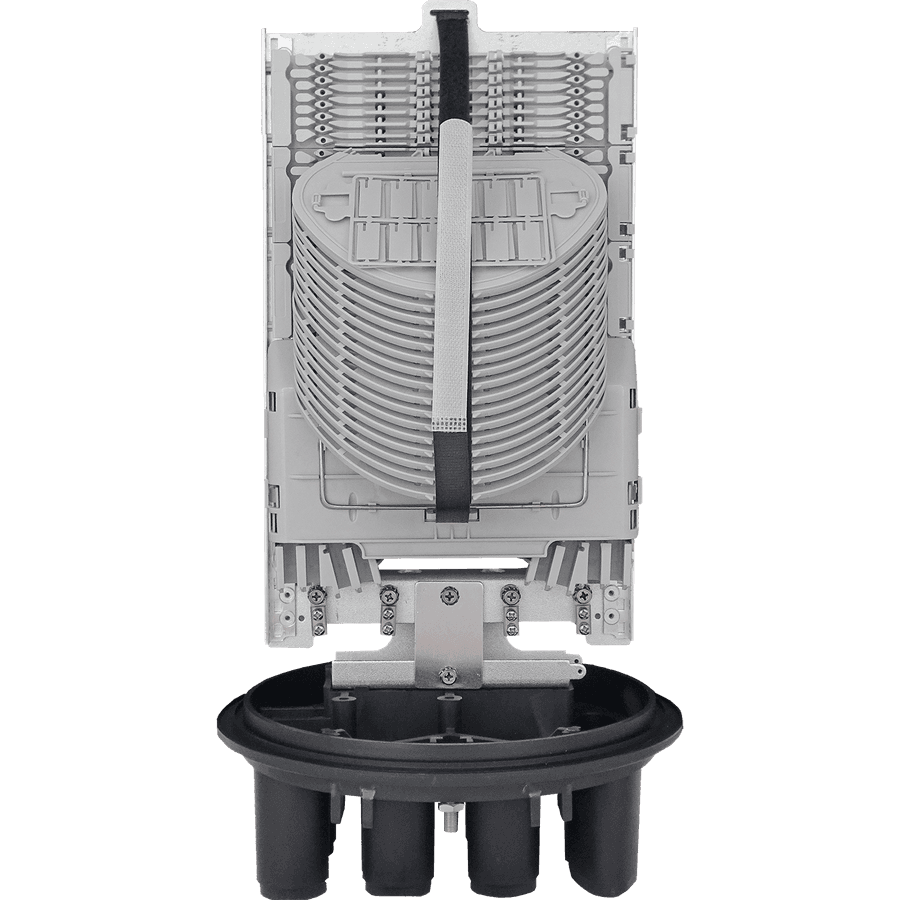

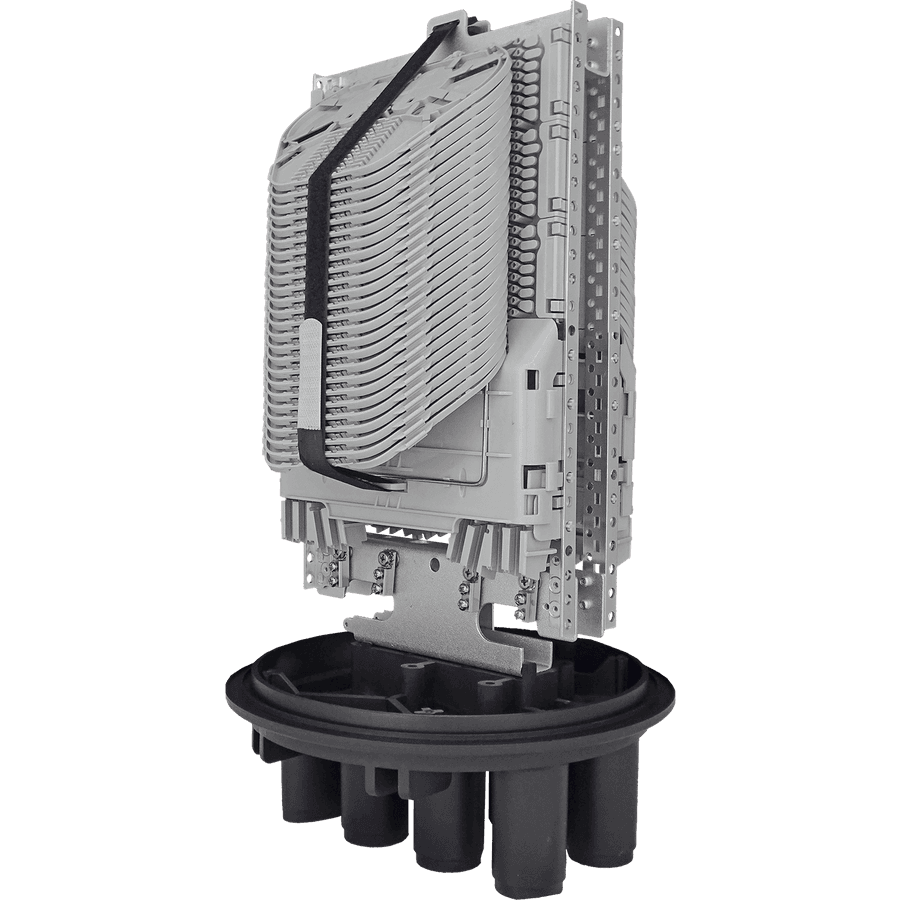

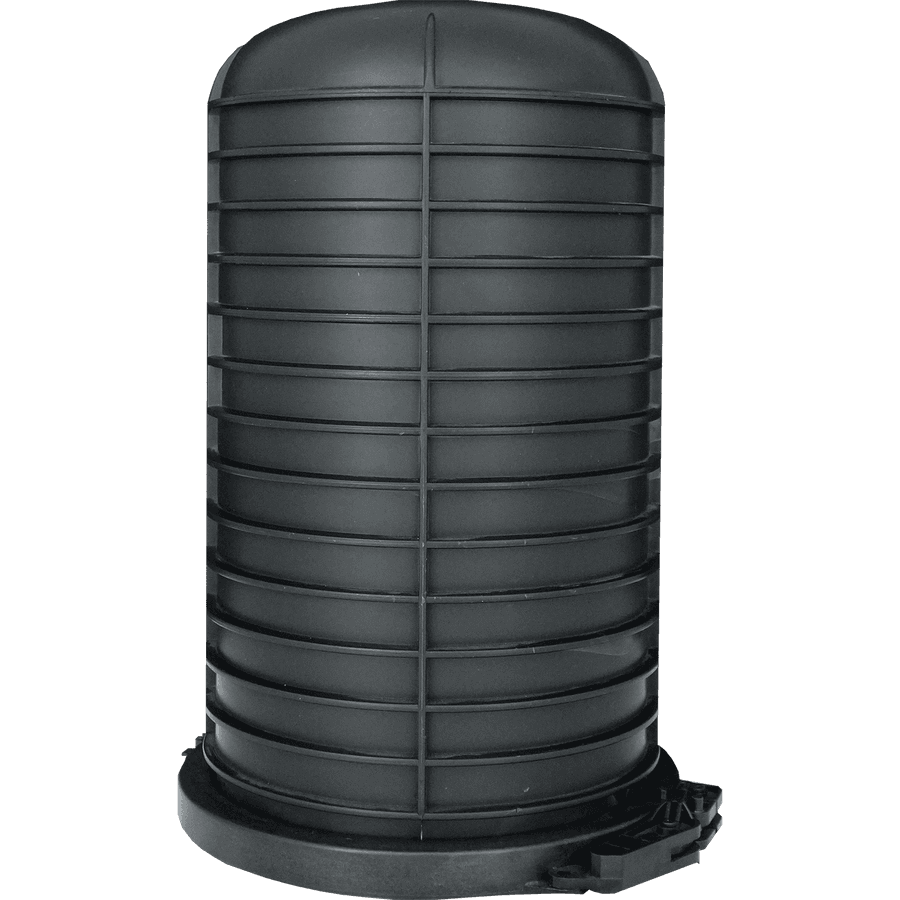

Fiber Optic Splice Closure | 48 Trays 576 Fibers 6 Ports | 492250

Descripción

Fiber Optic Splice Closure | 48 Trays 576 Fibers 6 Ports | 492250 Features This 48 trays, 6 ports fiber optic splice closure, with high capacity, can hold and protect up to 576 fibers. Samm fiber optic splice closures are ideal for physically protecting fiber splices in aerial and buried underground applications. Fiber splice closures are an essential element in FTTX and 5G infrastructure. Properties 48 cassettes, 576 fibers capacity, 6 ports, high capacity . May be used for cut, uncut and taut sheath applications. May be used for all fiber optic cable. Sheath retention & central strength member fasten system included. Closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack Installation and reentry with a minimum of tools All hardware are included Protection class: IP68 RoHS compliance Product Contents User Guide 48 pcs, 12 fibers splice cassettes According to capacity, 6 cm heat shrink additional protector Velcro for fixing trays 6 pcs round heat shrink tubes 1 pcs oval heat shrink tube Fork latch (magnesium doped aluminum) Adhesive aluminum band set for cable insulation Sandpaper Cable tie set Hose for fiber tube (from cable end to cassette entry) Number band to distinguish fibers and fiber tubes Ground wire (assembled) Splice Box screw ground branch Valve structure for filling the Splice Box with air 2 pcs Alcohol cleansing wipes Dehumidifier Size (cm) Weight (Kg) 58 x 33 x 35 7 Fiber Optic Splice Closure | 576 Fibers 48 Trays 6 Ports | Datasheet

Especificaciones técnicas

Size (cm)

Weight (Kg)

58 x 33 x 35

7
