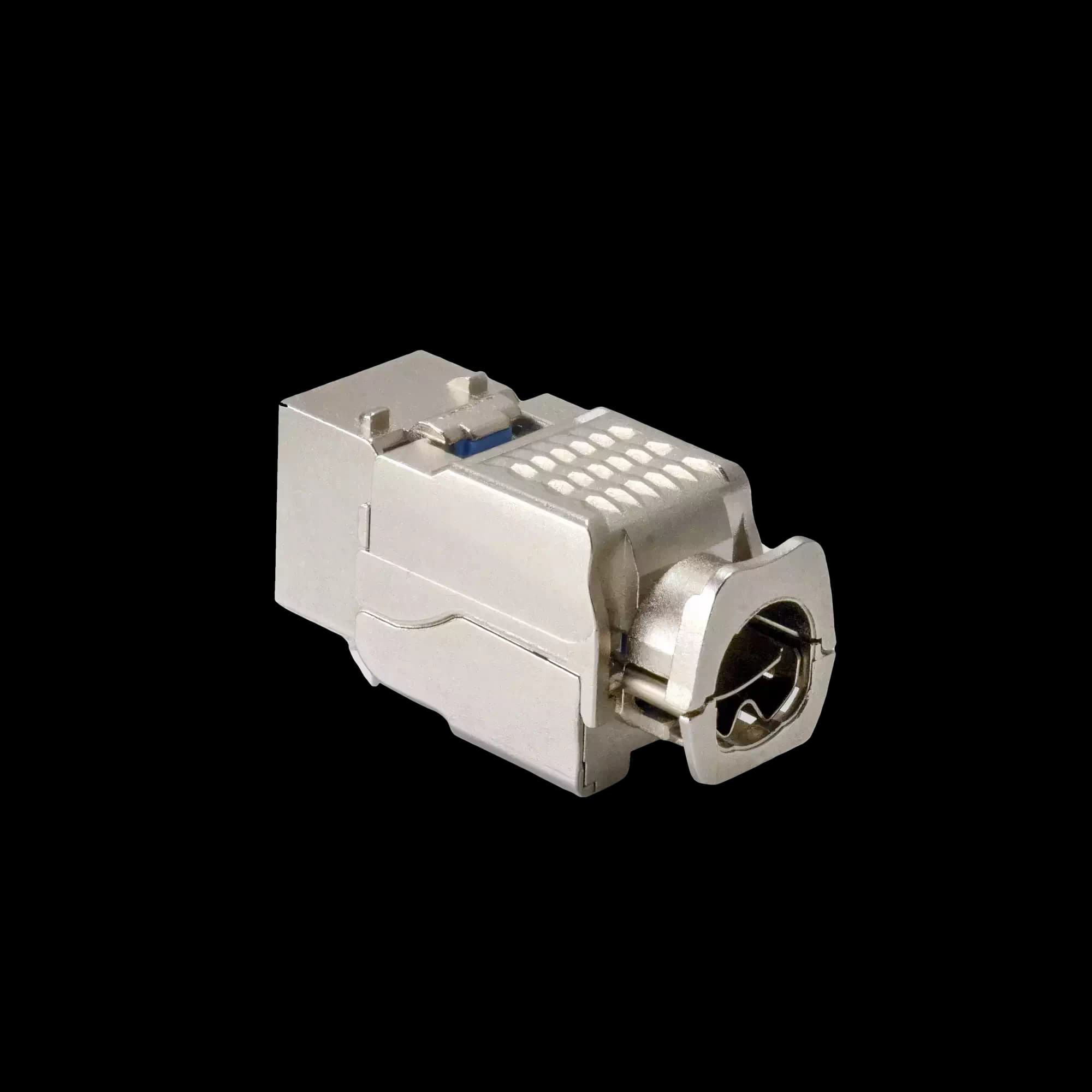

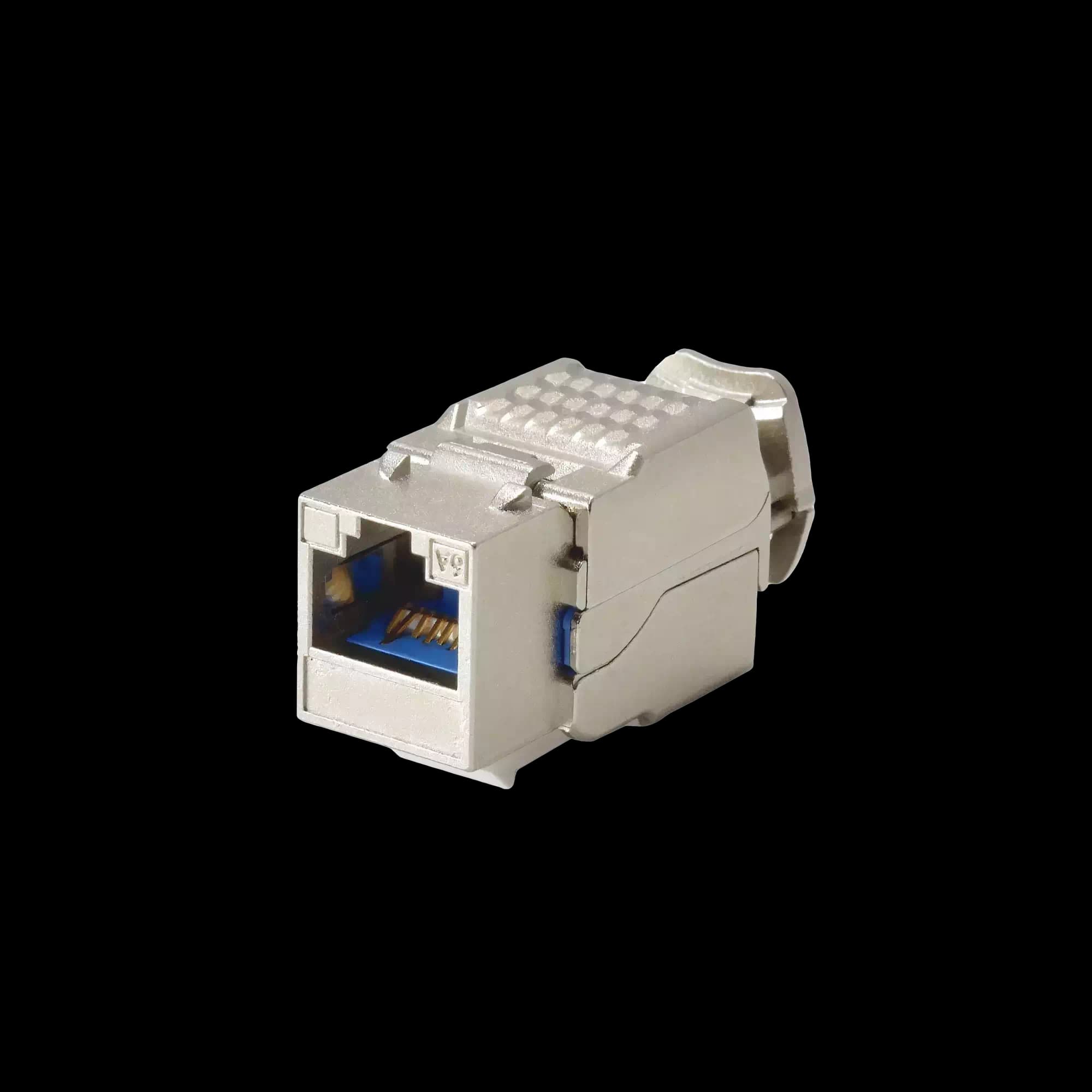

TIA CAT6A Jack to Jack Keystone 90° | Shielded
TIA CAT6A Jack to Jack Keystone 90° | Shielded
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

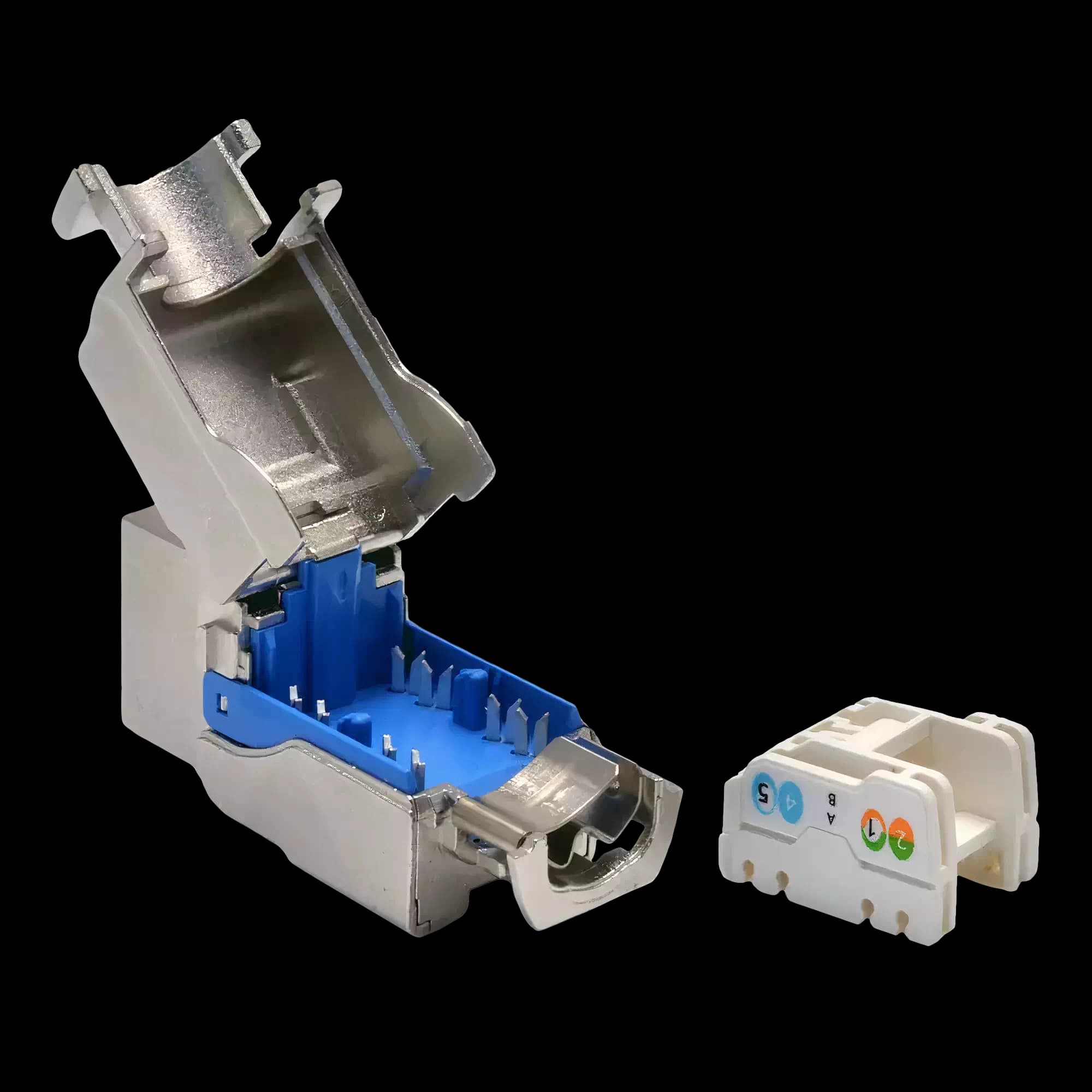

TIA CAT6A Jack to Jack Keystone 90° | Shielded Features The 90 ° CAT6A TIA unshielded jack Keystone, also known as a "Female RJ45 Connector", is used to terminate 23-24 AWG cables and can be installed easily without the need for tools. The cable terminated with jack keystones can be mounted into copper network patch panels easily. Tool-less Cat 6A Component Level 90° Shielded Keystone Jack is meant to be easily inserted and removed from a wall outlet, patch panel, or surface mount box. For ease of installation, it is individually terminated using Insulation Displacement Connectors (IDC) and a parallel plier. The STP Cat6A keystone jack has a T568A/T568B color label and fully complies with the connecting hardware transmission performance of ISO/IEC 11801 edition 2.2, CENELEC 50173-1, and ANSI-TIA-568.2-D for Return loss, Insertion loss, NEXT loss, FEXT loss, TCL, TCTL, PSANEXT loss, and PSAFLEXT loss up to 500. The one-of-a-kind construction provides a quick and effective way to reduce foreign cross-talk from surrounding connections. Features Tool-less Design: Do not need punch down tool. Can be easily and quickly assembled product Increases the efficiency of FTP installation. CAT6A Jack to Jack Keystone 180° | Shielded | Datasheet CAT6A Jack to Jack Keystone 180° | Shielded | Drawing
