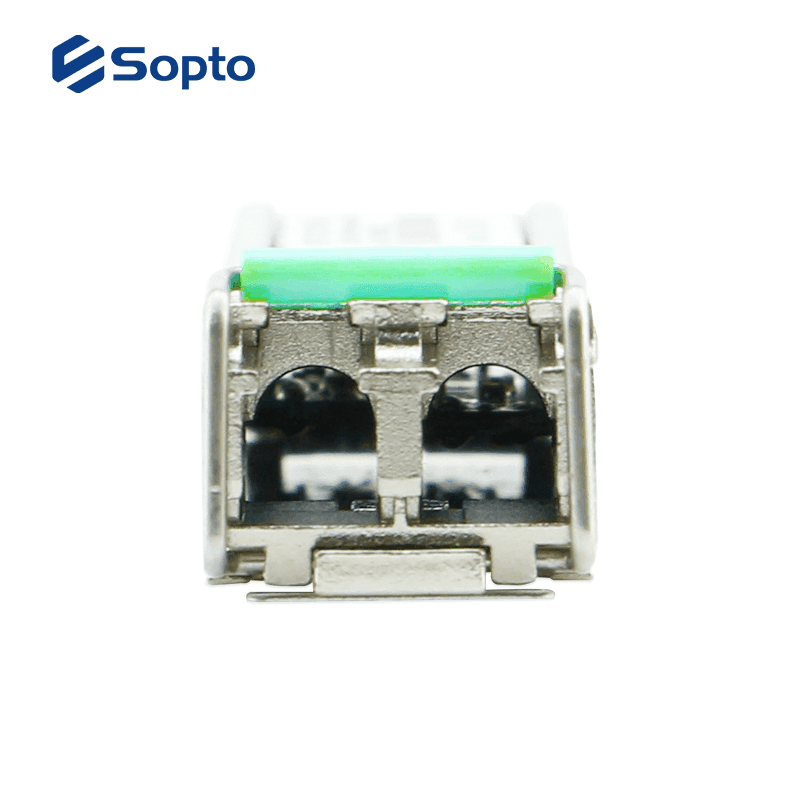

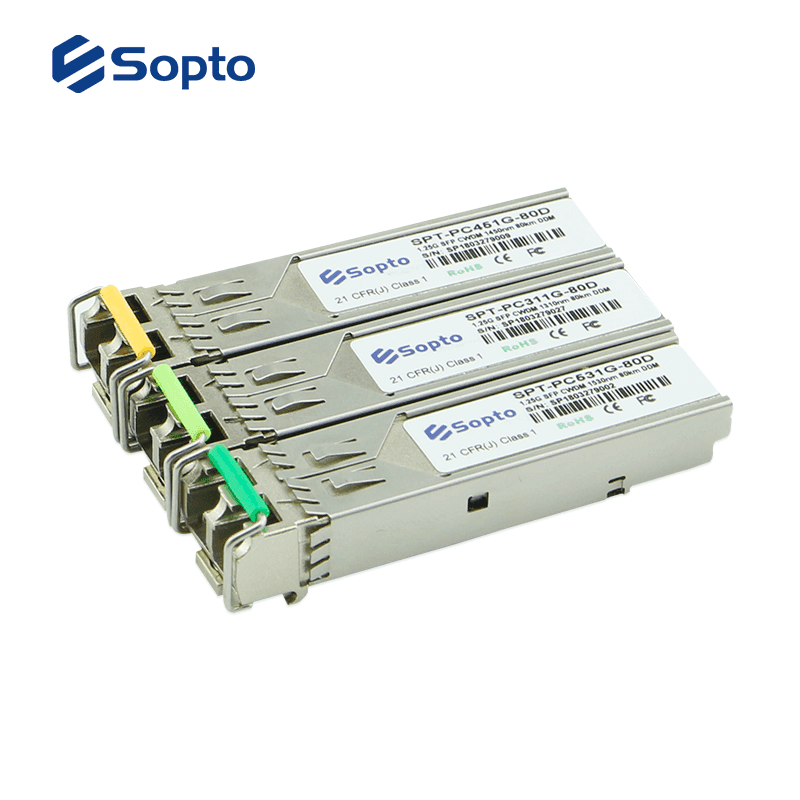

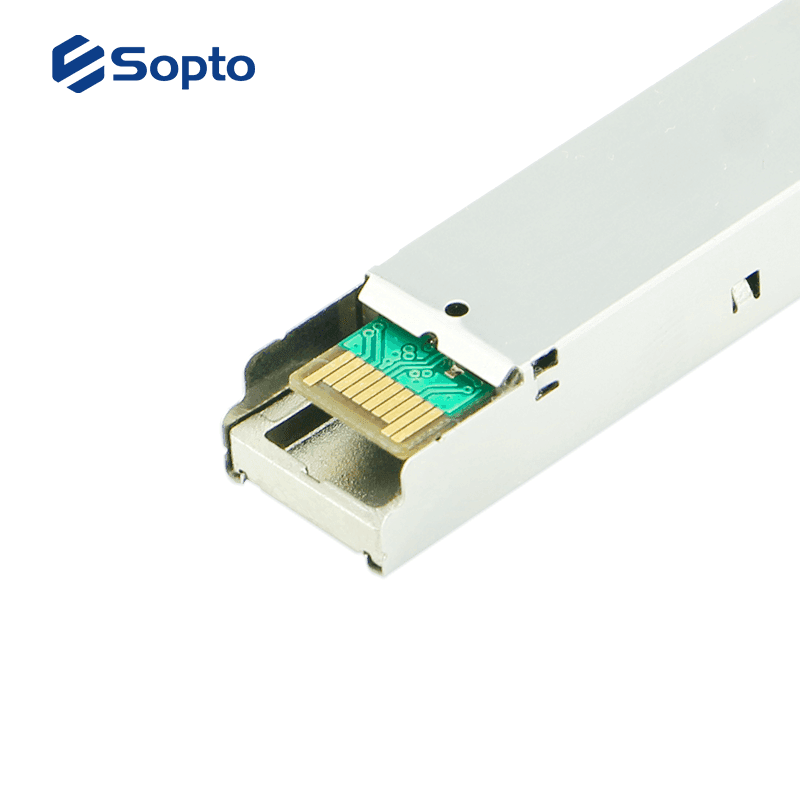

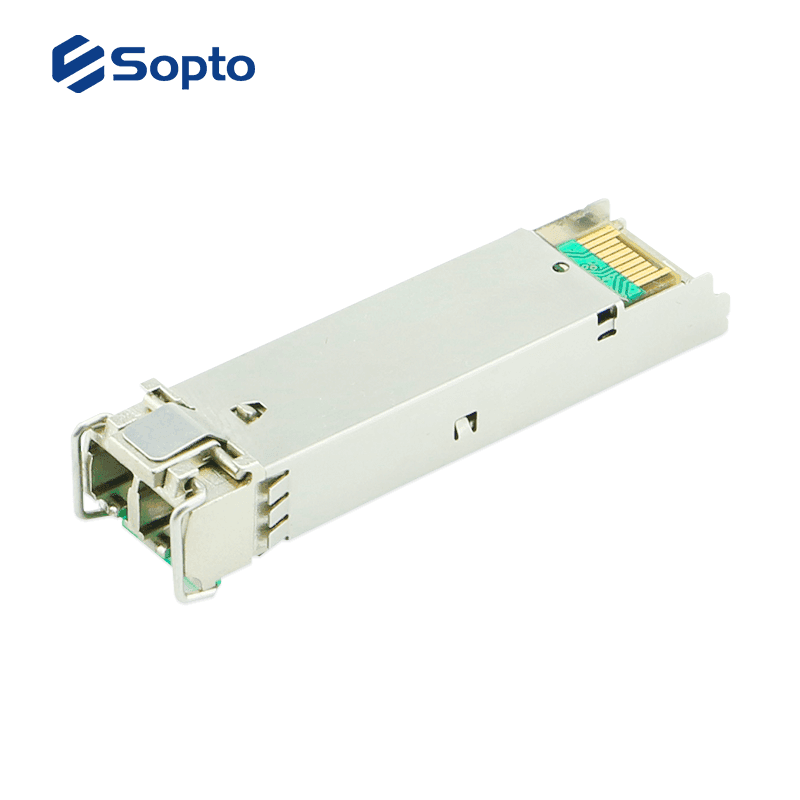

1.25G CWDM SFP
SOPTO’s CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

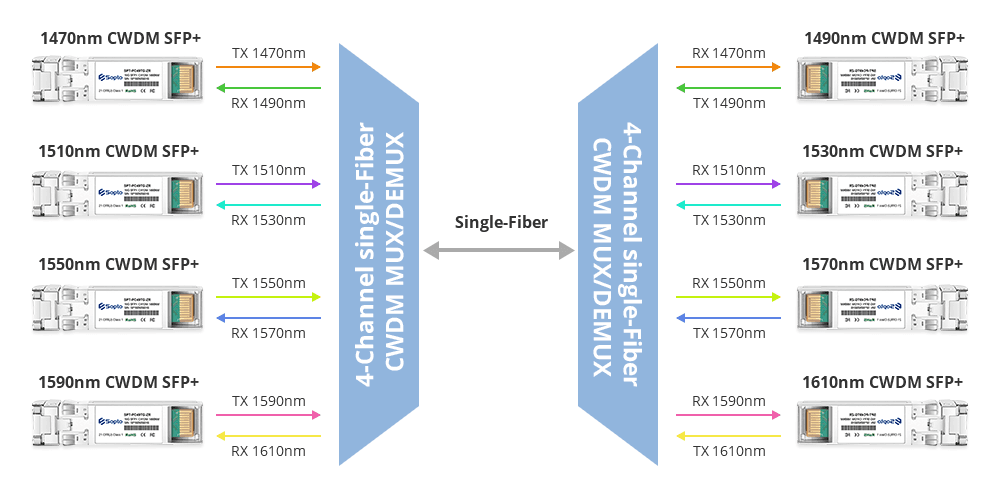

SOPTO’s CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Transmission distance up to 120km over SMF ● Supports data rates from 100Mb/s to 1.25Gb/s ● 18 Wavelengths CWDM 1270nm to 1610nm Available ● Can be used with single fiber CWDM system or dual fiber CWDM system ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C P/N Description Details SPT-PCXX1G-40D CWDM 1270nm~1610nm,1.25Gbps, 40km,0ºC ~ +70ºC, With DDM PDF SPT-PCXX1G-80D CWDM 1270nm~1610nm, 1.25Gbps, 80km,0ºC ~ +70ºC, With DDM PDF SPT-PCXX1G-120D CWDM 1270nm~1610nm, 1.25Gbps, 120km,0ºC ~ +70ºC, With DDM PDF Compliant ● RoHS-6 ● SFP MSA ● FC-PI 13.0 ● IEEE Std 802.3 Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs ---------------------------------------------------------------------------------------------------------------------------------- Applications ● Fast Ethernet ● Gigabit Ethernet ● 1X Fibre Channel ● SONET/SDH OC-3/STM-1 ● SONET/SDH OC-12/STM-4 ● SONET/SDH OC-24/STM-8 ● CWDM Networks Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate (Gbps) Distance Fiber OutputPower (dBm) Sensitivity (dBm) Interface Temp. DDM SPT-PCXX1G-40D 1.25 40km SM -5～0 -24 Duplex LC 0 to 70℃ D SPT-PCXX1G-80D 1.25 80km SM 0～5 -24 Duplex LC 0 to 70℃ D SPT-PCXX1G-120D 1.25 120km SM 0～5 -32 Duplex LC 0 to 70℃ D Notes: In the Part Number, XX stands for central wavelength, such as 27 for 1270nm, 31 for 1310nm, 47 for 1470nm, ......61 for 1610nm.
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
