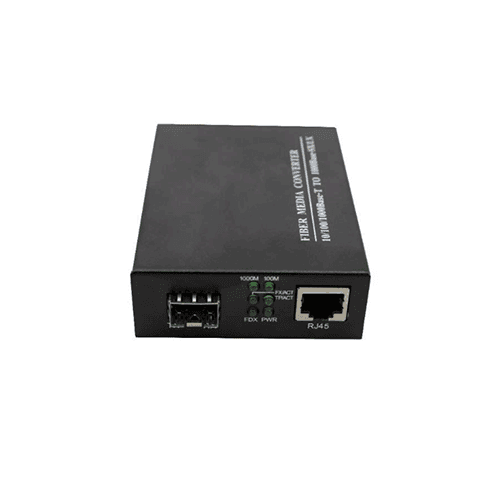

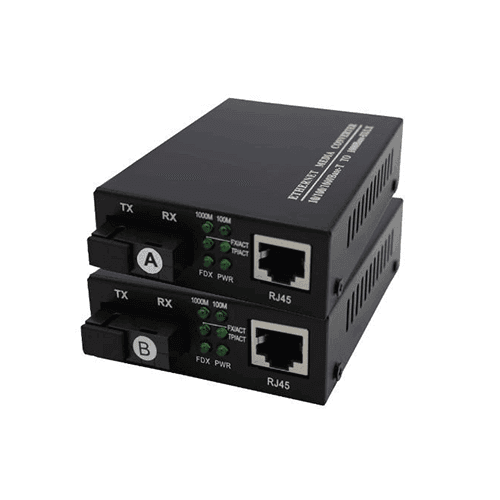

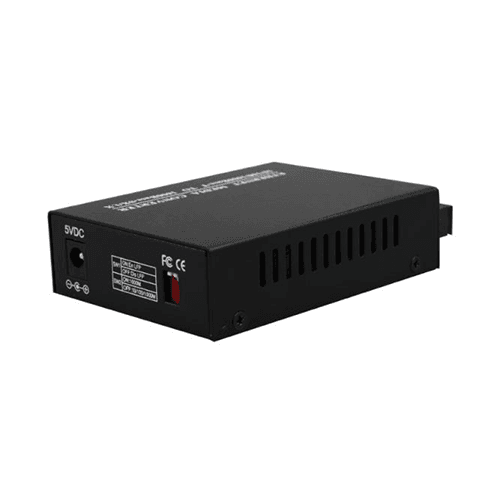

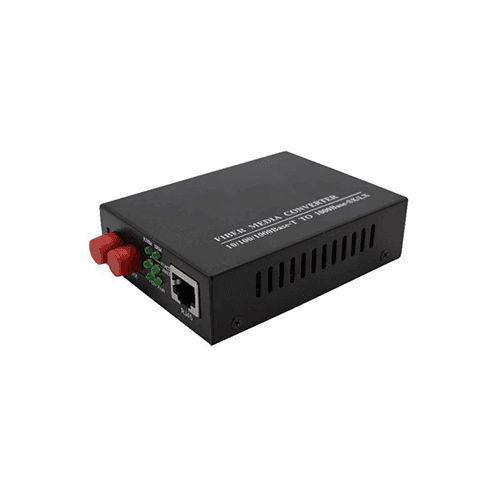

10/100/1000M Media Converter
The 10/100/1000M media converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps or 1000M Ethernet rate without any adjustments. SOPTO provides two types 10/100/1000M.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
The 10/100/1000M media converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps or 1000M Ethernet rate without any adjustments. SOPTO provides two types 10/100/1000M. Feature ● 10/100/1000Mbps Ethernet ● 1000 BASE-SX/LX optical port ● Automatic MDI/MDI-X crossover ● SNMP management optional ● Internal Power supply optional ● 10/100/1000 BASE-T/TX electrical port ● No in-field optical adjustments required ● Optical port supports 1000Mbps full duplex data ● Provides DIP switch for LFP function (Disable / Enable) setting ● Distances up to 2km for Multi-mode; Up to 120km for Single mode ● Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data. ● Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX ● Voltage transient protection on all power and signal input. output lines provide unconditional protection from power surges and other voltage transient events Applications ● LAN/WAN ● Access Control Systems ● 10/100/1000 Mbps Ethernet ● High Speed Computer Links Fast Ethernet Application Gigabit Ethernet Application Ordering Information Part Number Fiber Port type Wavelengths (nm) Fiber Port Rate (Mbps) RJ45 Rate (Mbps) Distance (km) Power Supply Temp. SPM-ET2X-PX SFP slot - - 10/100/1000 - External 220V AC 0 ~ 50°C SPM-ET28-NS5S 1*9, SC 850 1000 10/100/1000 0.5 External 220V AC 0 ~ 50°C SPM-ET23-N02S 1*9, SC 1310 1000 10/100/1000 2 External 220V AC 0 ~ 50°C SPM-ET23-N20S 1*9, SC 1310 1000 10/100/1000 20 External 220V AC 0 ~ 50°C SPM-ET23-N40S 1*9, SC 1310 1000 10/100/1000 40 External 220V AC 0 ~ 50°C SPM-ET25-N60S 1*9, SC 1550 1000 10/100/1000 60 External 220V AC 0 ~ 50°C SPM-ET25-N80S 1*9, SC 1550 1000 10/100/1000 80 External 220V AC 0 ~ 50°C SPM-ET235-N20S 1*9 , SC 1310Tx/1550Rx 1000 10/100/1000 20 External 220V AC 0 ~ 50°C SPM-ET253-N20S 1*9 , SC 1550Tx/1310Rx 1000 10/100/1000 20 External 220V AC 0 ~ 50°C SPM-ET235-N40S 1*9, SC 1310Tx/1550Rx 1000 10/100/1000 40 External 220V AC 0 ~ 50°C SPM-ET253-N40S BIDI 1*9, SC 1550Tx/1310Rx 1000 10/100/1000 40 External 220V AC 0 ~ 50°C SPM-ET245-N60S BIDI 1*9, SC 1490Tx/1550Rx 1000 10/100/1000 60 External 220V AC 0 ~ 50°C SPM-ET254-N60S BIDI 1*9, SC 1550Tx/1490Rx 1000 10/100/1000 60 External 220V AC 0 ~ 50°C SPM-ET245-N80S BIDI 1*9, SC 1490Tx/1550Rx 1000 10/100/1000 80 External 220V AC 0 ~ 50°C SPM-ET254-N80S BIDI 1*9, SC 1550Tx/1490Rx 1000 10/100/1000 80 External 220V AC 0 ~ 50°C SPM-ET245-N60F BIDI 1*9, FC 1490Tx/1550Rx 1000 10/100/1000 60 External 220V AC 0 ~ 50°C SPM-EDT254-N60F BIDI 1*9, FC 1550Tx/1490Rx 1000 10/100/1000 60 External 48V DC 0 ~ 50°C
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
