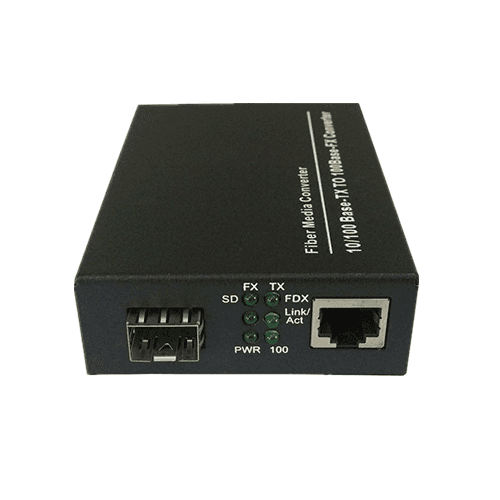

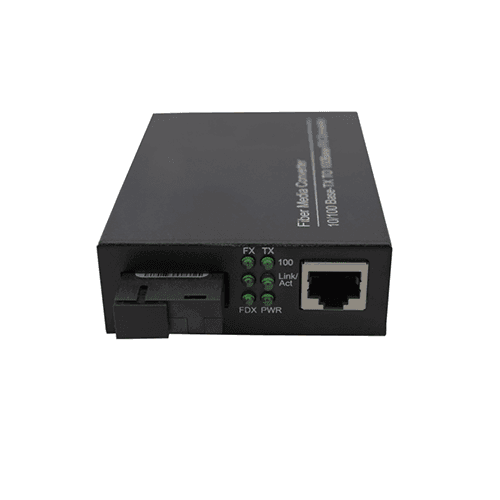

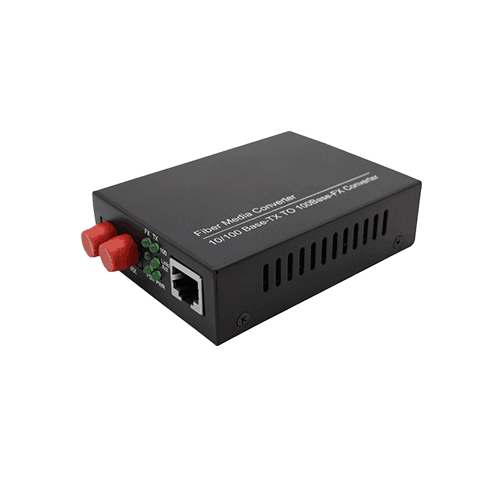

10/100M Media Converter
The media converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
The media converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. Feature ● Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards ● Auto-negotiation support on RJ45 port ● Auto-Negotiation of duplex(HDX/FDX) on RJ45 port ● Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data. ● Auto MDI/MDI-X support on RJ45 port ● Distances up to: 2 km Multimode, 120 km Single Mode ● SC, FC optical Interface ● Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status ● External power adapter Applications ● LAN/WAN ● Access Control Systems ● 10/100 Mbps Ethernet ● High Speed Computer Links Fast Ethernet Application Gigabit Ethernet Application Ordering Information Part Number Fiber Port type Wavelengths (nm) Fiber Port Rate (Mbps) RJ45 Rate (Mbps) Distance (km) Power Supply Temp. SPM-ET4X-PX SFP slot - - 10/100 - External Power Supply 220V AC 0 ~ 50°C SPM-ET43-N02S 1*9, SC 1310 100 10/100 2 External Power Supply 220V AC 0 ~ 50°C SPM-ET43-N02F 1*9, FC 1310 100 10/100 2 External Power 220V AC 0 ~ 50°C SPM-ET43-N02T 1*9, ST 1310 100 10/100 2 External Power Supply 220V AC 0 ~ 50°C SPM-ET43-N20S 1*9, SC 1310 100 10/100 20 External Power Supply 220V AC 0 ~ 50°C SPM-ET43-N40S 1*9, SC 1310 100 10/100 40 External Power Supply 220V AC 0 ~ 50°C SPM-ET43-N60S 1*9, SC 1310 100 10/100 60 External Power Supply 220V AC 0 ~ 50°C SPM-ET45-N80S 1*9, SC 1550 100 10/100 80 External Power Supply 220V AC 0 ~ 50°C SPM-ET45-N100S 1*9, SC 1550 100 10/100 100 External Power Supply 220V AC 0 ~ 50°C SPM-ET45-N120S 1*9, SC 1550 100 10/100 120 External Power Supply 220V AC 0 ~ 50°C SPM-ET435-N20S BIDI 1*9, SC 1310Tx/1550Rx 100 10/100 20 External Power Supply 220V AC 0 ~ 50°C SPM-ET453-N20S BIDI 1*9, SC 1550Tx/1310Rx 100 10/100 20 External Power Supply 220V AC 0 ~ 50°C SPM-ET435-N40S BIDI 1*9, SC 1310Tx/1550Rx 100 10/100 40 External Power Supply 220V AC 0 ~ 50°C SPM-ET453-N40S BIDI 1*9, SC 1550Tx/1310Rx 100 10/100 40 External Power Supply 220V AC 0 ~ 50°C SPM-ET435-N60S BIDI 1*9, SC 1310Tx/1550Rx 100 10/100 60 External Power Supply 220V AC 0 ~ 50°C SPM-ET453-N60S BIDI 1*9, SC 1550Tx/1310Rx 100 10/100 60 External Power Supply 220V AC 0 ~ 50°C SPM-ET445-N80S BIDI 1*9, SC 1490Tx/1550Rx 100 10/100 80 External Power Supply 220V AC 0 ~ 50°C SPM-ET454-N80S BIDI 1*9, SC 1550Tx/1490Rx 100 10/100 80 External Power Supply 220V AC 0 ~ 50°C SPM-ET445-N120S BIDI 1*9, SC 1490Tx/1550Rx 100 10/100 120 External Power Supply 220V AC 0 ~ 50°C SPM-ET454-N120S BIDI 1*9, SC 1550Tx/1490Rx 100 10/100 120 External Power Supply 220V AC 0 ~ 50°C SPM-ET435-N40F BIDI 1*9, FC 1310Tx/1550Rx 100 10/100 40 External Power Supply 220V AC 0 ~ 50°C SPM-EDT453-N40F BIDI 1*9, FC 1550Tx/1310Rx 100 10/100 40 External Power Supply 48V DC 0 ~ 50°C
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
