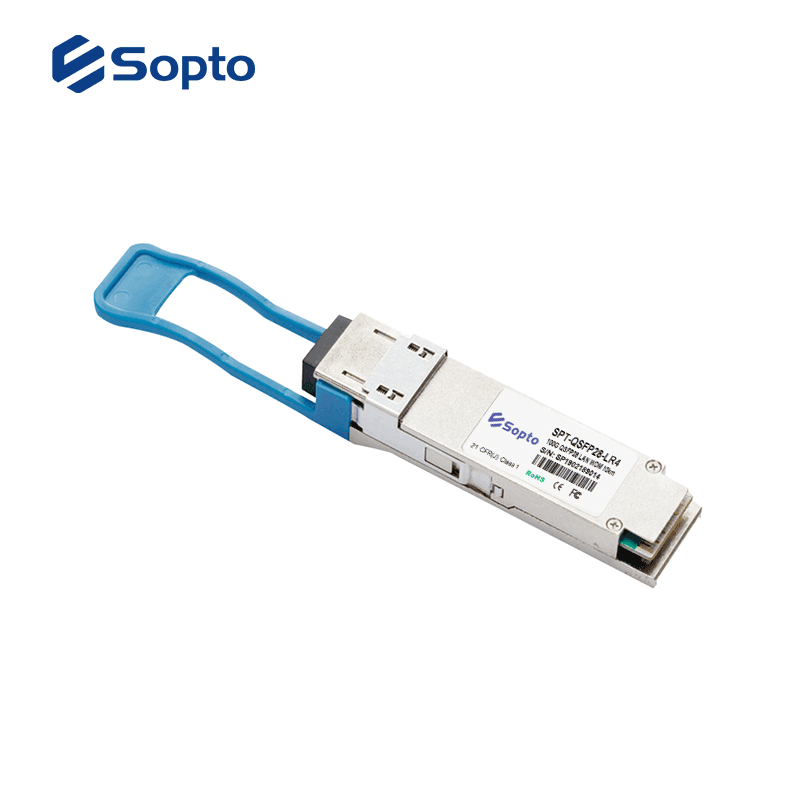

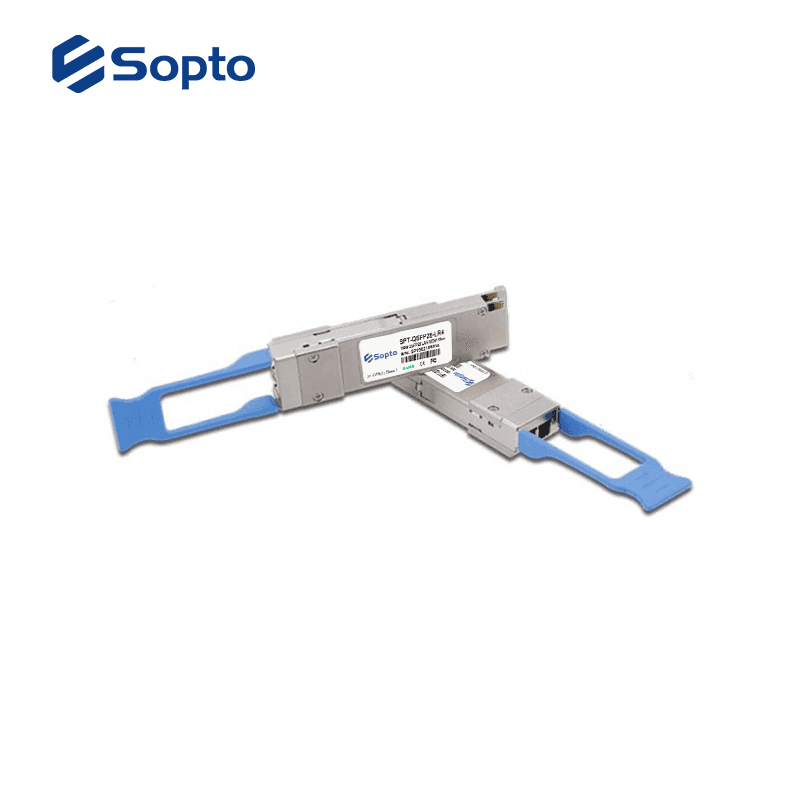

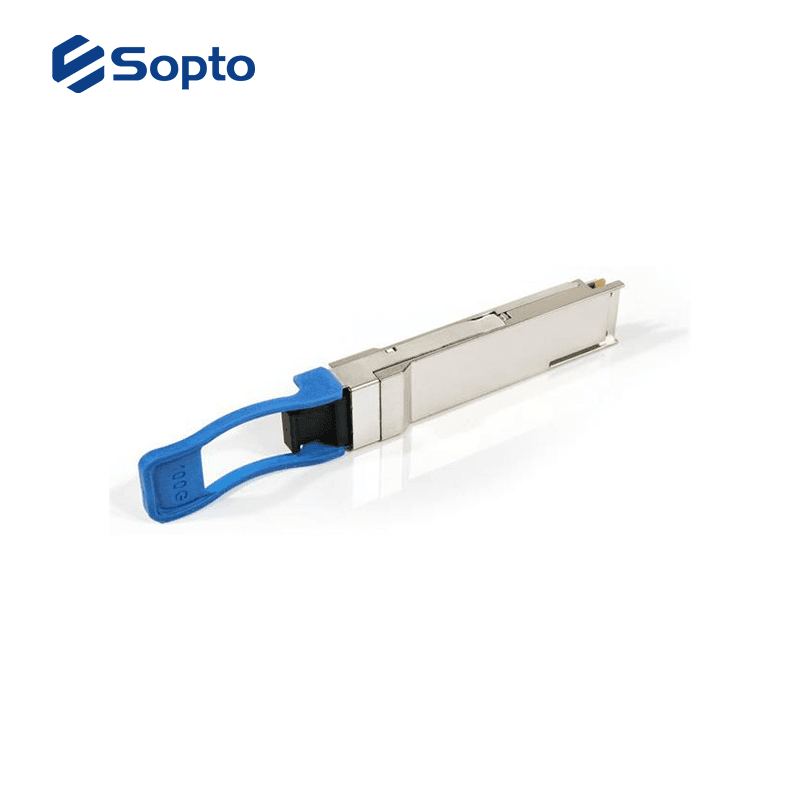

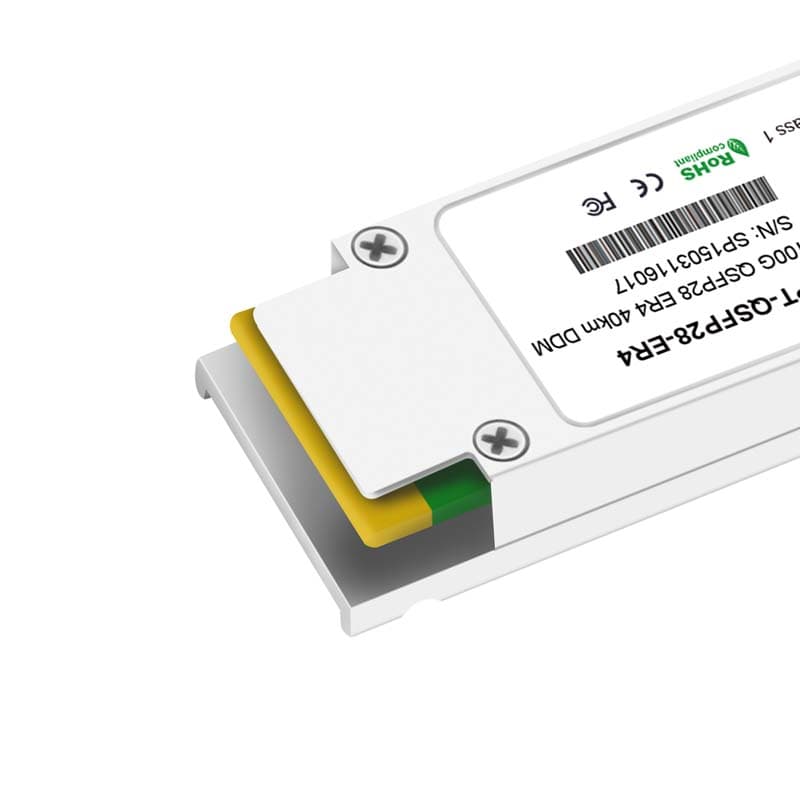

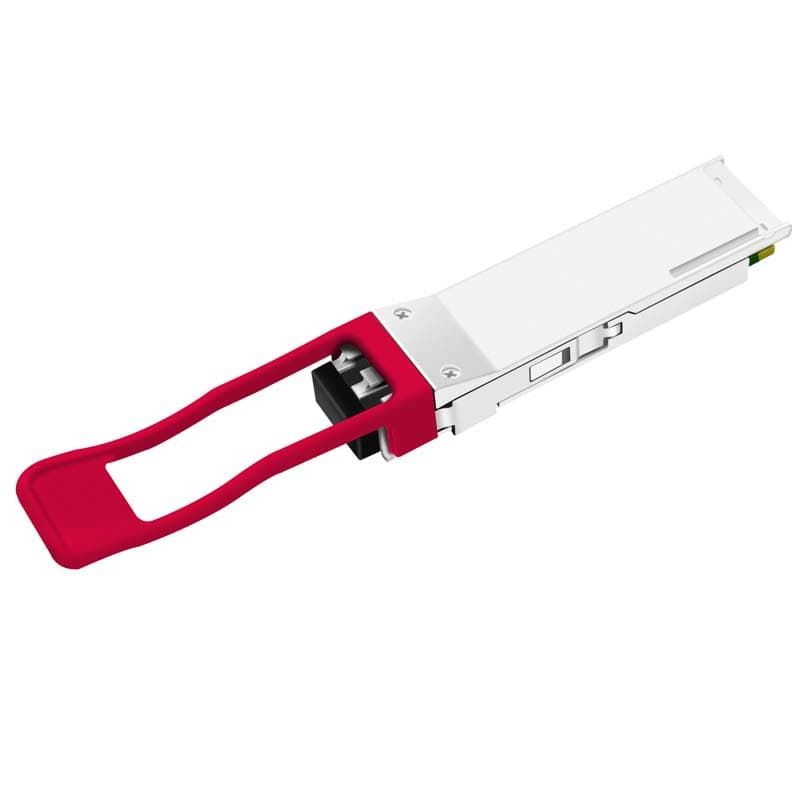

100G QSFP28
SOPTO’s QSFP28 SR4 / QSFP28 100G IR4 / 100GBASE-LR4 QSFP28 Optical transceiver module are designed for use in 100 Gigabit Ethernet links. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 SR4/LR4 module receptacle. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

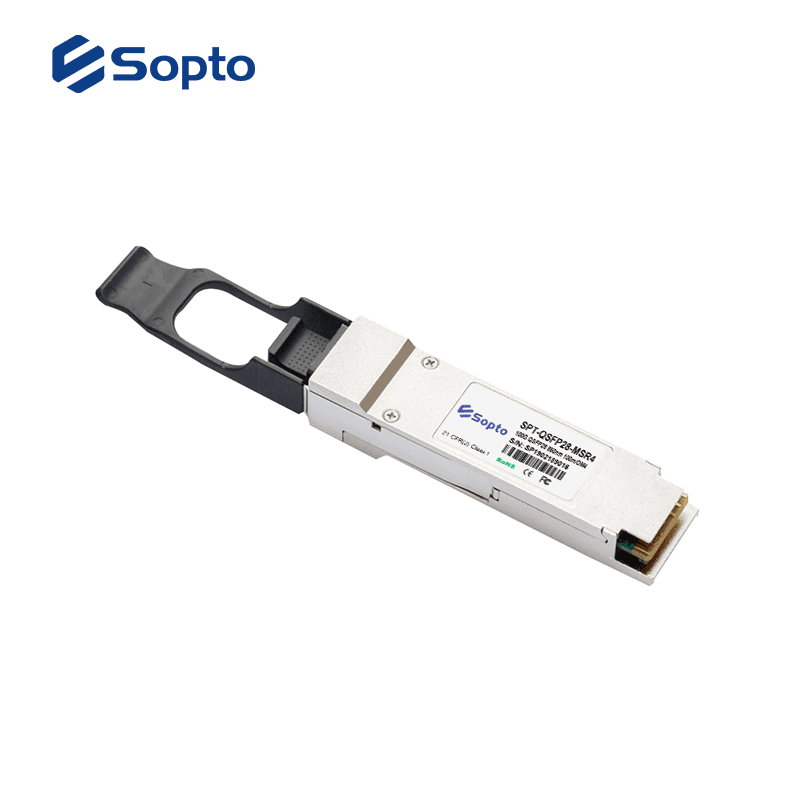

SOPTO’s QSFP28 SR4 / QSFP28 100G IR4 / 100GBASE-LR4 QSFP28 Optical transceiver module are designed for use in 100 Gigabit Ethernet links. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 SR4/LR4 module receptacle. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Single +3.3V power supply ● 4 independent full-duplex channels ● Hot Pluggable QSFP form factor ● Maximum power consumption 3.5W ● Built-in digital diagnostic functions ● Operating Case Temperature: Standard: 0~70°C ● Up to 28Gb/s data rate per channel， Up to 112Gb/s aggregate bit rates ● Transmission distance up to 100m on MMF OM4 and 40km over SMF Compliant ● RoHS-6 ● QSFP28 MSA ● IEEE 802.3 100GBASE-SR4/LR4 or 100G CWDM4 etc PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-QSFP28-MSR4 100G 850nm 100m/OM4 MM MPO/MTP 0~+70 ℃ SPT-QSFP28B89-SR4 100G 850nm/900nm 100m/OM3 150m/OM4 MM Duplex LC 0~+70 ℃ SPT-QSFP28-DR1-500 100G 1304nm-1317nm 500m SM Duplex LC 0~+70 ℃ SPT-QSFP28-MIR4 100G 850nm 2km SM MPO/MTP 0~+70 ℃ SPT-QSFP28-IR4 100G CWDM 2km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR1 100G 1310nm 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR4 100G LAN WDM 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR4S 100G LAN WDM 20km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4 100G LAN WDM 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4+ 100G LAN WDM 60km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4N 100G LAN WDM 60km SM Duplex LC -20~+85 ℃ SPT-QSFP28-ZR4 100G LAN WDM 80km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ZR4+ 100G LAN WDM 100km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ZR4N 100G LAN WDM 100km SM Duplex LC -20~+85 ℃ SPT-Q40G/100G-SR4 40G/100G 850nm 100m/OM3 150m/OM4 MM Duplex LC 0~+70 ℃ SPT-QSFP28-MSR4-D 100G/OTU4 850nm 100m/OM4 MM MPO/MTP 0~+70 ℃ SPT-QSFP28-LR4-D 100G/OTU4 LAN WDM 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4-D 100G/OTU4 LAN WDM 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28B2733-LR SPT-QSFP28B3327-LR 100G 1271nmTx/1331nmRx 1331nmTx/1271nmRx 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28B3129-LRS SPT-QSFP28B2931-LRS 100G 1311nmTx/1291nmRx 1291nmTx/1311nmRx 20km SM Duplex LC 0~+70 ℃ SPT-QSFP28B0904-ER SPT-QSFP28B0409-ER 100G 1309nmTx/1304nmRx 1304nmTx/1309nmRx 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28DX-ZR4 100G C21-C26 80KM SM CS 0~+70 ℃ All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc. If you want to know more about the exact information of the specified transceiver or get price, please contact us. Applications ● Rack to Rack ● Data Center ● Infiniband QDR, DDR and SDR application ● 100G Ethernet Related Article s ● Difference between QSFP2 8 PSM4, QSFP28 SR4 and QSFP28 LR4 ● Fiber Optic Transceiver Module's Selection and Use Skills ● I ntroduction to common package types of optical modules Ordering Information PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-QSFP28-MSR4 100G 850nm 100m/OM4 MM MPO/MTP 0~+70 ℃ SPT-QSFP28B89-SR4 100G 850nm/900nm 100m/OM3 150m/OM4 MM Duplex LC 0~+70 ℃ SPT-QSFP28-DR1-500 100G 1304nm-1317nm 500m SM Duplex LC 0~+70 ℃ SPT-QSFP28-MIR4 100G 850nm 2km SM MPO/MTP 0~+70 ℃ SPT-QSFP28-IR4 100G CWDM 2km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR1 100G 1310nm 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR4 100G LAN WDM 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-LR4S 100G LAN WDM 20km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4 100G LAN WDM 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4+ 100G LAN WDM 60km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4N 100G LAN WDM 60km SM Duplex LC -20~+85 ℃ SPT-QSFP28-ZR4 100G LAN WDM 80km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ZR4+ 100G LAN WDM 100km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ZR4N 100G LAN WDM 100km SM Duplex LC -20~+85 ℃ SPT-Q40G/100G-SR4 40G/100G 850nm 100m/OM3 150m/OM4 MM Duplex LC 0~+70 ℃ SPT-QSFP28-MSR4-D 100G/OTU4 850nm 100m/OM4 MM MPO/MTP 0~+70 ℃ SPT-QSFP28-LR4-D 100G/OTU4 LAN WDM 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28-ER4-D 100G/OTU4 LAN WDM 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28B2733-LR SPT-QSFP28B3327-LR 100G 1271nmTx/1331nmRx 1331nmTx/1271nmRx 10km SM Duplex LC 0~+70 ℃ SPT-QSFP28B3129-LRS SPT-QSFP28B2931-LRS 100G 1311nmTx/1291nmRx 1291nmTx/1311nmRx 20km SM Duplex LC 0~+70 ℃ SPT-QSFP28B0904-ER SPT-QSFP28B0409-ER 100G 1309nmTx/1304nmRx 1304nmTx/1309nmRx 40km SM Duplex LC 0~+70 ℃ SPT-QSFP28DX-ZR4 100G C21-C26 80KM SM CS 0~+70 ℃ Transaction Process Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
Especificaciones técnicas
