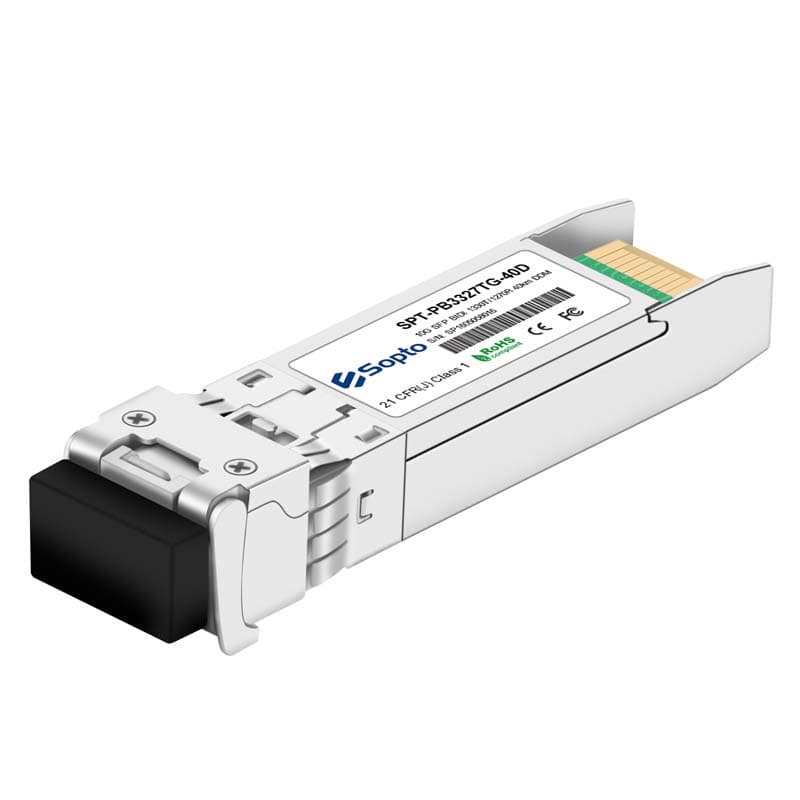

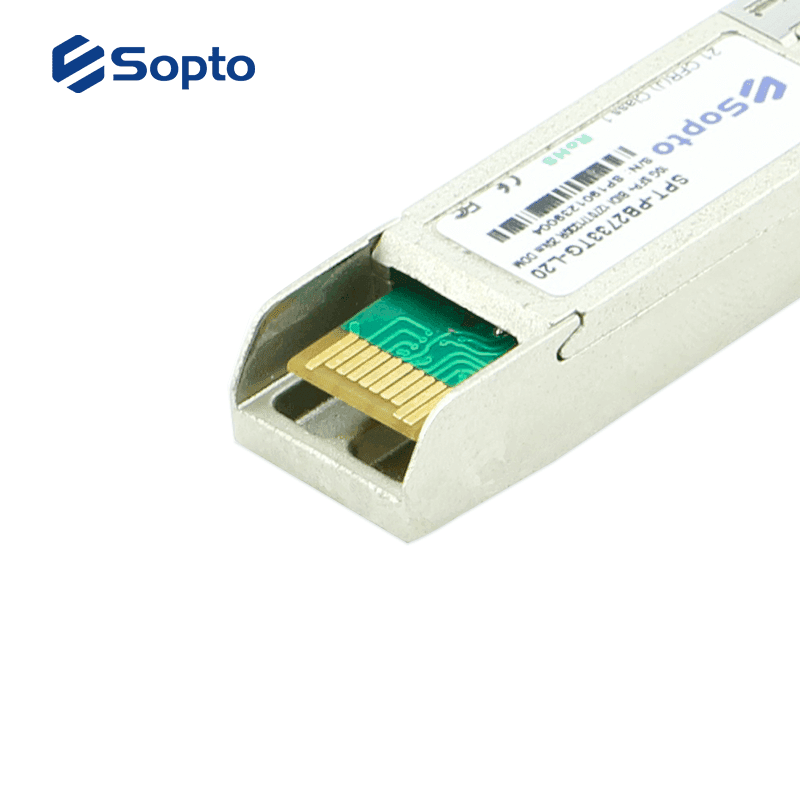

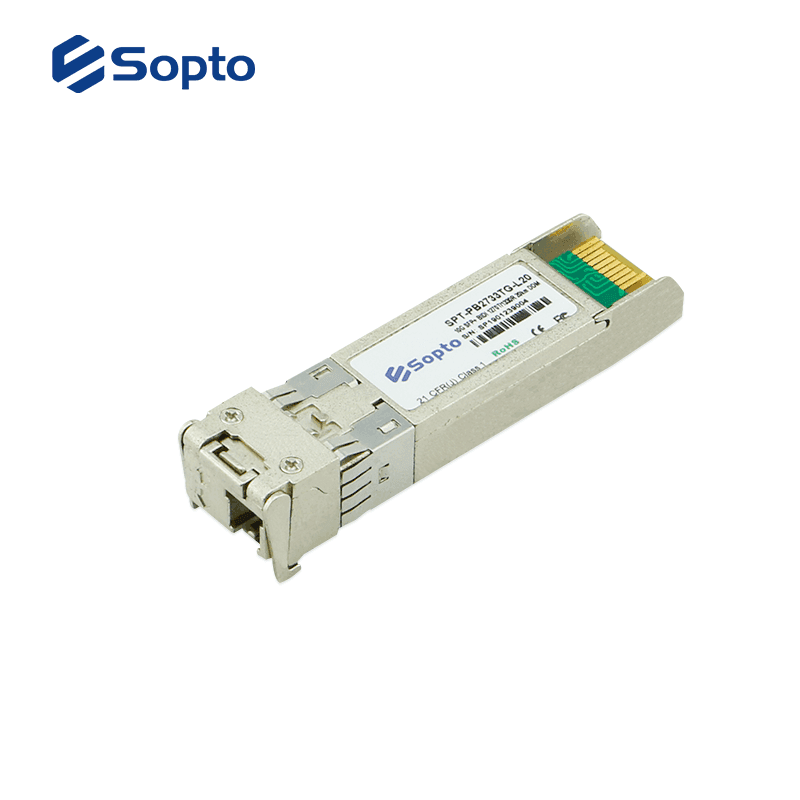

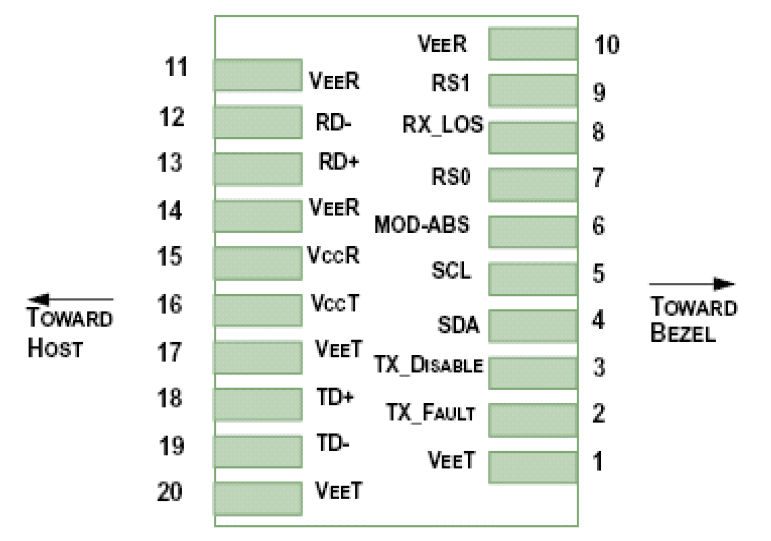

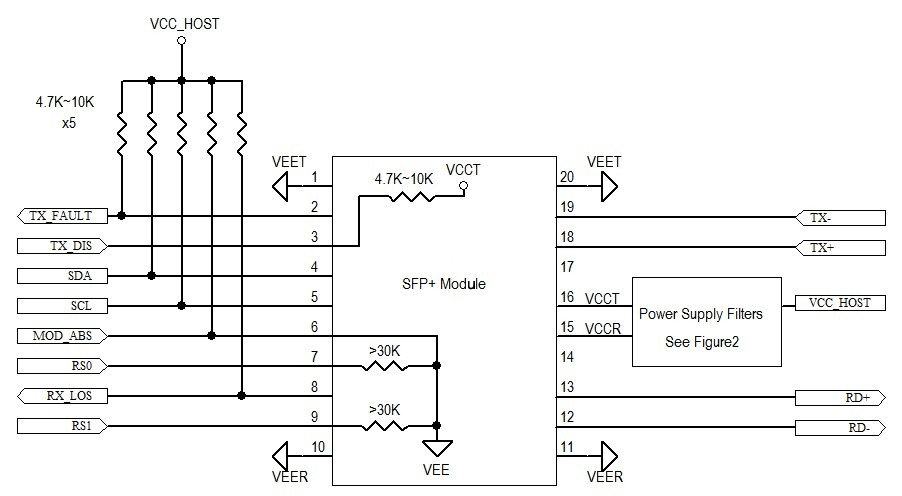

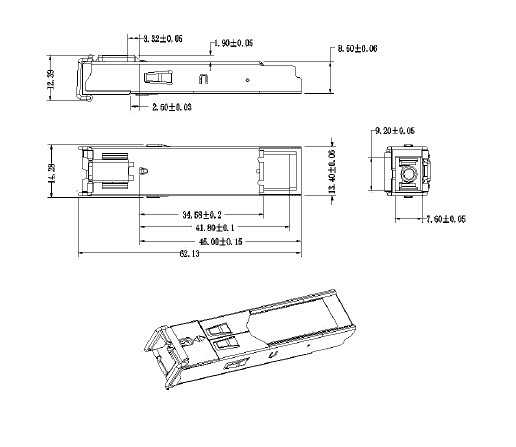

10G BIDI SFP+
10G BIDI SFP+ transceiver modules are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by usually using 1330(1270nm) transmitter and 1270(1330) nm receiver. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

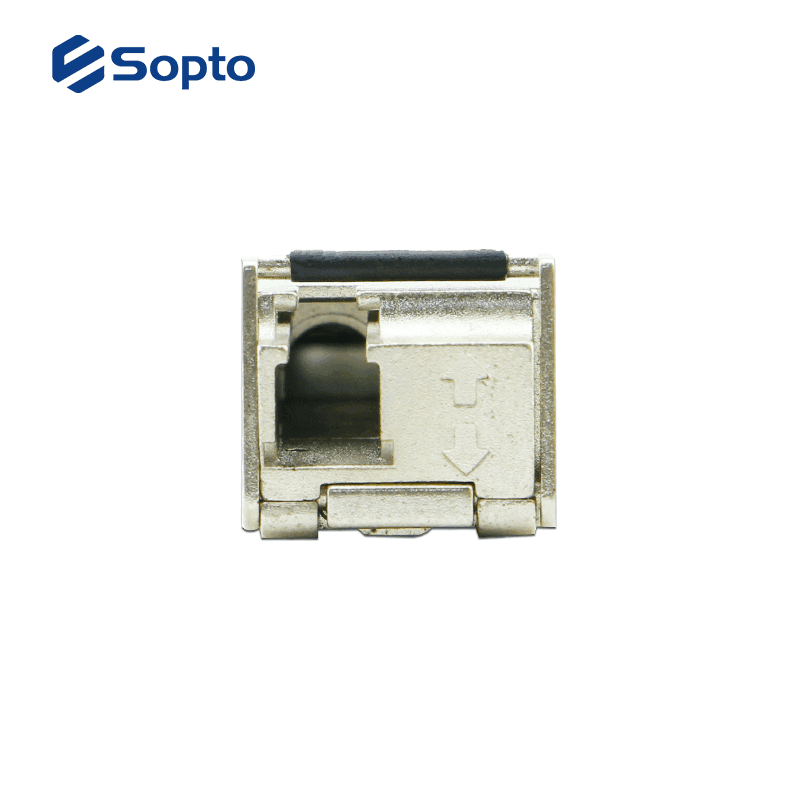

10G BIDI SFP+ transceiver modules are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by usually using 1330(1270nm) transmitter and 1270(1330) nm receiver. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature Product Features ● Simplex LC Interface ● Built-in digital diagnostic functions ● 1270nm&1330nm or 1490nm&1570nm ● Up to 11.3 Gbps Bi-directional Data Links ● Single Fiber Bi-Di SFP+ Optical Transceiver ● Transmission distance up to 80km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C Compliant ● RoHS-6 ● SFF-8472 ● SFP+ MSA ● IEEE 802.3ae 10GBASE-BX or SDH/SONET standards PN Data Rate(Gbps) Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB2733TG-L03 SPT-PB3327TG-L03 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 3km SM Simplex LC 0~+70℃ SPT-PB2733TG-L10 SPT-PB3327TG-L10 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 10km SM Simplex LC 0~+70℃ SPT-PB2733TG-L20 SPT-PB3327TG-L20 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 20km SM Simplex LC 0~+70℃ SPT-PB2733TG-L40 SPT-PB3327TG-L40 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 40km SM Simplex LC 0~+70℃ SPT-PB2733TG-L60 SPT-PB3327TG-L60 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 60km SM Simplex LC 0~+70℃ SPT-PB2733TG-L70 SPT-PB3327TG-L70 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 70km SM Simplex LC 0~+70℃ SPT-PB45TG-L80 SPT-PB54TG-L80 SPT-PB47TG-L80 SPT-PB74TG-L80 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB45TG-L100 SPT-PB54TG-L100 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB2733TG-L03T SPT-PB3327TG-L03T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 3km SM Simplex LC -40~+85℃ SPT-PB2733TG-L10T SPT-PB3327TG-L10T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 10km SM Simplex LC -40~+85℃ SPT-PB2733TG-L20T SPT-PB3327TG-L20T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 20km SM Simplex LC -40~+85℃ SPT-PB2733TG-L40T SPT-PB3327TG-L40T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 40km SM Simplex LC -40~+85℃ SPT-PB2733TG-L60T SPT-PB3327TG-L60T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 60km SM Simplex LC -40~+85℃ SPT-PB45TG-L80T SPT-PB54TG-L80T SPT-PB47TG-L80T SPT-PB74TG-L80T 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC -40~+85℃ Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs Pin Descriptions Figure1.Elecctrical Pin-out Details Pin Symbol Name/Description 1 VEET [1] Transmitter Ground 2 Tx_FAULT [2] Transmitter Fault 3 Tx_DIS [3] Transmitter Disable. Laser output disabled on high or open 4 SDA[2] 2-wire Serial Interface Data Line 5 SCL[2] 2-wire Serial Interface Clock Line 6 MOD_ABS[4] Module Absent. Grounded within the module 7 RS0[5] RS0 for Rate Select: Open or Low = Module supports ≤4.25Gbps High = Module supports 9.95 Gb/s to 10.3125 Gb/s 8 RX_LOS[2] Loss of Signal indication. Logic 0 indicates normal operation 9 RS1[5] No connection required 10 VEER[1] Receiver Ground 11 VEER[1] Receiver Ground 12 RD- Receiver Inverted DATA out. AC Coupled 13 RD+ Receiver DATA out. AC Coupled 14 VEER[1] Receiver Ground 15 VCCR Receiver Power Supply 16 VCCT Transmitter Power Supply 17 VEET [1] Transmitter Ground 18 TD+ Transmitter DATA in. AC Coupled 19 TD- Transmitter Inverted DATA in. AC Coupled 20 VEET [1] Transmitter Ground Notes: 1. Module circuit ground is isolated from module chassis ground within the module. 2. should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V. 3. Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module. 4. Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range 4.7 kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot. 5. RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module. Recommended Interface Circuit Figure2. Host Board Power Supply Filters Circuit Figure3. Host-Module Interface Mechanical Dimensions A : LC Receptacle B : S C Receptacle All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc. If you want to know more about the exact information of the specified transceiver or get price, Please Contact Us>> . Applications ● SONET OC-192 / SDH STM-64 ● OTN ITU-T G.709 ● 10GBASE-SR/LR/ER/ZR Ethernet ● 10X/8X/4X/2X/1X Fibre Channel Related Articles ● What is SFP-10G-LRM Optical Transceiver? ● The difference of SFP 10G SR LR LRM ER and ZR ● What is DDM Function for Fiber Optic Transceiver？ ● F iber Optic Transceiver Module's Selection and Use Skills Ordering Information PN Data Rate(Gbps) Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB2733TG-L03 SPT-PB3327TG-L03 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 3km SM Simplex LC 0~+70℃ SPT-PB2733TG-L10 SPT-PB3327TG-L10 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 10km SM Simplex LC 0~+70℃ SPT-PB2733TG-L20 SPT-PB3327TG-L20 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 20km SM Simplex LC 0~+70℃ SPT-PB2733TG-L40 SPT-PB3327TG-L40 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 40km SM Simplex LC 0~+70℃ SPT-PB2733TG-L60 SPT-PB3327TG-L60 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 60km SM Simplex LC 0~+70℃ SPT-PB2733TG-L70 SPT-PB3327TG-L70 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 70km SM Simplex LC 0~+70℃ SPT-PB45TG-L80 SPT-PB54TG-L80 SPT-PB47TG-L80 SPT-PB74TG-L80 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB45TG-L100 SPT-PB54TG-L100 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB2733TG-L03T SPT-PB3327TG-L03T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 3km SM Simplex LC -40~+85℃ SPT-PB2733TG-L10T SPT-PB3327TG-L10T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 10km SM Simplex LC -40~+85℃ SPT-PB2733TG-L20T SPT-PB3327TG-L20T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 20km SM Simplex LC -40~+85℃ SPT-PB2733TG-L40T SPT-PB3327TG-L40T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 40km SM Simplex LC -40~+85℃ SPT-PB2733TG-L60T SPT-PB3327TG-L60T 9.95~11.3 1270nmTx/1330nmRx 1330nmTx/1270nmRx 60km SM Simplex LC -40~+85℃ SPT-PB45TG-L80T SPT-PB54TG-L80T SPT-PB47TG-L80T SPT-PB74TG-L80T 9.95~11.3 1490nmTx/1550nmRx 1550nmTx/1490nmRx 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC -40~+85℃
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
