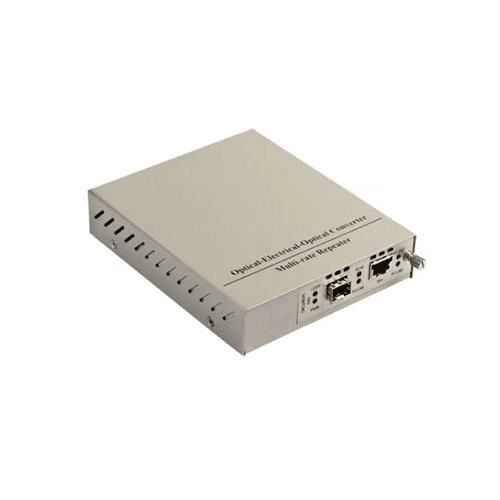

10G Media Converter
The SPM-ITGX Series is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ supports a wide variety of 10GE SFP+ or XFP fiber
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
The SPM-ITGX Series is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ supports a wide variety of 10GE SFP+ or XFP fiber Feature ● Support Jumbo Frame ● Transparent Transport and very low delay ● Support ITUT prescribed DWDM/CWDM wavelength ● Support Loopback test function ● Support hot plugging ● Full State Led display ● Easy installation 10G Media Converter Panel Specific parameters Specification Transmission mode Technical Indexes Transmission Speed 10Gb/s Protocols IEEE802.3an(10Gbase-T); IEEE802.3ae(10Gbase-SR/LR/ER/ZR) Access Type 10G LAN Interface Type RJ45 To/From SFP+ Or RJ45 To/From XFP Transmission Distance SFP+ module: Up to 80Km XFP module: Up to 80Km 10Gbase-T: 100meters Cat .6a cable Maximum Packet Forwarding Rate 14,880,950/S Power Supply Specifications And Dimensions AC:100V~240V 50~60HZ DC:40V~50V 50~60HZ Power consumption≤6W （ without module ） External AC-DC 20W communication module power 156mm * 128mm * 32mm Applications ● LAN/WAN ● Access Control Systems ● 10Gbps Ethernet ● High Speed Computer Links Fast Ethernet application Gigabit Ethernet Application Ordering Information Part Number Fiber Port type Wavelength (nm) Fiber Port Rate (bps) RJ45 Rate (Mbps) Distance (km) Power Supply Temp. SPM-ITGX-PX SFP+ slot - 10G 10/100/1000/10000 - Internal 220V AC 0 ~ 50°C SPM-ITGX-XX XFP slot - 10G 10/100/1000/10000 - Internal 220V AC 0 ~ 50°C
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
