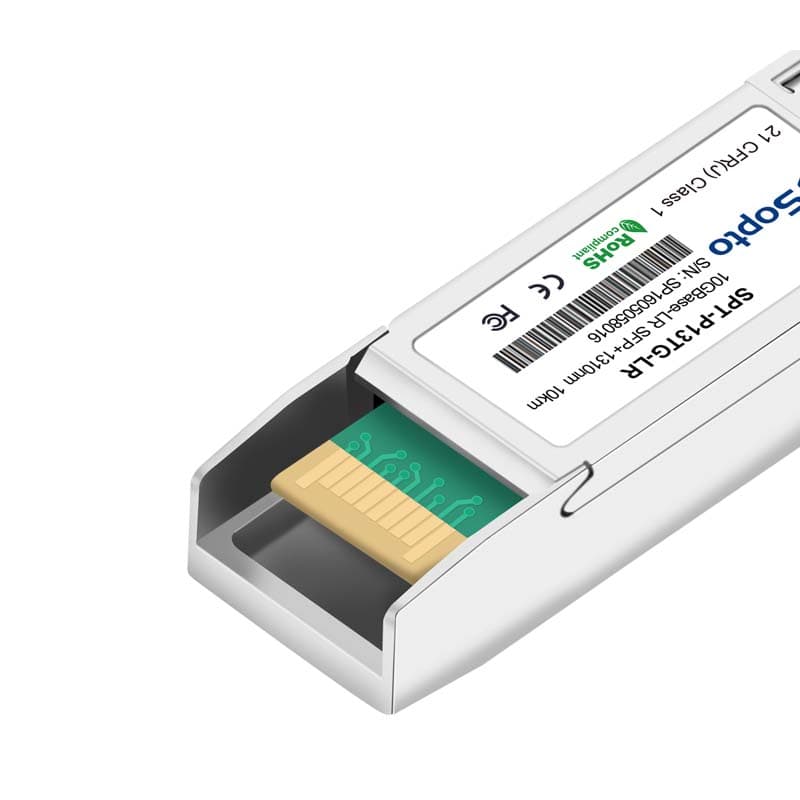

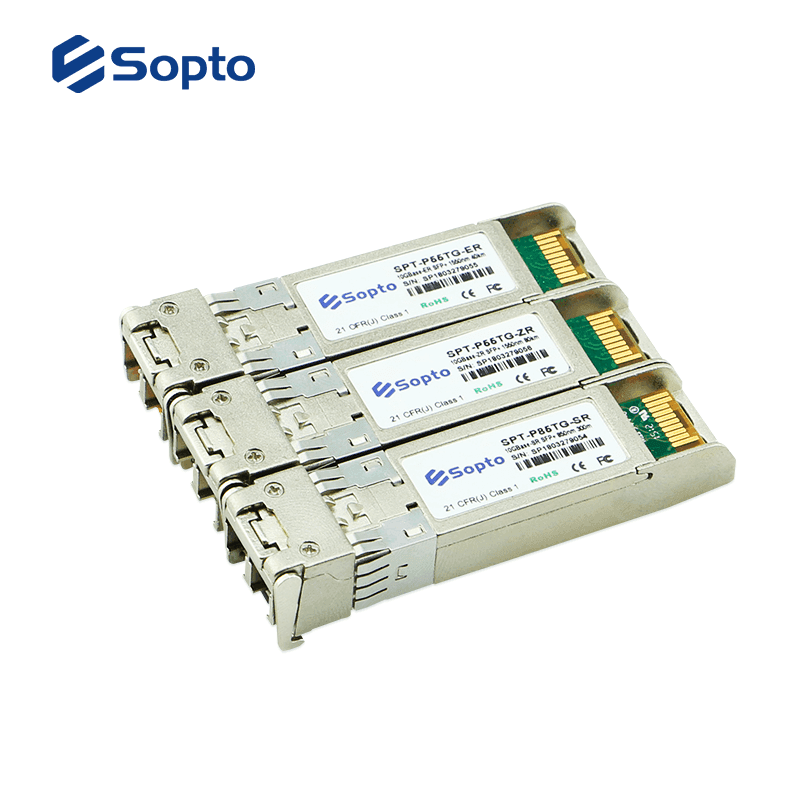

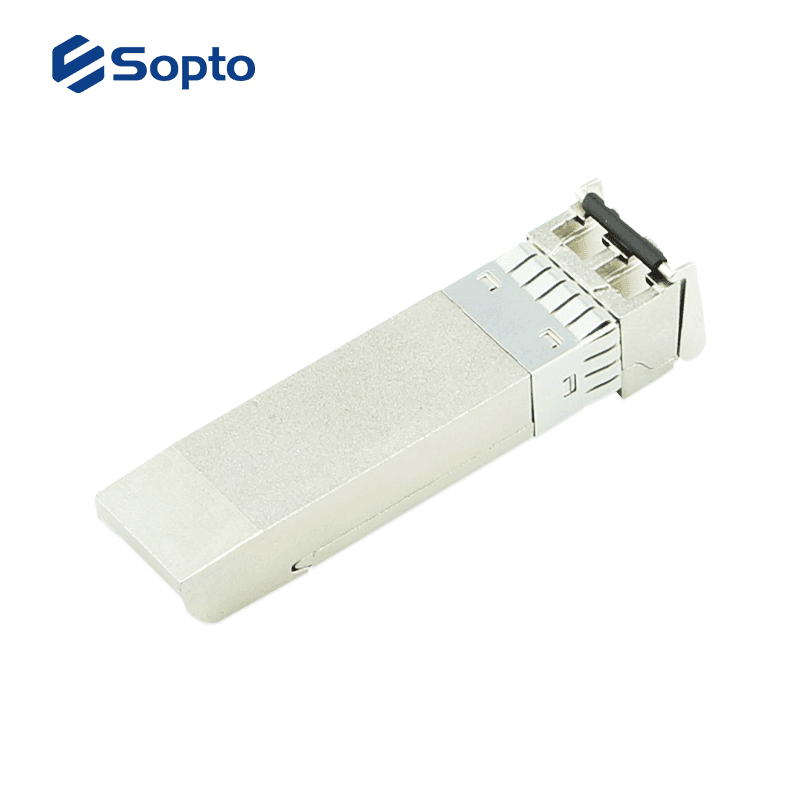

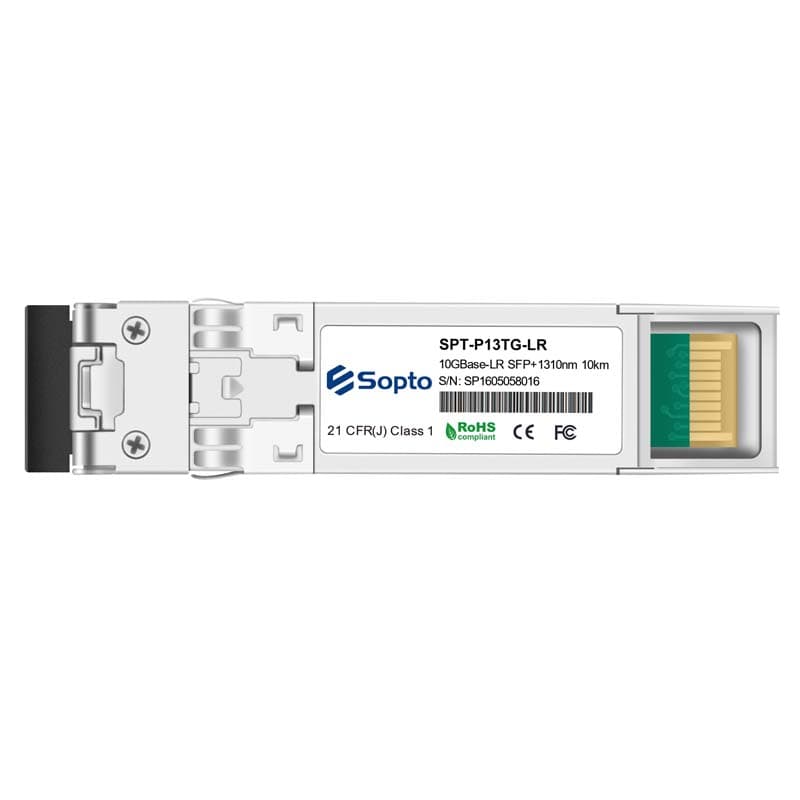

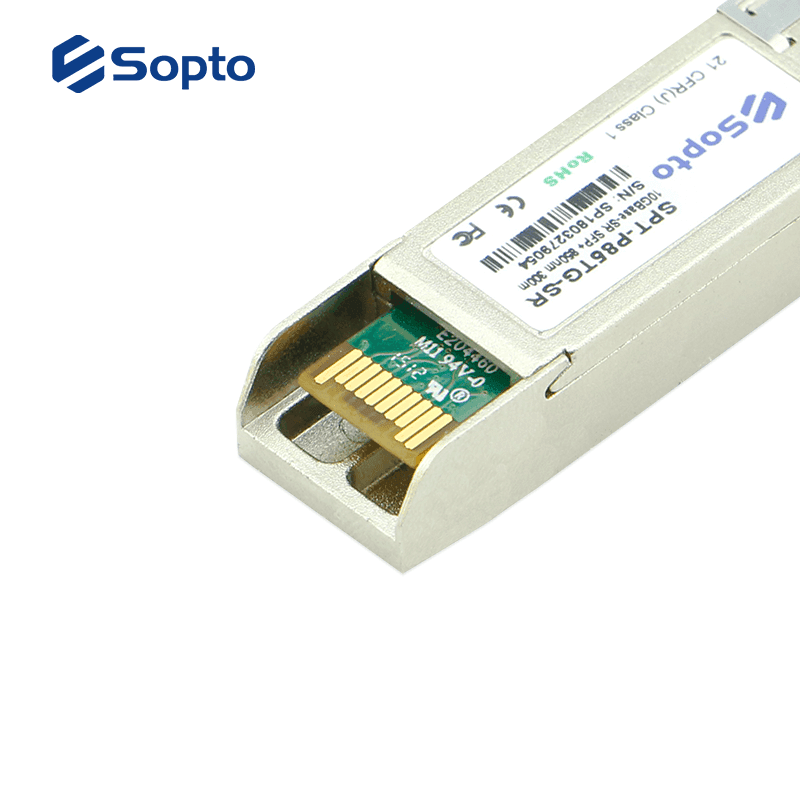

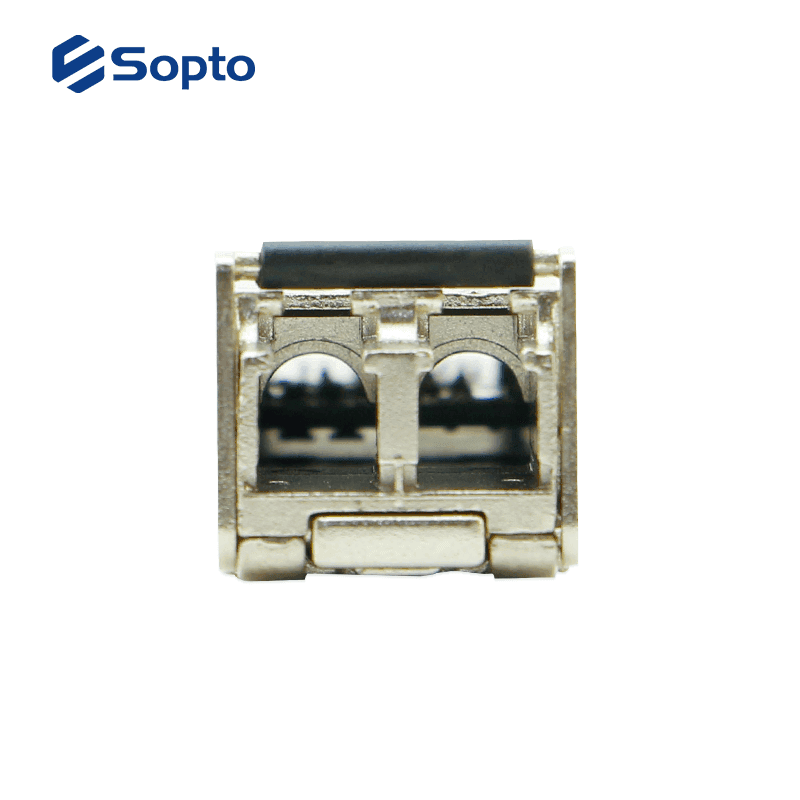

10G SFP+ SR/ER/LR/ZR
Soptos 10G SFP+ transceivers are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-LRM/SR/IR/LR/ER/ZR , 1000 Base-SX Ethernet. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

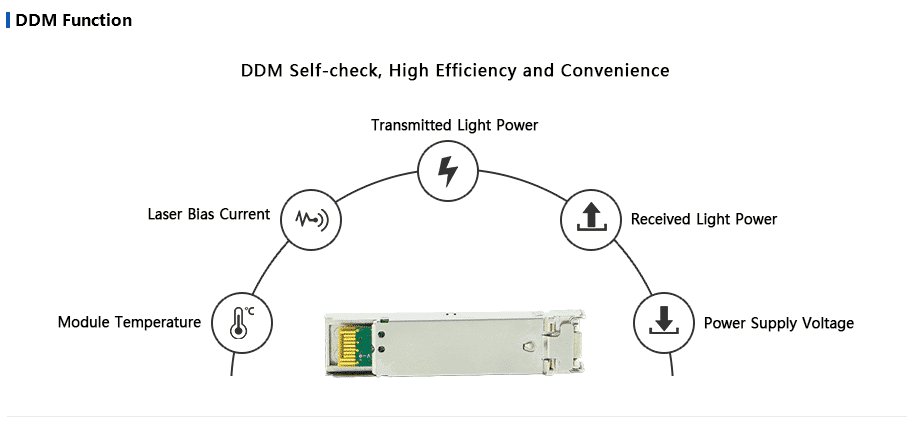

Soptos 10G SFP+ transceivers are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-LRM/SR/IR/LR/ER/ZR , 1000 Base-SX Ethernet. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature Compliant ● RoHS-6 ● SFP+ MSA ● SFF-8431 SFF-8432 ● Laser Class 1 IEC / CDRH compliant ● 1G/10G Ethernet compliance，Compliant with IEEE 802.3ae 10GBASE Product Features ● CDR both at TX and RX side ● Built-in digital diagnostic functions ● Supports Multi Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates ● Transmission distance up to 300m on MMF OM3 and 120km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc. PN Distance Wavelength Fiber Mode Interface Temp. DDM SFP-10G-SR 300m 850nm Multimode Duplex LC 0-70℃ D SFP-10G-LR 10km 1310nm Single mode Duplex LC 0-70℃ D SFP-10G-LRM 220m 1310nm Multimode Duplex LC 0-70℃ D SFP-10G-ER 40km 1550nm Single mode Duplex LC 0-70℃ D SFP-10G-ZR 70km-80km 1550nm Single mode Duplex LC 0-70℃ D Sopto Hot Model PN Description Details SPT-P13TG-LR(S) 10Gbps SFP+ Optical Transceiver,10km or 20km Reach, Duplex LC, 1310nm DFB transmitter, Single mode, Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C. PDF SPT-P85TG-SR 10Gbps SFP+ Optical Transceiver, 300m Reach, Hot Pluggable ,Duplex LC, 850nm VCSEL transmitter, Multi mode ,Operating case temperature: 0 to 70℃. PDF If you want to know more about the exact information of the specified transceiver or get price, please contact us. Applications Application ● OTN ITU-T G.709 ● 10X/8X/4X/2X/1X Fibre Channel ● SONET OC-192 / SDH STM-64 ● 10GBASE-LRM/SR/IR/LR/ER/ZR Ethernet R elated Articles ● What is SFP-10G-LRM Optical Transceiver? ● The difference of SFP 10G SR LR LRM ER and ZR ● What is DDM Function for Fiber Optic Transceiver？ ● F iber Optic Transceiver Module's Selection and Use Skills Ordering Information PN Data Rate (Gbps) Distance Fiber Output Power (dBm) Sensitivity (dBm) Interface Temp. DDM SPT-P31TG-LRM 9.95~11.3 220m MM -6～0.5 -12.6 Duplex LC 0 to 70 ℃ D SPT-P85TG-SR 9.95~11.3 300m/OM3 MM -5 ～- 1 -11 Duplex LC 0 to 70 ℃ D SFP-P13TG-IR 9.95~11.3 2km SM -8.2 ～ 0.5 -14.5 Duplex LC 0 to 70 ℃ D SFP-P13TG-LR 9.95~11.3 10km SM -8.2 ～ 0.5 -14.5 Duplex LC 0 to 70 ℃ D SFP-P13TG-LRS 9.95~11.3 20km SM -8.2 ～ 0.5 -14.5 Duplex LC 0 to 70 ℃ D SPT-P55TG-ER 9.95~11.3 40km SM 0 ～ 3 -17 Duplex LC 0 to 70 ℃ D SPT-P55TG-ERS 9.95~11.3 60km SM 0 ～ 4 -22 Duplex LC 0 to 70 ℃ D SPT-P55TG-ZR 9.95~11.3 80km SM 0 ～ 5 -23 Duplex LC 0 to 70 ℃ D SPT-P55TG-ZR+ 9.95~11.3 100km SM 1 ～ 5 -24 Duplex LC 0 to 70 ℃ D SPT-P55TG-ZR++ 9.95~11.3 120km SM 1 ～ 5 -24 Duplex LC 0 to 70 ℃ D Transaction Process Sopto will NOT charge any customer with Hidden fees on their order. All fees and charges will be calculated and displayed to you after you confirm the order Purchasers are welcome to provide their own courier collect a/c for freight charge incurred. Should no courier collect a/c be available, international shipments are delivered normally through FedEx, DHL, TNT or UPS unless otherwise specified.
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
