155M~1.25G BIDI SFP

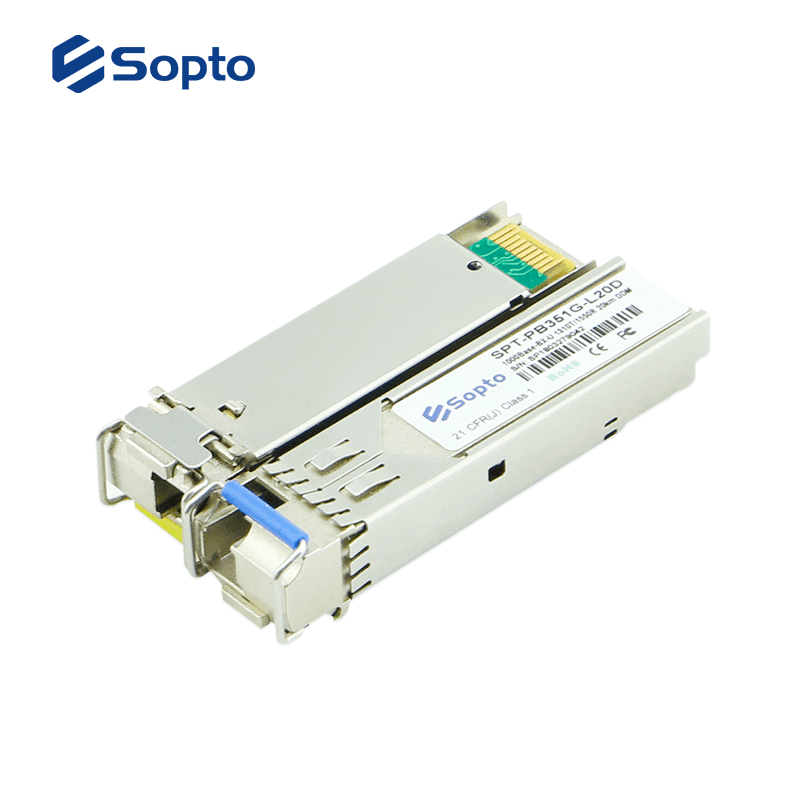

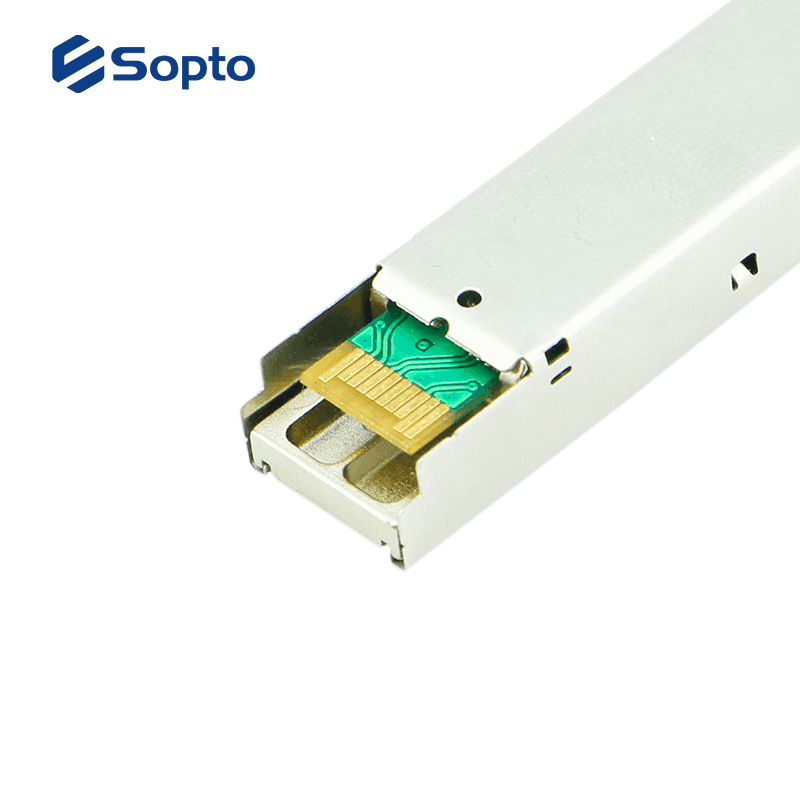

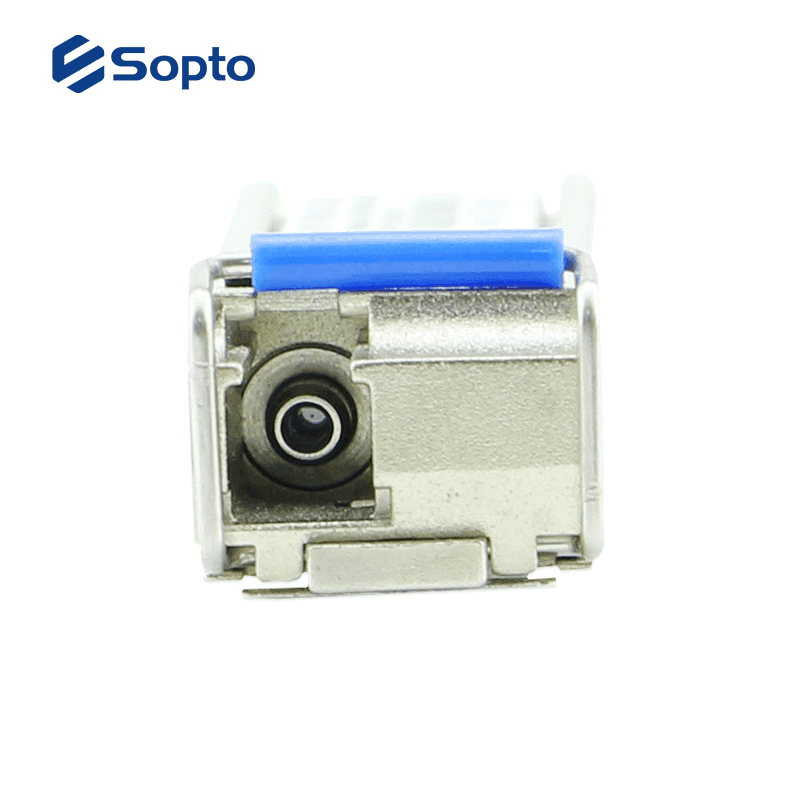

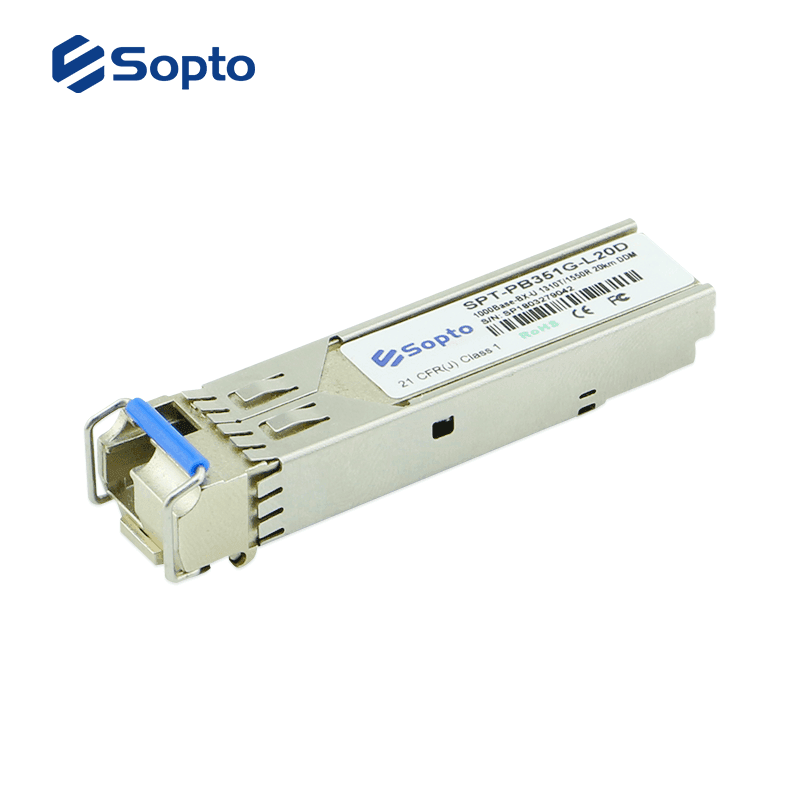

Name: 155M~1.25G BIDI SFP
Brand: SOPTO

Cotizar

Confirma disponibilidad, instalación y entrega con un asesor.

Descripción

SOPTO’s BIDI SFP is a series of optical transceiver modules operating at single single mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Simplex SC or LC Interface ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Transmission distance up to 150km over SMF ● Supports data rates from 100Mb/s to 1.25Gb/s ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C Compliant ● RoHS-6 ● SFP MSA ● FC-PI 13.0 ● IEEE Std 802.3 PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB3503-L03 SPT-PB5303-L03 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB3503-L10 SPT-PB5303-L10 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB3503-L40 SPT-PB5303-L40 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC 0~+70℃ SPT-PB3503-L03D SPT-PB5303-L03D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB3503-L10D SPT-PB5303-L10D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB3503-L20D SPT-PB5303-L(S)20D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB3503-L(S)40D SPT-PB5303-L(S)40D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC 0~+70℃ SPT-PB3503-L10TD SPT-PB5303-L10TD 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC -40~+85℃ SPT-PB4503-L80 SPT-PB5403-L80 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB4503-L120 SPT-PB5403-L120 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC 0~+70℃ SPT-PB4503-L80D SPT-PB5403-L80D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB4503-L100D SPT-PB5403-L100D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB4503-L120D SPT-PB5403-L120D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC 0~+70℃ PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB351G-L01D SPT-PB531G-L01D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 1km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L02D SPT-PB531G-L02D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 2km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)03D SPT-PB531G-L(S)03D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)10D SPT-PB531G-L(S)10D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)20D SPT-PB531G-L(S)20D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)40D SPT-PB531G-L(S)40D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L60D SPT-PB531G-L60D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 60km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L03TD SPT-PB531G-L03TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L(S)10TD SPT-PB531G-L(S)10TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L(S)20TD SPT-PB531G-L(S)20TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L40TD SPT-PB531G-L40TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC -40~+85℃ SPT-PB341G-L03D SPT-PB431G-L03D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB341G-L10D SPT-PB431G-L10D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB341G-L(S)20D SPT-PB431G-L(S)20D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB341G-L40D SPT-PB431G-L40D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 40km SM Simplex LC 0~+70℃ SPT-PB341G-L10TD SPT-PB431G-L10TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 10km SM Simplex LC -40~+85℃ SPT-PB341G-L20TD SPT-PB431G-L20TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 20km SM Simplex LC -40~+85℃ SPT-PB341G-L40TD SPT-PB431G-L40TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 40km SM Simplex LC -40~+85℃ SPT-PB451G-L60D SPT-PB541G-L60D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 60km SM Simplex LC 0~+70℃ SPT-PB451G-L(S)80D SPT-PB541G-L(S)80D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC or SC 0~+70℃ SPT-PB451G-L100D SPT-PB541G-L100D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB451G-L(S)120D SPT-PB541G-L(S)120D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC or SC 0~+70℃ SPT-PB451G-L150D SPT-PB541G-L150D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 150km SM Simplex LC 0~+70℃ SPT-PB451G-L40TD SPT-PB541G-L40TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 40km SM Simplex LC -40~+85℃ SPT-PB451G-L80TD SPT-PB541G-L80TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC -40~+85℃ SPT-PB451G-L100TD SPT-PB541G-L100TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC -40~+85℃ SPT-PB451G-L120TD SPT-PB541G-L120TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC -40~+85℃ SPT-PB471G-L80TD SPT-PB741G-L80TD 1.25 Gbps 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC -40~+85℃ SPT-PB171G-L80D 1.25 Gbps 1510nmTx/1570nmRx 80km SM Simplex LC 0~+70℃ SPT-PB171G-L160D 1.25 Gbps 1510nmTx/1570nmRx 160km SM Simplex LC 0~+70℃ SPT-PB171G-L/S120D 1.25 Gbps 1510nmTx/1570nmRx 120km SM Simplex LC or SC 0~+70℃ Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs ---------------------------------------------------------------------------------------------------------------------------------- Product Specifications SPT-PBXX-X10(20T)D2023.pdf SPT-PBXG-X40D2023.pdf SPT-PBXXG-X10(20)D 2023.pdf Applications ● Fast Ethernet ● Gigabit Ethernet ● 1X Fibre Channel ● SONET/SDH OC-3/STM-1 ● SONET/SDH OC-12/STM-4 ● SONET/SDH OC-24/STM-8 Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB3503-L03 SPT-PB5303-L03 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB3503-L10 SPT-PB5303-L10 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB3503-L40 SPT-PB5303-L40 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC 0~+70℃ SPT-PB3503-L03D SPT-PB5303-L03D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB3503-L10D SPT-PB5303-L10D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB3503-L20D SPT-PB5303-L(S)20D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB3503-L(S)40D SPT-PB5303-L(S)40D 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC 0~+70℃ SPT-PB3503-L10TD SPT-PB5303-L10TD 155M 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC -40~+85℃ SPT-PB4503-L80 SPT-PB5403-L80 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB4503-L120 SPT-PB5403-L120 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC 0~+70℃ SPT-PB4503-L80D SPT-PB5403-L80D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC 0~+70℃ SPT-PB4503-L100D SPT-PB5403-L100D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB4503-L120D SPT-PB5403-L120D 155M 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC 0~+70℃ PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-PB351G-L01D SPT-PB531G-L01D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 1km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L02D SPT-PB531G-L02D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 2km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)03D SPT-PB531G-L(S)03D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)10D SPT-PB531G-L(S)10D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)20D SPT-PB531G-L(S)20D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L(S)40D SPT-PB531G-L(S)40D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L60D SPT-PB531G-L60D 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 60km SM Simplex LC or SC 0~+70℃ SPT-PB351G-L03TD SPT-PB531G-L03TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 3km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L(S)10TD SPT-PB531G-L(S)10TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 10km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L(S)20TD SPT-PB531G-L(S)20TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 20km SM Simplex LC or SC -40~+85℃ SPT-PB351G-L40TD SPT-PB531G-L40TD 1.25 Gbps 1310nmTx/1550nmRx 1550nmTx/1310nmRx 40km SM Simplex LC or SC -40~+85℃ SPT-PB341G-L03D SPT-PB431G-L03D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 3km SM Simplex LC 0~+70℃ SPT-PB341G-L10D SPT-PB431G-L10D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 10km SM Simplex LC 0~+70℃ SPT-PB341G-L(S)20D SPT-PB431G-L(S)20D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 20km SM Simplex LC or SC 0~+70℃ SPT-PB341G-L40D SPT-PB431G-L40D 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 40km SM Simplex LC 0~+70℃ SPT-PB341G-L10TD SPT-PB431G-L10TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 10km SM Simplex LC -40~+85℃ SPT-PB341G-L20TD SPT-PB431G-L20TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 20km SM Simplex LC -40~+85℃ SPT-PB341G-L40TD SPT-PB431G-L40TD 1.25 Gbps 1310nmTx/1490nmRx 1490nmTx/1310nmRx 40km SM Simplex LC -40~+85℃ SPT-PB451G-L60D SPT-PB541G-L60D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 60km SM Simplex LC 0~+70℃ SPT-PB451G-L(S)80D SPT-PB541G-L(S)80D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC or SC 0~+70℃ SPT-PB451G-L100D SPT-PB541G-L100D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC 0~+70℃ SPT-PB451G-L(S)120D SPT-PB541G-L(S)120D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC or SC 0~+70℃ SPT-PB451G-L150D SPT-PB541G-L150D 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 150km SM Simplex LC 0~+70℃ SPT-PB451G-L40TD SPT-PB541G-L40TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 40km SM Simplex LC -40~+85℃ SPT-PB451G-L80TD SPT-PB541G-L80TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 80km SM Simplex LC -40~+85℃ SPT-PB451G-L100TD SPT-PB541G-L100TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 100km SM Simplex LC -40~+85℃ SPT-PB451G-L120TD SPT-PB541G-L120TD 1.25 Gbps 1490nmTx/1550nmRx 1550nmTx/1490nmRx 120km SM Simplex LC -40~+85℃ SPT-PB471G-L80TD SPT-PB741G-L80TD 1.25 Gbps 1490nmTx/1570nmRx 1570nmTx/1490nmRx 80km SM Simplex LC -40~+85℃ SPT-PB171G-L80D 1.25 Gbps 1510nmTx/1570nmRx 80km SM Simplex LC 0~+70℃ SPT-PB171G-L160D 1.25 Gbps 1510nmTx/1570nmRx 160km SM Simplex LC 0~+70℃ SPT-PB171G-L/S120D 1.25 Gbps 1510nmTx/1570nmRx 120km SM Simplex LC or SC 0~+70℃

Especificaciones técnicas

Consulta las características del producto con uno de nuestros asesores.

Descargar ficha técnica · SPT-PBXX-X10_20T_D2023.pdf Descargar ficha técnica · SPT-PBXG-X40D2023.pdf Descargar ficha técnica · SPT-PBXXG-X10_20_D_2023.pdf
