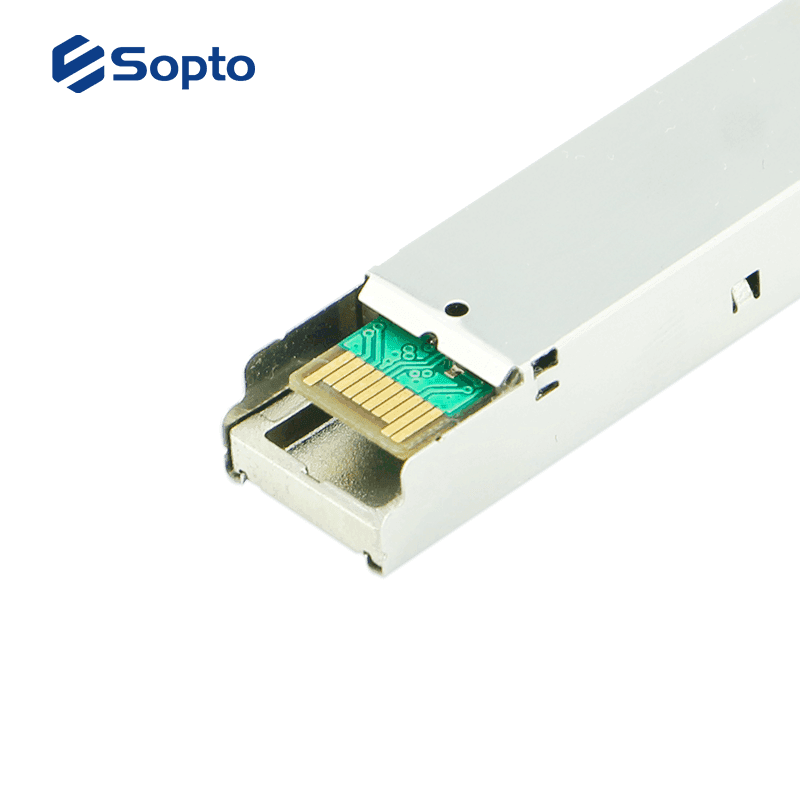

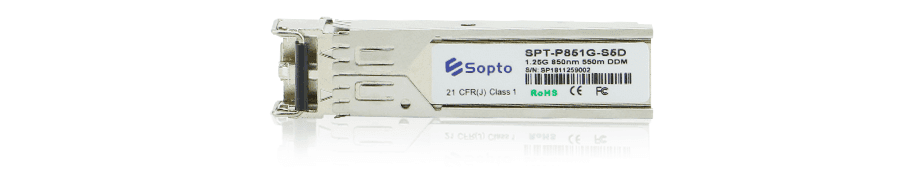

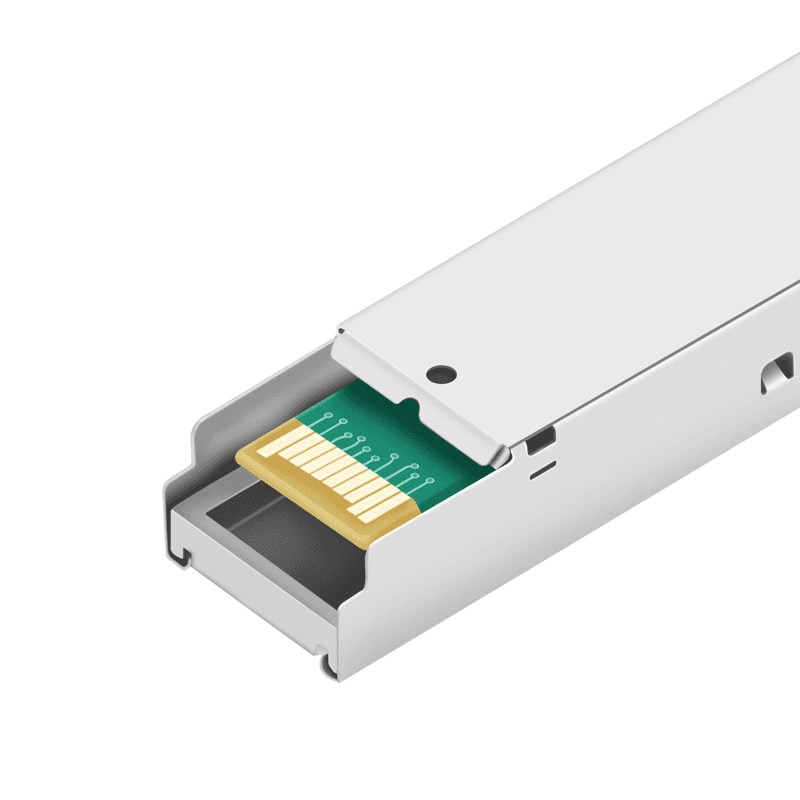

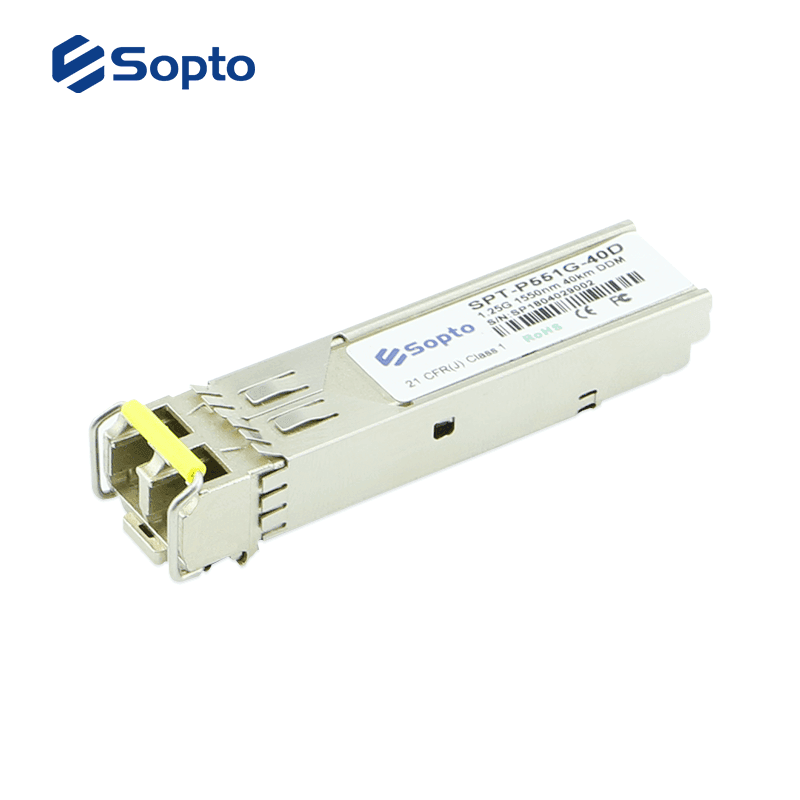

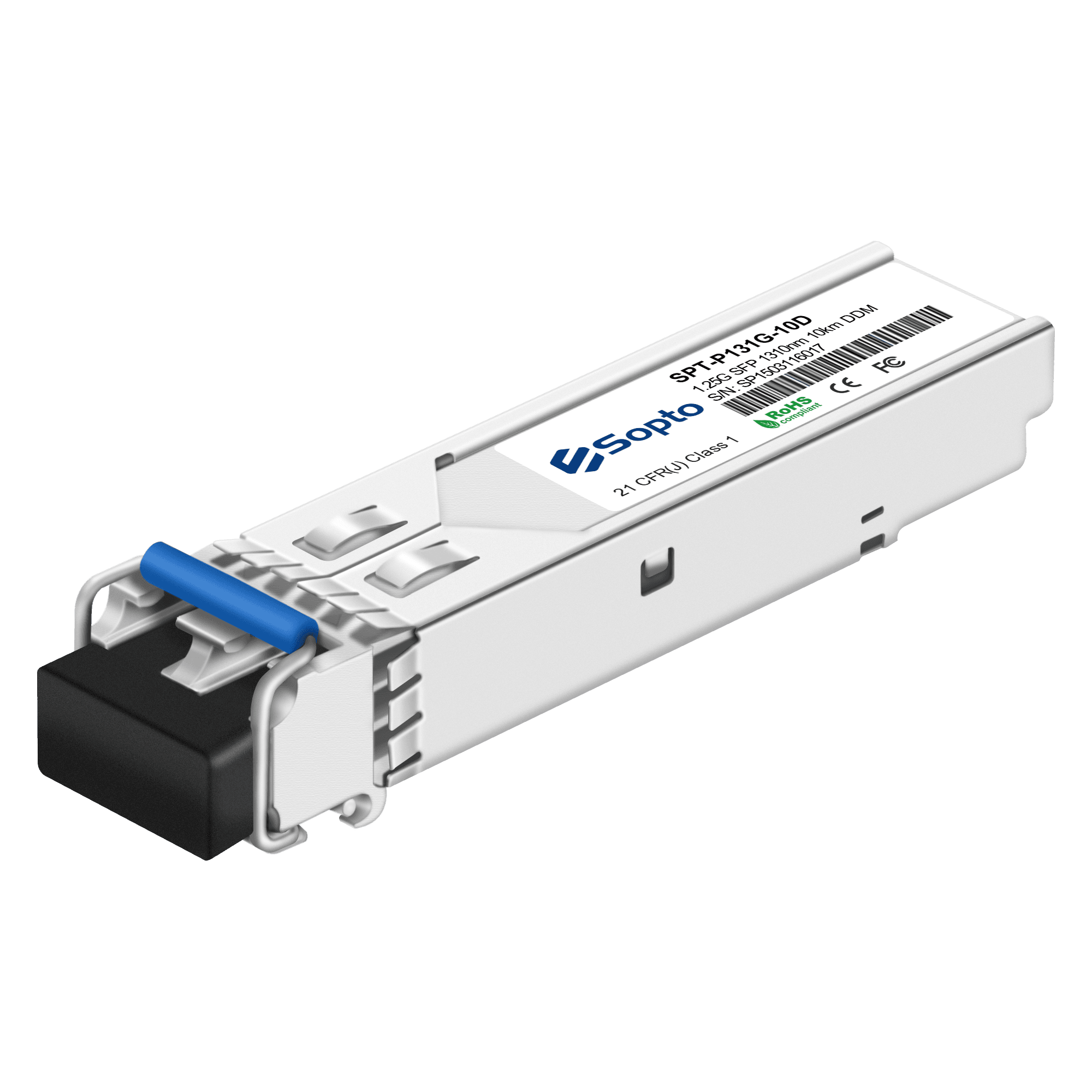

155M~1.25G SFP
SOPTO’s Standard SFP is a series of optical transceiver modules operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers. They are designed for use in Fast Ethernet, Gigabit Ethernet, Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell, MikroTik etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s Standard SFP is a series of optical transceiver modules operating at 850nm, 1310nm, 1550nm wavelengths over dual fibers. They are designed for use in Fast Ethernet, Gigabit Ethernet, Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell, MikroTik etc.) compatible fiber optic transceivers. Feature ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Supports data rates from 100Mb/s to 1.25Gb/s ● Transmission distance up to 550m on MMF OM2 and 150km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-P1303-15 155M 1310nm 15km SM Duplex LC 0~+70℃ SPT-P1303-40 155M 1310nm 40km SM Duplex LC 0~+70℃ SPT-P5503-80 155M 1550nm 80km SM Duplex LC 0~+70℃ SPT-P1303-02D 155M 1310nm 2km SM Duplex LC 0~+70℃ SPT-P1303-10D 155M 1310nm 10km SM Duplex LC 0~+70℃ SPT-P1303-15D 155M 1310nm 15km SM Duplex LC 0~+70℃ SPT-P1303-20D 155M 1310nm 20km SM Duplex LC 0~+70℃ SPT-P1303-40D 155M 1310nm 40km SM Duplex LC 0~+70℃ SPT-P1303-02TD 155M 1310nm 2km SM Duplex LC -40~+85℃ SPT-P1303-04TD 155M 1310nm 4km SM Duplex LC -40~+85℃ SPT-P1303-15TD 155M 1310nm 15km SM Duplex LC -40~+85℃ SPT-P1303-20DT 155M 1310nm 20km SM Duplex LC -40~+85℃ SPT-P1303-40TD 155M 1310nm 40km SM Duplex LC -40~+85℃ SPT-P5503-40D 155M 1550nm 40km SM Duplex LC 0~+70℃ SPT-P5503-60D 155M 1550nm 60km SM Duplex LC 0~+70℃ SPT-P5503-80D 155M 1550nm 80km SM Duplex LC 0~+70℃ SPT-P5503-100D 155M 1550nm 100km SM Duplex LC 0~+70℃ SPT-P5503-120D 155M 1550nm 120km SM Duplex LC 0~+70℃ SPT-P5503-150D 155M 1550nm 150km SM Duplex LC 0~+70℃ SPT-P5503-40TD 155M 1550nm 40km SM Duplex LC -40~+85℃ SPT-P5503-80TD 155M 1550nm 80km SM Duplex LC -40~+85℃ SPT-P5503-120TD 155M 1550nm 120km SM Duplex LC -40~+85℃ SPT-P5503-150TD 155M 1550nm 150km SM Duplex LC -40~+85℃ PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-P851G-S5 1.25 Gbps 850nm 550m MM Duplex LC 0~+70℃ SPT-P851G-S5D 1.25 Gbps 850nm 550m MM Duplex LC 0~+70℃ SPT-P851G-S5TD 1.25 Gbps 850nm 550m MM Duplex LC -40~+85℃ SPT-P311G-02D 1.25 Gbps 1310nm 2km MM Duplex LC 0~+70℃ SPT-P311G-02TD 1.25 Gbps 1310nm 2km MM Duplex LC -40~+85℃ SPT-P131G-02D 1.25 Gbps 1310nm 2km SM Duplex LC 0~+70℃ SPT-P131G-10 1.25 Gbps 1310nm 10km SM Duplex LC 0~+70℃ SPT-P131G-20 1.25 Gbps 1310nm 20km SM Duplex LC 0~+70℃ SPT-P131G-40 1.25 Gbps 1310nm 40km SM Duplex LC 0~+70℃ SPT-P131G-10D 1.25 Gbps 1310nm 10km SM Duplex LC 0~+70℃ SPT-P131G-20D 1.25 Gbps 1310nm 20km SM Duplex LC 0~+70℃ SPT-P131G-40D 1.25 Gbps 1310nm 40km SM Duplex LC 0~+70℃ SPT-P131G-10TD 1.25 Gbps 1310nm 10km SM Duplex LC -40~+85℃ SPT-P131G-20T 1.25 Gbps 1310nm 20km SM Duplex LC -40~+85℃ SPT-P131G-20TD 1.25 Gbps 1310nm 20km SM Duplex LC -40~+85℃ SPT-P131G-40TD 1.25 Gbps 1310nm 40km SM Duplex LC -40~+85℃ SPT-P551G-40 1.25 Gbps 1550nm 40km SM Duplex LC 0~+70℃ SPT-P551G-80 1.25 Gbps 1550nm 80km SM Duplex LC 0~+70℃ SPT-P551G-120 1.25 Gbps 1550nm 120km SM Duplex LC 0~+70℃ SPT-P551G-10D 1.25 Gbps 1550nm 10km SM Duplex LC 0~+70℃ SPT-P551G-40D 1.25 Gbps 1550nm 40km SM Duplex LC 0~+70℃ SPT-P551G-60D 1.25 Gbps 1550nm 60km SM Duplex LC 0~+70℃ SPT-P551G-80D 1.25 Gbps 1550nm 80km SM Duplex LC 0~+70℃ SPT-P551G-100D 1.25 Gbps 1550nm 100km SM Duplex LC 0~+70℃ SPT-P551G-120D 1.25 Gbps 1550nm 120km SM Duplex LC 0~+70℃ SPT-P551G-150D 1.25 Gbps 1550nm 150km SM Duplex LC 0~+70℃ SPT-P551G-160D 1.25 Gbps 1550nm 160km SM Duplex LC 0~+70℃ SPT-P551G-180D 1.25 Gbps 1550nm 180km SM Duplex LC 0~+70℃ SPT-P551G-40TD 1.25 Gbps 1550nm 40km SM Duplex LC -40~+85℃ SPT-P551G-80TD 1.25 Gbps 1550nm 80km SM Duplex LC -40~+85℃ SPT-P551G-120TD 1.25 Gbps 1550nm 120km SM Duplex LC -40~+85℃ SPT-P551G-150TD 1.25 Gbps 1550nm 150km SM Duplex LC -40~+85℃ Hot Model P/N Description Details SFP-P131G-20D 1310nm, 1.25Gbps, 20km, 0ºC ~ +70ºC, DDM PDF SFP-P551G-40D 1550nm, 1.25Gbps, 40km, 0ºC ~ +70ºC, DDM PDF SFP-P551G-80D 1550nm, 1.25Gbps, 80km, 0ºC ~ +70ºC, DDM PDF If you have more requirements about wavelength, distance etc, please contact us Product Specifications SPT-P1303-20(D)2023.pdf Applications ● Fast Ethernet ● Gigabit Ethernet ● 1X Fibre Channel ● SONET/SDH OC-3/STM-1 ● SONET/SDH OC-12/STM-4 ● SONET/SDH OC-24/STM-8 Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-P1303-15 155M 1310nm 15km SM Duplex LC 0~+70℃ SPT-P1303-40 155M 1310nm 40km SM Duplex LC 0~+70℃ SPT-P5503-80 155M 1550nm 80km SM Duplex LC 0~+70℃ SPT-P1303-02D 155M 1310nm 2km SM Duplex LC 0~+70℃ SPT-P1303-10D 155M 1310nm 10km SM Duplex LC 0~+70℃ SPT-P1303-15D 155M 1310nm 15km SM Duplex LC 0~+70℃ SPT-P1303-20D 155M 1310nm 20km SM Duplex LC 0~+70℃ SPT-P1303-40D 155M 1310nm 40km SM Duplex LC 0~+70℃ SPT-P1303-02TD 155M 1310nm 2km SM Duplex LC -40~+85℃ SPT-P1303-04TD 155M 1310nm 4km SM Duplex LC -40~+85℃ SPT-P1303-15TD 155M 1310nm 15km SM Duplex LC -40~+85℃ SPT-P1303-20DT 155M 1310nm 20km SM Duplex LC -40~+85℃ SPT-P1303-40TD 155M 1310nm 40km SM Duplex LC -40~+85℃ SPT-P5503-40D 155M 1550nm 40km SM Duplex LC 0~+70℃ SPT-P5503-60D 155M 1550nm 60km SM Duplex LC 0~+70℃ SPT-P5503-80D 155M 1550nm 80km SM Duplex LC 0~+70℃ SPT-P5503-100D 155M 1550nm 100km SM Duplex LC 0~+70℃ SPT-P5503-120D 155M 1550nm 120km SM Duplex LC 0~+70℃ SPT-P5503-150D 155M 1550nm 150km SM Duplex LC 0~+70℃ SPT-P5503-40TD 155M 1550nm 40km SM Duplex LC -40~+85℃ SPT-P5503-80TD 155M 1550nm 80km SM Duplex LC -40~+85℃ SPT-P5503-120TD 155M 1550nm 120km SM Duplex LC -40~+85℃ SPT-P5503-150TD 155M 1550nm 150km SM Duplex LC -40~+85℃ PN Data Rate Wavelength Transmission Distance Fiber Interface Operating Temperature SPT-P851G-S5 1.25 Gbps 850nm 550m MM Duplex LC 0~+70℃ SPT-P851G-S5D 1.25 Gbps 850nm 550m MM Duplex LC 0~+70℃ SPT-P851G-S5TD 1.25 Gbps 850nm 550m MM Duplex LC -40~+85℃ SPT-P311G-02D 1.25 Gbps 1310nm 2km MM Duplex LC 0~+70℃ SPT-P311G-02TD 1.25 Gbps 1310nm 2km MM Duplex LC -40~+85℃ SPT-P131G-02D 1.25 Gbps 1310nm 2km SM Duplex LC 0~+70℃ SPT-P131G-10 1.25 Gbps 1310nm 10km SM Duplex LC 0~+70℃ SPT-P131G-20 1.25 Gbps 1310nm 20km SM Duplex LC 0~+70℃ SPT-P131G-40 1.25 Gbps 1310nm 40km SM Duplex LC 0~+70℃ SPT-P131G-10D 1.25 Gbps 1310nm 10km SM Duplex LC 0~+70℃ SPT-P131G-20D 1.25 Gbps 1310nm 20km SM Duplex LC 0~+70℃ SPT-P131G-40D 1.25 Gbps 1310nm 40km SM Duplex LC 0~+70℃ SPT-P131G-10TD 1.25 Gbps 1310nm 10km SM Duplex LC -40~+85℃ SPT-P131G-20T 1.25 Gbps 1310nm 20km SM Duplex LC -40~+85℃ SPT-P131G-20TD 1.25 Gbps 1310nm 20km SM Duplex LC -40~+85℃ SPT-P131G-40TD 1.25 Gbps 1310nm 40km SM Duplex LC -40~+85℃ SPT-P551G-40 1.25 Gbps 1550nm 40km SM Duplex LC 0~+70℃ SPT-P551G-80 1.25 Gbps 1550nm 80km SM Duplex LC 0~+70℃ SPT-P551G-120 1.25 Gbps 1550nm 120km SM Duplex LC 0~+70℃ SPT-P551G-10D 1.25 Gbps 1550nm 10km SM Duplex LC 0~+70℃ SPT-P551G-40D 1.25 Gbps 1550nm 40km SM Duplex LC 0~+70℃ SPT-P551G-60D 1.25 Gbps 1550nm 60km SM Duplex LC 0~+70℃ SPT-P551G-80D 1.25 Gbps 1550nm 80km SM Duplex LC 0~+70℃ SPT-P551G-100D 1.25 Gbps 1550nm 100km SM Duplex LC 0~+70℃ SPT-P551G-120D 1.25 Gbps 1550nm 120km SM Duplex LC 0~+70℃ SPT-P551G-150D 1.25 Gbps 1550nm 150km SM Duplex LC 0~+70℃ SPT-P551G-160D 1.25 Gbps 1550nm 160km SM Duplex LC 0~+70℃ SPT-P551G-180D 1.25 Gbps 1550nm 180km SM Duplex LC 0~+70℃ SPT-P551G-40TD 1.25 Gbps 1550nm 40km SM Duplex LC -40~+85℃ SPT-P551G-80TD 1.25 Gbps 1550nm 80km SM Duplex LC -40~+85℃ SPT-P551G-120TD 1.25 Gbps 1550nm 120km SM Duplex LC -40~+85℃ SPT-P551G-150TD 1.25 Gbps 1550nm 150km SM Duplex LC -40~+85℃
Especificaciones técnicas
