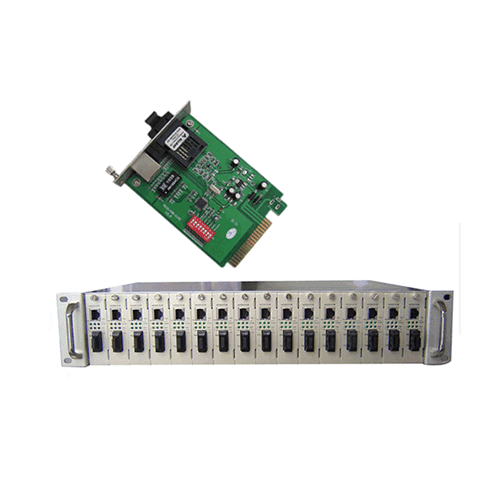

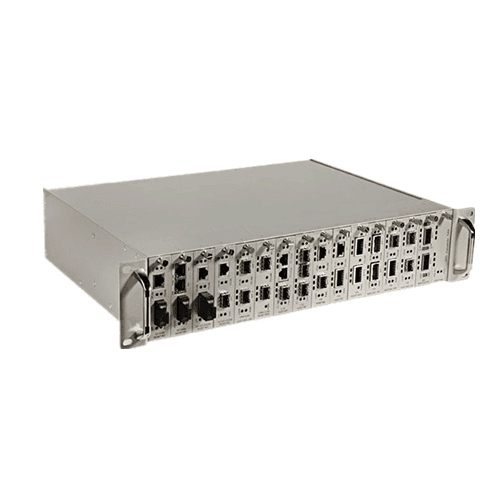

16 Slots Media Converter Chassis
The 2U-Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 16 media conversion modules. 16 Slot Fiber Optic Media Converter Chassis is acceptable for the most 16 sets of 10/100M,1000M,10/100/1000M or 10G card-type media converter.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

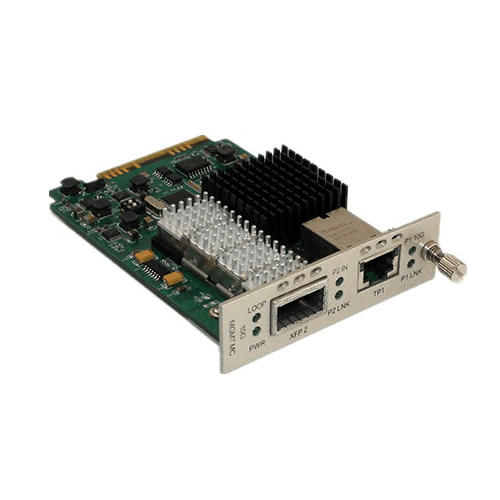

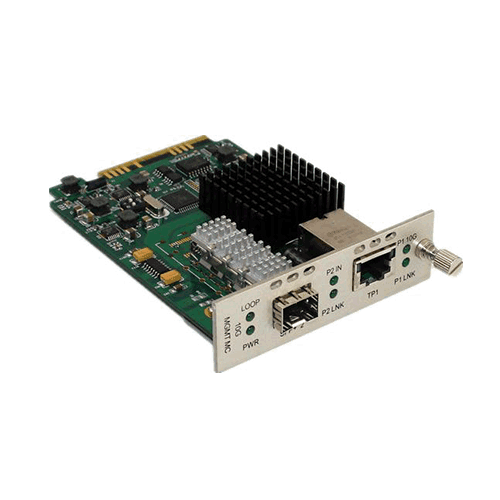

The 2U-Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 16 media conversion modules. 16 Slot Fiber Optic Media Converter Chassis is acceptable for the most 16 sets of 10/100M,1000M,10/100/1000M or 10G card-type media converter. Feature ● 19’ 2U rack, easy for focus management ● 16 slots for media converter module ● Dual /single fiber with bi-direction optional ● Auto-identify MDI/MDIX ● Full/half duplex auto negotiation ● Low power loss and good heat dissipation ● Stable performance, large capacity of power supply, easy for management and maintenance ● Management function optional Applications ● LAN/WAN ● Access Control Systems ● 10/100/1000 Mbps Ethernet ● High Speed Computer Links Ordering Information Part No. Description 2U 16 Slots Media Converter Chassis System, without management SPMC-16C 2U 16 Slots Unmanaged Media Converter Chassis, -48V DC or 220V AC Power supply, Support Dual Power supply, without media converter cards SPM-CT4X-NXS Media converter card 10/100M, Dual Fiber 2, 20,40,60,80,100 km optional, SC SPM-CT2X-NXS Media converter card 10/100/1000M, Dual Fiber 2, 20,40,60, 80,100km optional, SC SPM-CT435-N20S Media converter card BIDI 10/100M, SM, 20KM, SC, 1310Tx/1550Rx SPM-CT453-N20S Media converter card BIDI 10/100M, SM, 20KM, SC, 1550Tx/1310R SPM-CT4X-PX Media converter card 10/100M, SFP Slot without Transceiver SPM-CT2X-PX Media converter card 10/100/1000M, SFP Slot without Transceiver 2U 16 Slots Management Media Converter Rack SPMC-16CM 2U 16 Slots managed Media Converter Chassis, -48V DC or 220V AC Power supply, Support Dual Power supply, without media converter cards or management Card SPMC-16CM-MC Management Card SPMC-16CM-CC Cascading Card SPM-CMT4X-NXS Manageable Media converter card 10/100M, Dual Fiber 2, 20,40,60,80,100km optional, SC SPM-CMT2X-NXS Manageable Media converter card 10/100/1000M, Dual Fiber 2, 20,40,60, 80,100km optional, SC SPM-CMT435-N20S Manageable Media converter card BIDI 10/100M, SM, 20KM, SC, 1310Tx/1550Rx SPM-CMT453-N20S Manageable Media converter card BIDI 10/100M, SM, 20KM, SC, 1550Tx/1310Rx SPM-CMT4X-PX Manageable Media converter card 10/100M, SFP Slot without Transceiver SPM-CMT2X-PX Manageable Media converter card 10/100/1000M, SFP Slot without Transceiver SPM-CMTGX-PX Manageable Media converter card 10G SFP+ Slot without Transceiver SPM-IRMT4X-NXS Remote Standalone Manageable Media converter 10/100M, Dual Fiber 2,20,40,60,80,100km optional, SC SPM-IRMT2X-NXS Remote Standalone Manageable Media converter 10/100/1000M, Dual Fiber 2, 20,40,60, 80,100km optional, SC
