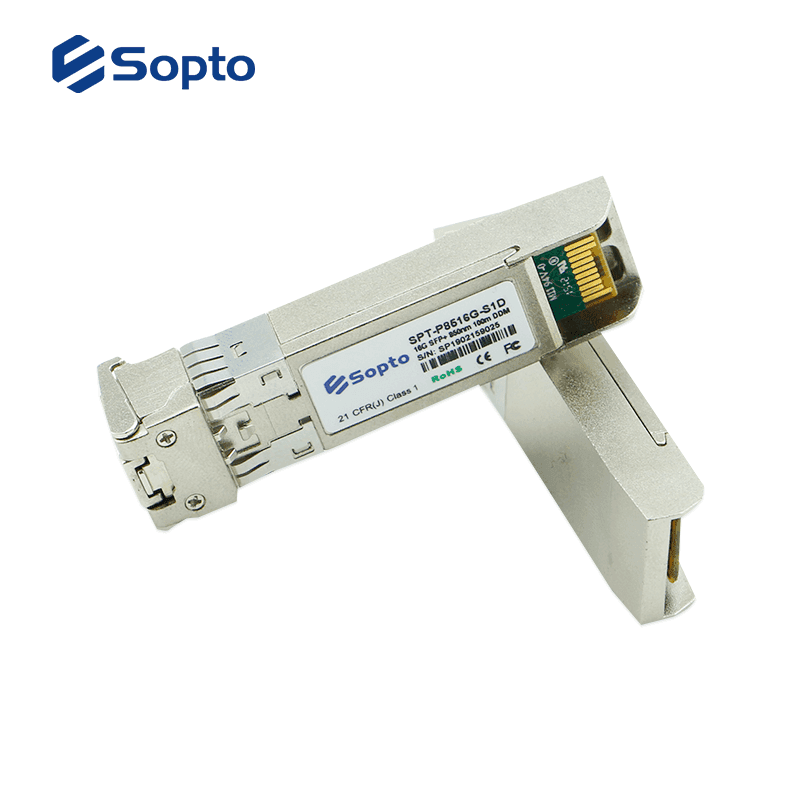

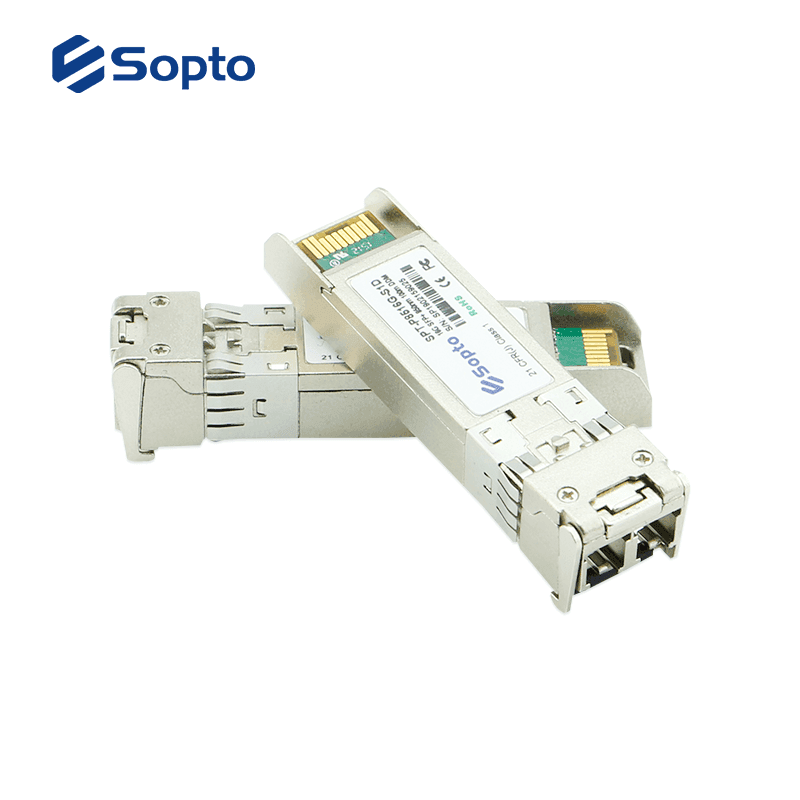

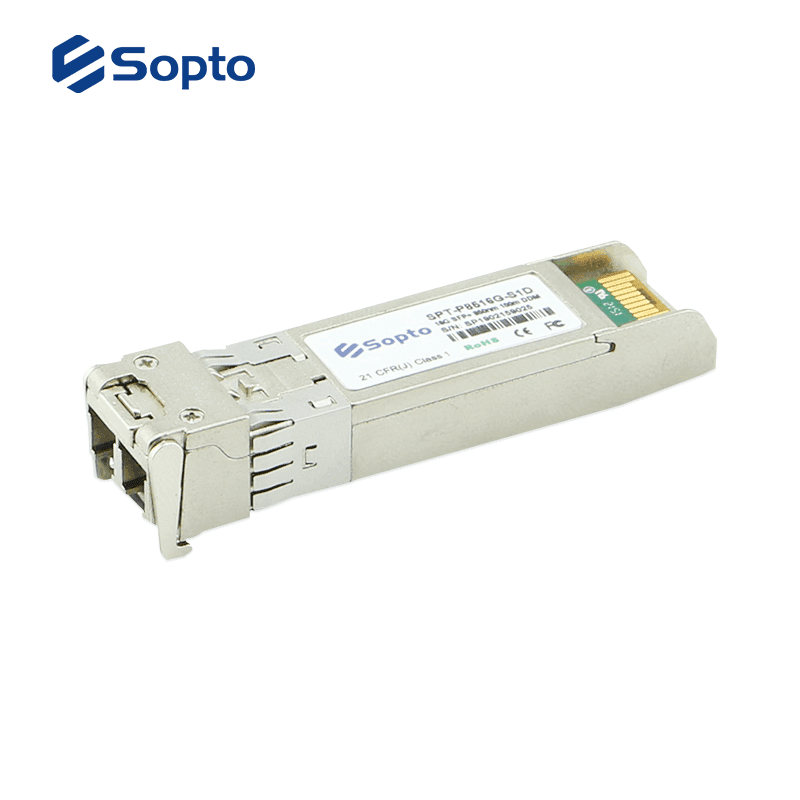

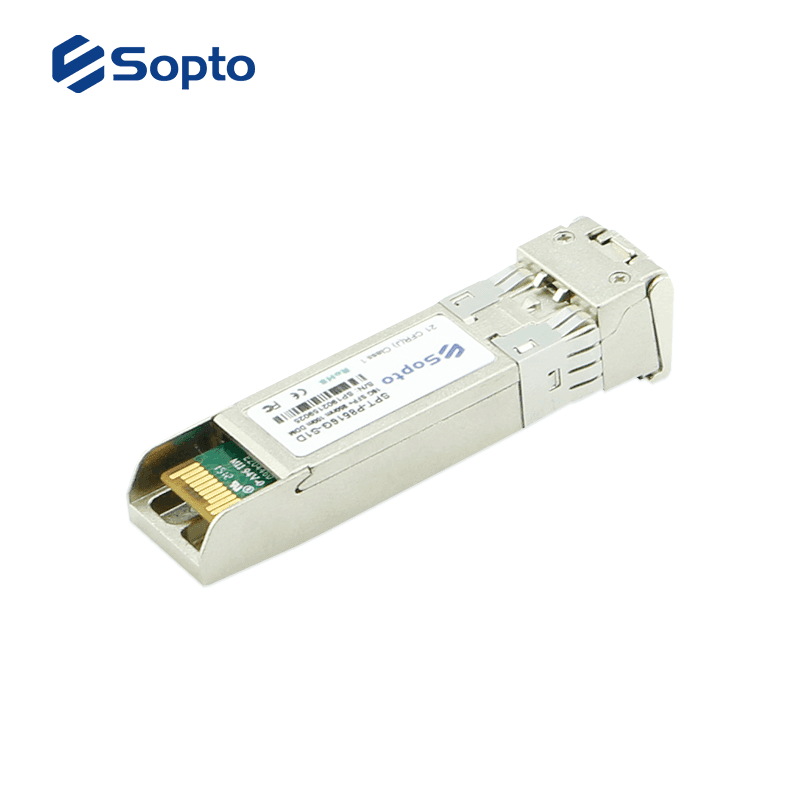

16G SFP+ Transceiver
Soptos 16G FC SFP+ is a series of optical transceiver modules designed for use in 16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Soptos 16G FC SFP+ is a series of optical transceiver modules designed for use in 16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● RoHS-6 compliant ● Duplex LC Interface ● Low power dissipation ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Hot-pluggable SFP+ form factor ● Up to 14.025Gb/s bi-directional data links ● Support Multi-rate for 16X/10X/8X/4X/2X/1X FC ● Operating Case Temperature: Standard: 0~70°C ● Transmission distance up to 100m on MMF OM3 and 10km over SMF P/N Description Details SPT-P8516G-S1D 850nm , 2.125/4.25/8.5/14.025Gbs, SFP+ , 100m/OM3 , DDM, 0ºC ~ +70ºC PDF SFP-P1316G-10D 1310nm , 2.125/4.25/8.5/14.025Gbs, SFP+ 10 km , DDM, 0ºC ~ +70ºC PDF Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● 16X/10X/8X/4X/2X/1X FC at 14.025/10.53/8.5/4.25/2.125/1.0625Gbps Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate (Gbps) Distance Fiber Output Power (dBm) Sensitivity(dBm) Interface Temp. DDM SPT-P8516G-S1D 14.025 100m/OM3 MM -7.8～-1 -10.5 Duplex LC 0 to 70℃ D SFP-P1316G-10D 14.025 10km SM -4～-3 -10.5 Duplex LC 0 to 70℃ D
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
