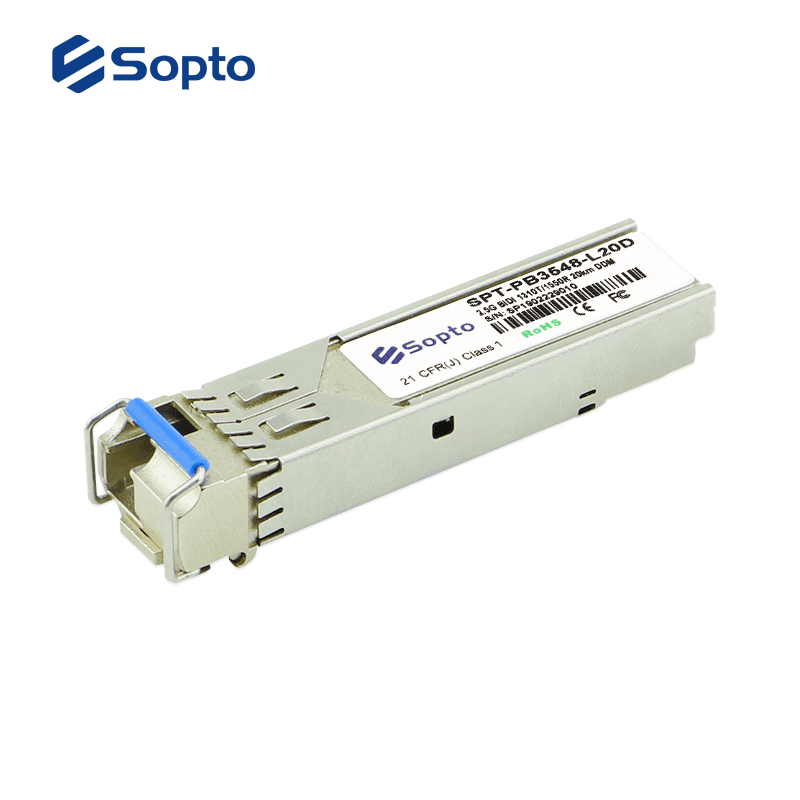

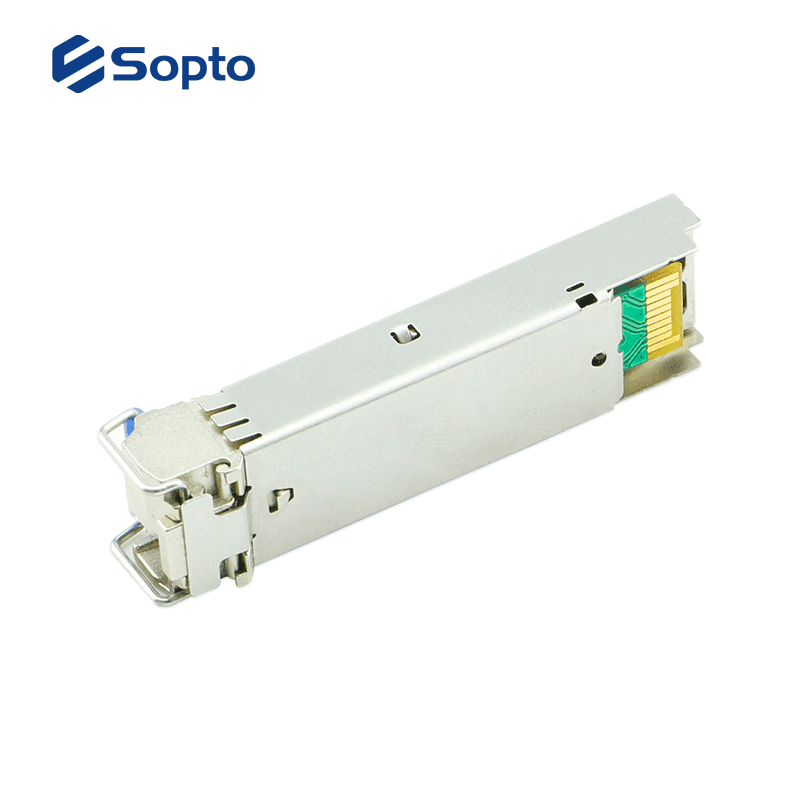

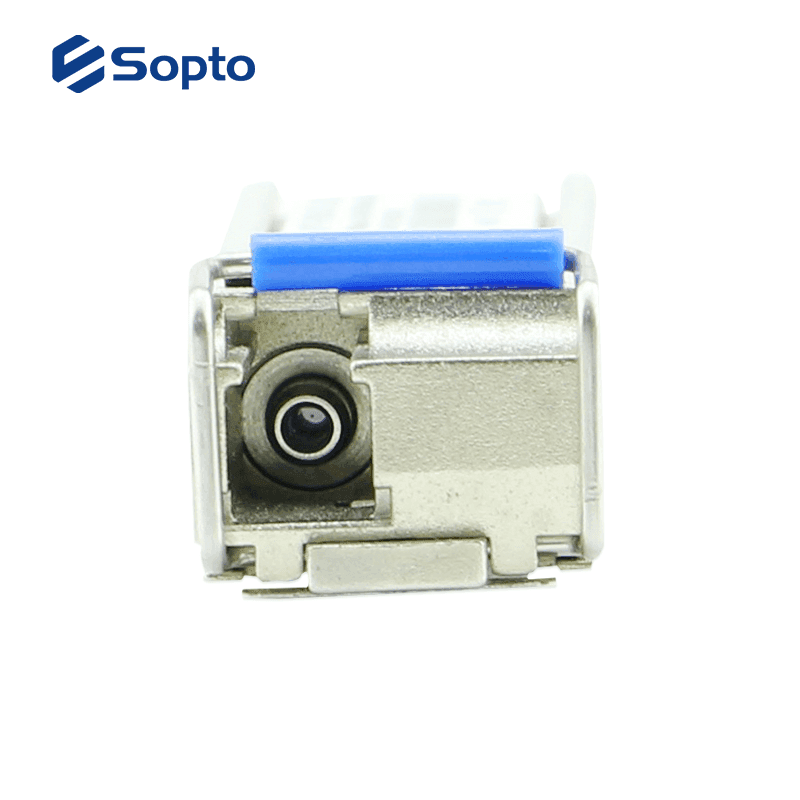

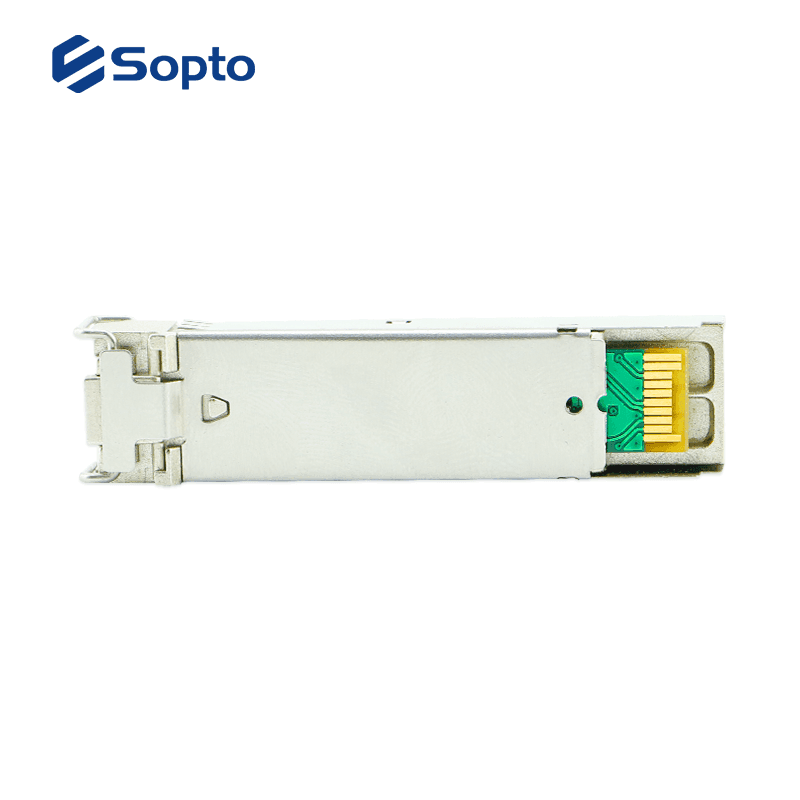

2.5G BIDI SFP
SOPTO’s 2.5G BIDI SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet .They are operating at single single mode Fiber (SMF). They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 2.5G BIDI SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet .They are operating at single single mode Fiber (SMF). They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Simplex SC or LC Interface ● Single +3.3V power supply ● Supports data rates up to 2.67Gb/s ● Built-in digital diagnostic functions ● Single Fiber BIDI SFP Optical Transceiver ● Transmission distance up to 120km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C ;Industrial: -40~85°C Compliant ● RoHS-6 ● SFP+ MSA ● FC-PI 13.0 ● IEEE Std 802.3 Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● 2X/1X FC ● 1000Base Ethernet ● SDH/SONET ● Storage Area Network(SAN) ● Other Optical Link Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information Products Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity (dBm) Interface Temp. DDM SPT-PB3548-L(S)20D SPT-PB5348-L(S)20D 2.5 20km SM -9 ～ -3 -24 Simplex LC/SC 0 to 70 ℃ D SPT-PB4548-L(S)40D SPT-PB5448-L(S)40D 2.5 40km SM -3 ～ 0 -24 Simplex LC/SC 0 to 70 ℃ D SPT-PB4548-L(S)60D SPT-PB5448-L(S)60D 2.5 60km SM -4 ～ -1 -28 Simplex LC/SC 0 to 70 ℃ D SPT-PB4548-L(S)80D SPT-PB5448-L(S)80D 2.5 80km SM -3 ～ 0 -28 Simplex LC/SC 0 to 70 ℃ D SPT-PB4548-L(S)100D SPT-PB5448-L(S)100D 2.5 100km SM >0 -29 Simplex LC/SC 0 to 70 ℃ D SPT-PB4548-L(S)120D SPT-PB5448-L(S)120D 2.5 120km SM >1 -30 Simplex LC/SC 0 to 70 ℃ D
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
