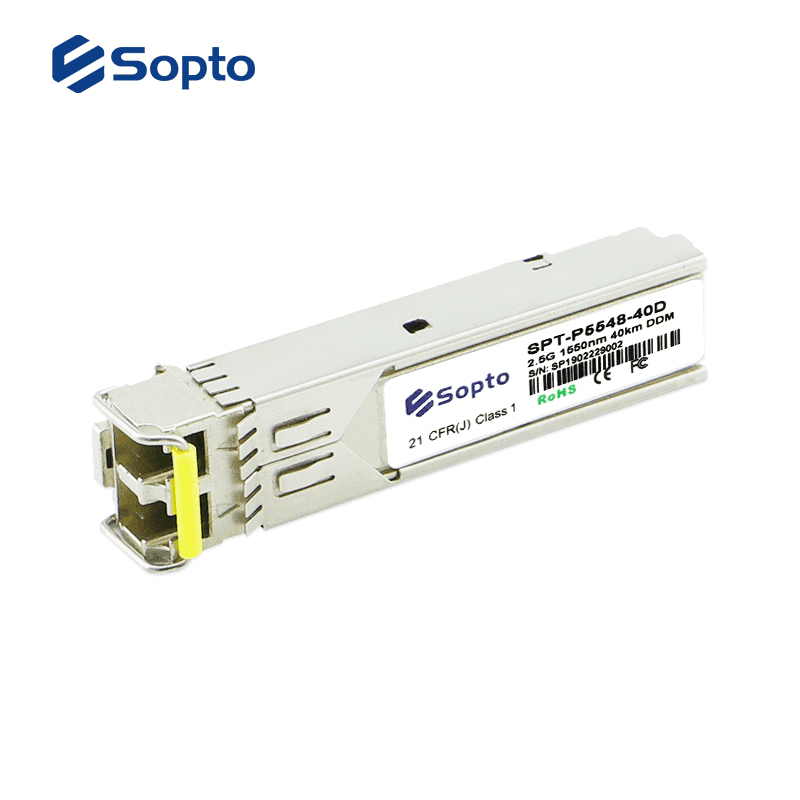

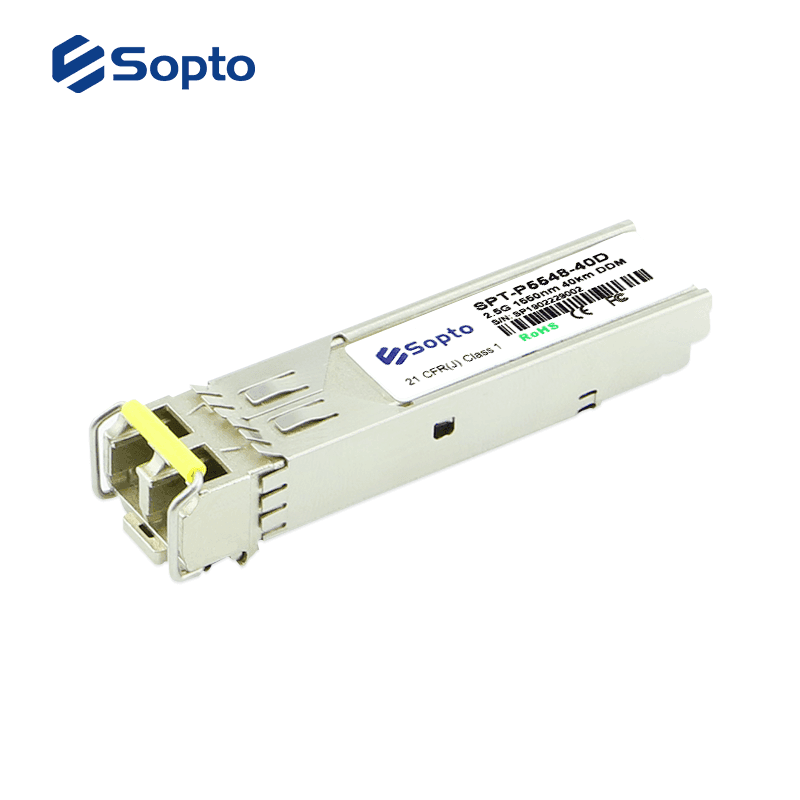

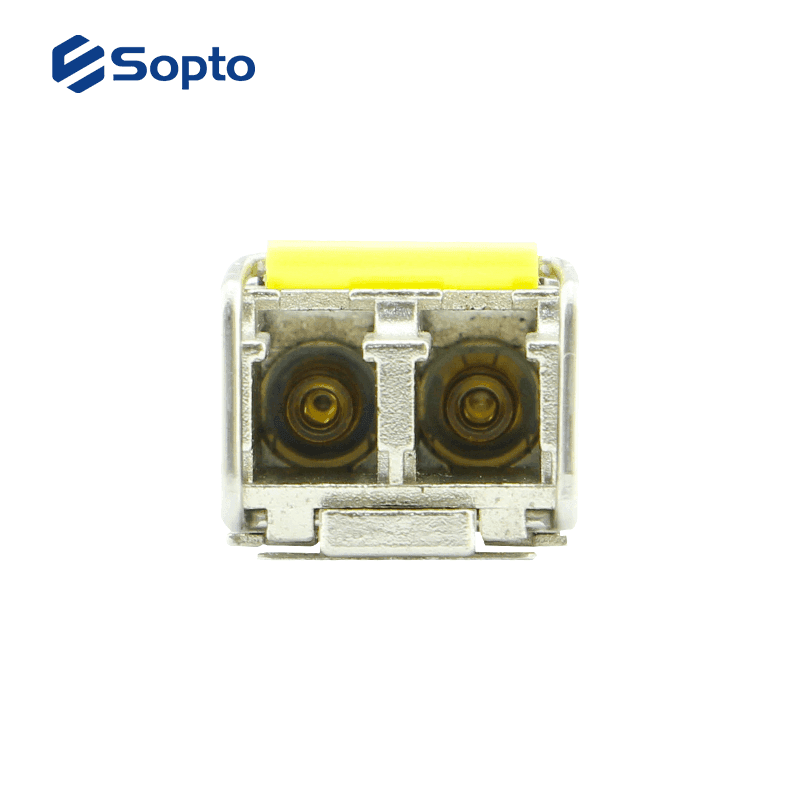

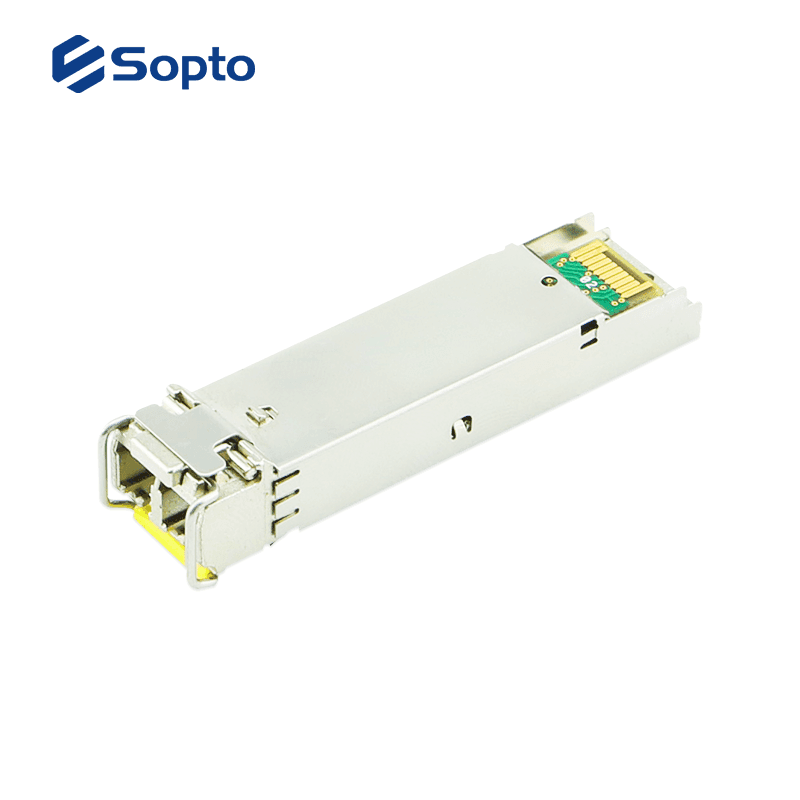

2.5G SFP
SOPTO’s 2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Supports data rates up to 2.67Gb/s ● Transmission distance up to 300m on MMF OM3 and 120km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C Hot Model P/N Description Details SFP-P1348-10D 1310nm, 2.5Gbps, 10km, 0ºC ~ +70ºC, DDM PDF SPT-P5548-120D 1550nm, 2.488Gbps, 120km, 0ºC ~ +70ºC, DDM PDF If you have more requirements about wavelength, distance etc, please contact us. Compliant ● RoHS-6 ● SFP+ MSA ● FC-PI 13.0 ● IEEE Std 802.3 Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● 2X/1X FC ● 1000Base Ethernet ● SDH/SONET ● Storage Area Network (SAN) ● Other Optical Link Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM SPT-P8548-S3D 2.5 300m/OM3 MM -5 ～ -1 -11 Duplex LC 0 to 70 ℃ D SFP-P1348-02D 2.5 2km SM -10 ～ 13 -19 Duplex LC 0 to 70 ℃ D SFP-P1348-10D 2.5 10km SM -5 ～ 0 -15 Duplex LC 0 to 70 ℃ D SFP-P1348-20D 2.5 20km SM -4 ～ 0 -15 Duplex LC 0 to 70 ℃ D SPT-P5548-40D 2.5 40km SM 0 ～ 3 -17 Duplex LC 0 to 70 ℃ D SPT-P5548-80D 2.5 80km SM 0 ～ 5 -23 Duplex LC 0 to 70 ℃ D SPT-P5548-100D 2.5 100km SM >0 -29 Duplex LC 0 to 70 ℃ D SPT-P5548-120D 2.5 120km SM >1 -30 Duplex LC 0 to 70 ℃ D
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
