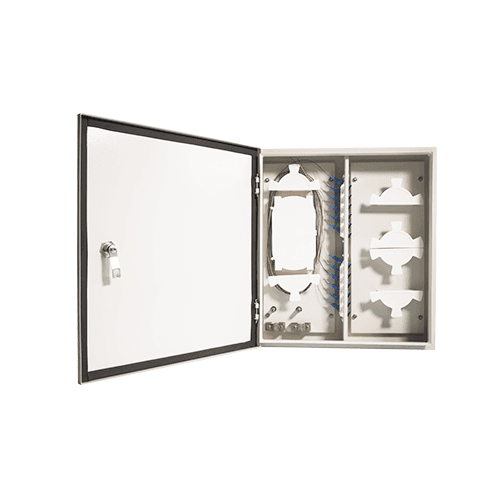

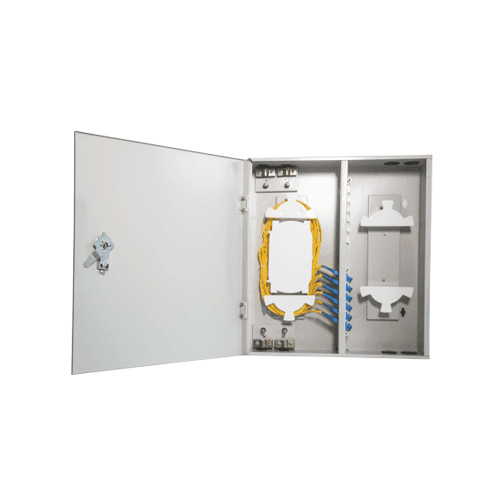

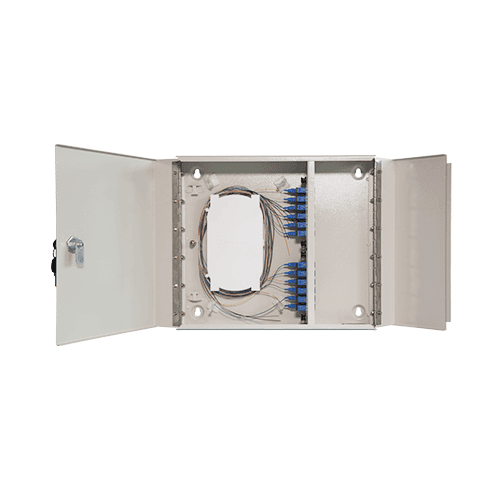

24 cores Fiber Terminal Box
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
FTTH Terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building Feature ● Single door, double door optional, easy to operate ● Suitable for outdoor or indoor use ● Applicable to SC, LC duplex, FC, ST and other adapters and pigtails ● Made of high-quality metal material, fully enclosed structure, beautiful appearance ● Effectively protect and manage cables ● Adopt anti-theft lock mechanism ● Integrated processing of feeder cable and lead-in cable, fiber connection, fixing, storage, and distribution Item Parameter Model No. SPDF-O24SCS-XXX Mounting way Wall-mounting or Pole mounting Insert Loss ≤ 0.2dB UPC Return Loss ≥ 50dB APC Return Loss ≥ 60dB Insert and Pull out Life ≥ 1000 times Applications ● Telecommunication subscriber loop ● Fiber to the home (FTTH) ● LAN/WAN Ordering Information Part Number Product Description Size(mm) SPDF-I24SCS-WMMB-D FTTH Terminal Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type without adaptors , pigtails, Metal Double door customized type B 350*350*140 SPDF-I24SCS-WMA FTTH Terminal Box Indoor wall mounted 24cores Simplex SC/Duplex LC type without adaptors , pigtails Metal Single door type A 455*405*80 SPDF-I24SCS-WMA-D FTTH Terminal Box Indoor wall mounted 24cores Simplex SC/Duplex LC type without adaptors , pigtails Metal Double door type A 350*350*80 SPDF-O24SCS-WMA FTTH Terminal Box Outdoo wall mounted 24cores Simplex SC/Duplex LC type without adaptors , pigtails Metal Single door type A 455*405*80
