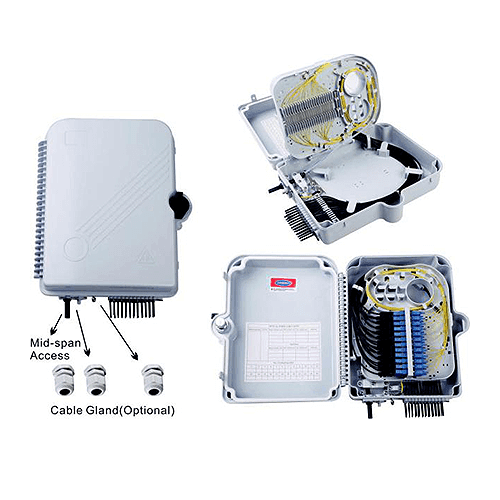

24 cores Splitter Distribution Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building Feature ● Easy to operate ● Suitable for both outdoor or indoor use ● Suitable for SC and LC duplex adaptor and pigtail ● Total enclosed structure, be in nice shape ● Protects and manages cable effectively ● Secured with anti-theft locking mechanism ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one Item Parameter Model No. SPDF-O24SCS-XXX Mounting way Wall-mounting or Pole mounting Insert Loss ≤ 0.2dB UPC Return Loss ≥ 50dB APC Return Loss ≥ 60dB Insert and Pull out Life ≥ 1000 times Applications ● Telecommunication subscriber loop ● Fiber to the home (FTTH) ● LAN/WAN Ordering Information Part Number Product Description Size(mm) SPDF-O24SCS-PMPA Splitter Distribution Box Outdoor Wall mounted 24 cores Simplex SC/Duplex LC type available for Steel tube splitter installation without hoop, adaptors, pigtails and splitter Plastic type A 317*237*101 SPDF-O24SCS-PMHPA Splitter Distribution Box Outdoor pole mounted 24 cores Simplex SC/Duplex LC type available for Steel tube splitter installation with hoop, without adaptors, pigtails and splitter Plastic type A 317*237*101 SPDF-O24SCS-PAHMA Splitter Distribution Box Outdoor pole mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation with hoop, without adaptors, pigtails and splitter Metal Single door type A 320*370*90 SPDF-I24SCS-WAMA Splitter Distribution Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type A 320*370*90 SPDF-O24SCS-WAMB Splitter Distribution Box Outdoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Single door type B 320*370*90 SPDF-I24SCS-WAMC Splitter Distribution Box Indoor wall mounted 24 cores Simplex SC/Duplex LC type available for ABS cassette splitter installation without adaptors, pigtails and splitter Metal Double door type C 350*300*80
