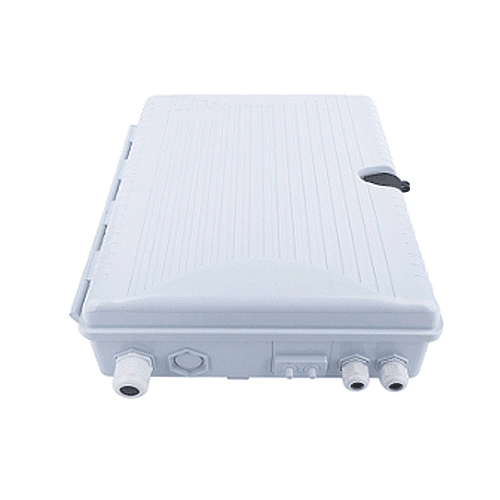

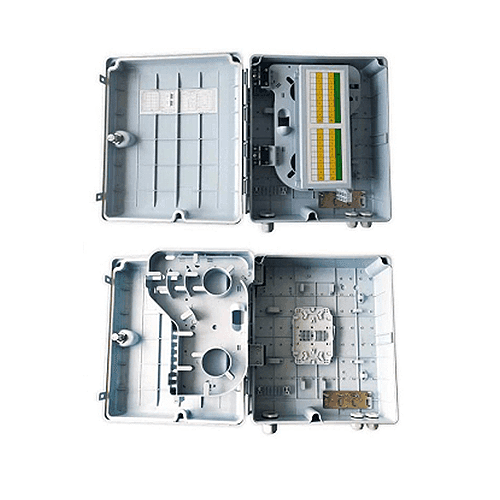

32 cores Splitter Distribution Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building Feature ● Total enclosed structure, be in nice shape ● Protects and manages cable effectively ● Secured with anti-theft locking mechanism ● Standard size, light weight ● High quality PC +ABS material ● Good properties of dust, and moisture proofing, IP65 ● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one ● Suitable for SC and LC duplex adaptor and pigtail ● Easy to operate ● Suitable for both outdoor and indoor use Item Parameter Model No. SPDF-O32SCS-PPPA Mounting way Wall-mounting Work Temperature -40 °C ~+85 °C Relative Humidity ≤ 85% (+30 °C) Atmospheric Pressure 70Kpa~106Kpa Insert Loss ≤ 0.2dB UPC Return Loss ≥ 50dB APC Return Loss ≥ 60dB Insert and Pull out Life ≥ 1000 times Insulation The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current ） Withstand Voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash over. U ≥3000V (direct current) Applications ● Telecommunication subscriber loop ● Fiber to the home (FTTH) ● LAN/WAN Ordering Information Part Number Product Description Size(mm) SPDF-O32SCS-PPPA Splitter Distribution Box Outdoor pole mounted 32 cores Simplex SC/Duplex LC type available for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic type A 380*320*115
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
