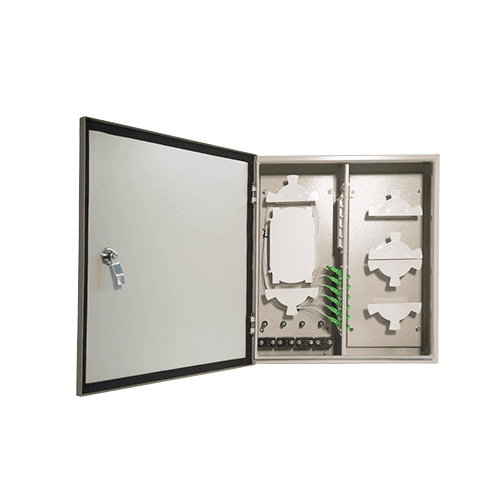

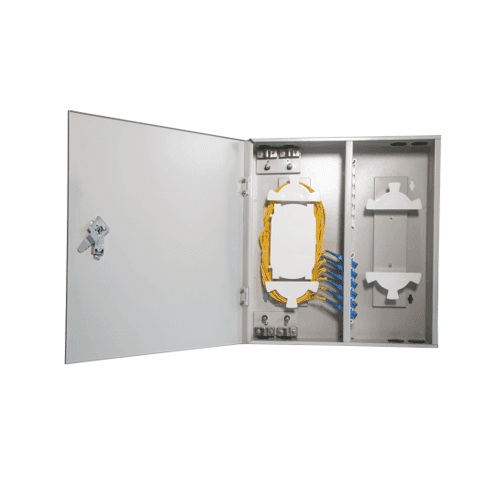

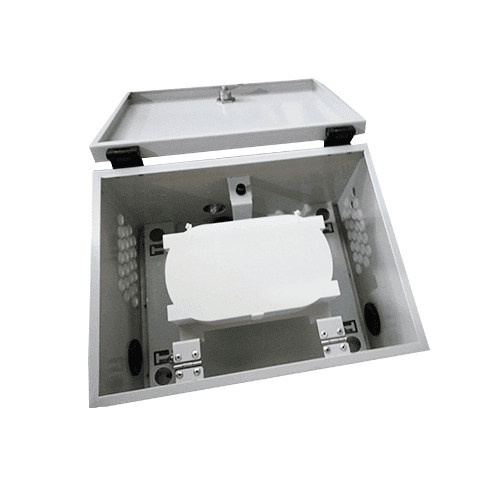

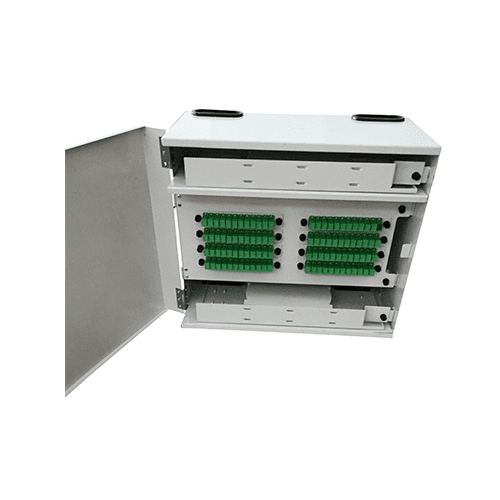

48 cores Fiber Terminal Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building Feature ● Single door, double door optional, easy to operate ● Suitable for outdoor or indoor use ● A pplicable to SC, LC duplex, FC, ST and other adapters and pigtails ● Made of high-quality metal material, fully enclosed structure, beautiful appearance ● Effectively protect and manage cables ● Adopt anti-theft lock mechanism ● Integrated processing of feeder cable and lead-in cable, fiber connection, fixing, storage, and distribution ● The size and style of the cabinet can be customized according to customer requirements. Item Parameter Model No. SPDF-I48SCS-XX Mounting way Wall-mounting Insert Loss ≤ 0.2dB UPC Return Loss ≥ 50dB APC Return Loss ≥ 60dB Insert and Pull out Life ≥ 1000 times Applications ● Telecommunication subscriber loop ● Fiber to the home(FTTH) ● LAN/WAN Ordering Information Part Number Product Description Model Size (mm) SPDF-I48XS-WMWM FTTH Terminal Box Indoor wall mounted 48 cores No panel without adaptors, pigtails and splitter Metal Single door type WM 380*320*115 SPDF-I48SCS-WMA FTTH Terminal Box Indoor wall mounted 48cores Simplex SC/Duplex LC type without adaptors, pigtails Metal Single door type A 455*405*120 SPDF-O48SCS-WMA FTTH Terminal Box outdoor wall mounted 48cores Simplex SC/Duplex LC type without adaptors, pigtails Metal Single door type A 455*405*120 SPDF-I48SCT-WMM4 Terminal Box Indoor wall mounted 48 ports Simplex SC/Duplex LC type without adaptors, pigtails , Metal customized type 350*400*200
