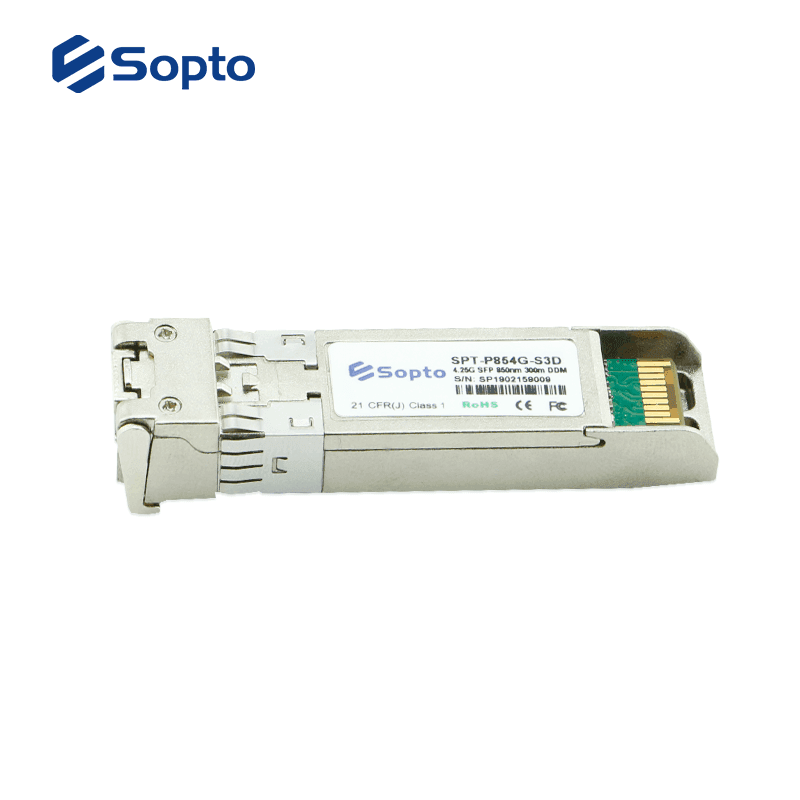

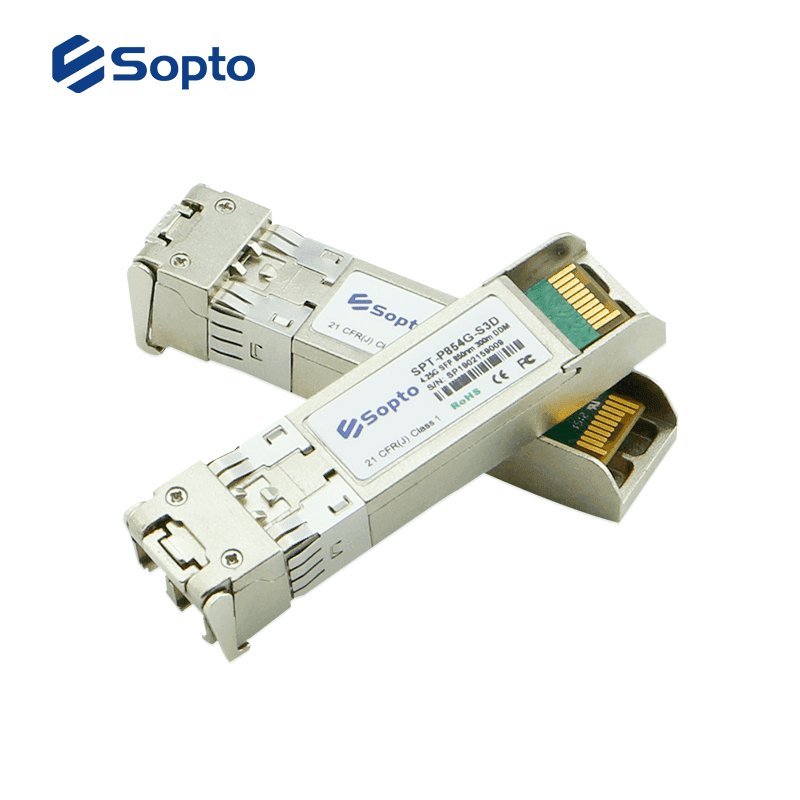

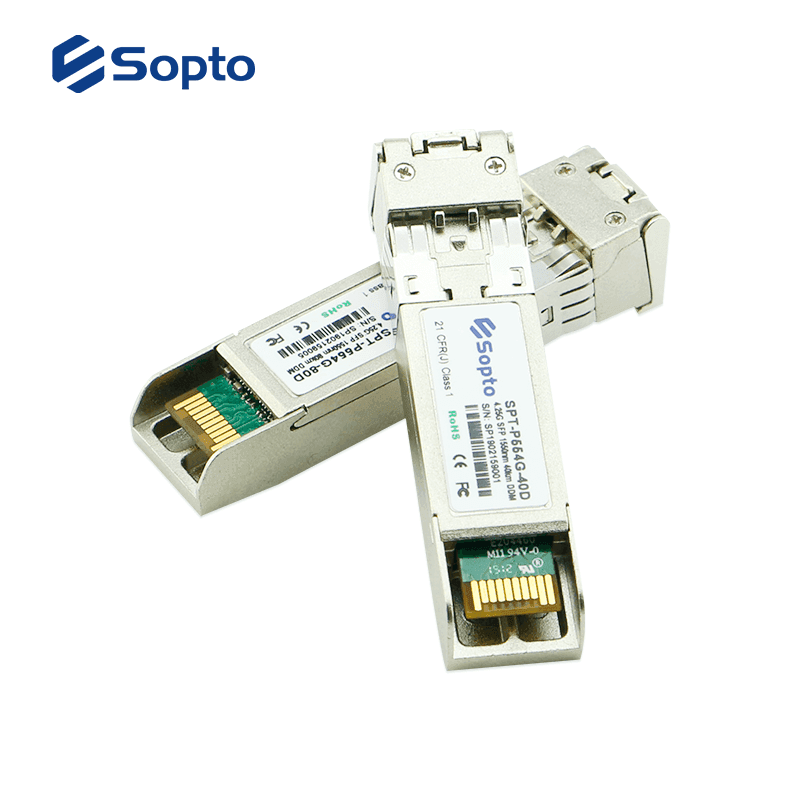

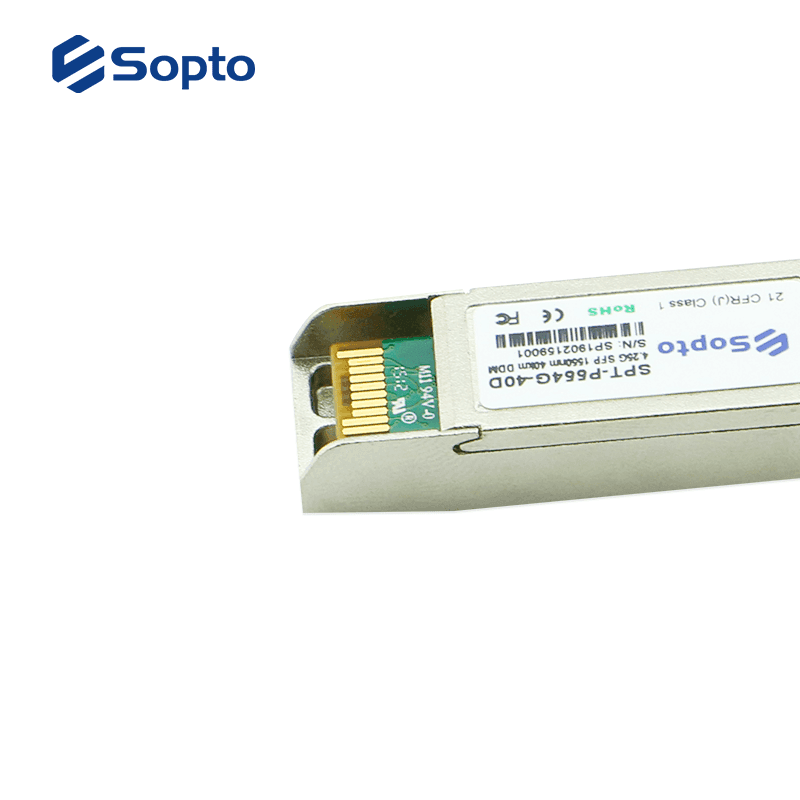

4G SFP
SOPTO’s 4G SFP is a series of optical transceiver modules designed for use in 4x/2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 4G SFP is a series of optical transceiver modules designed for use in 4x/2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Single +3.3V power supply ● Supports date rates up to 4.25Gb/s ● Built-in digital diagnostic functions ● Transmission distance up to 300m on MMF OM3 and 80km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C Hot Model P/N Description Details SPT-P854G-S3D 850nm, 4.25Gbps,300m, 0ºC~ +70ºC, DDM PDF If you have more requirements about wavelength, distance etc, please cantact us Compliant ● RoHS-6 ● SFP+ MSA ● FC-PI 13.0 ● IEEE Std 802.3 Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● 4X/2X/1X Fiber Channel ● 1000Base Ethernet ● SDH/SONET ● Storage Area Network(SAN) ● Other Optical Link Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate (Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM SPT-P854G-S3D 4.25 300m/OM3 MM -5 ～ -1 -11 Duplex LC 0 to 70 ℃ D SFP-P134G-10D 4.25 10km SM -5 ～ 0 -15 Duplex LC 0 to 70 ℃ D SFP-P134G-20D 4.25 20km SM -4 ～ 0 -15 Duplex LC 0 to 70 ℃ D SPT-P554G-40D 4.25 40km SM 0 ～ 3 -17 Duplex LC 0 to 70 ℃ D SPT-P554G-80D 4.25 80km SM 0 ～ 5 -23 Duplex LC 0 to 70 ℃ D
