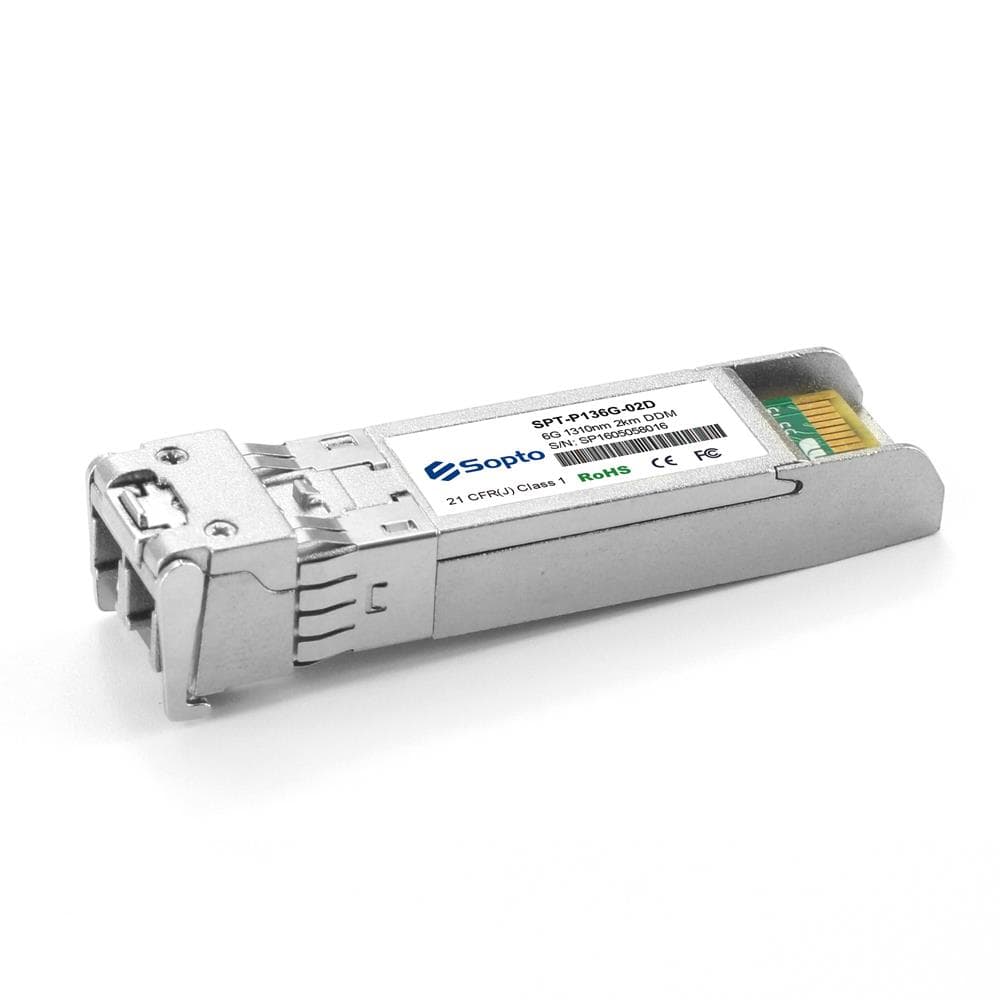

6G LTE SFP+
SOPTO’s 6G SFP+ is a series of optical transceiver modules designed for use in LTE/OBSAI/CPRI application. For the OBSAI application, the rates are 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s. For the CPRI application, the rates are 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s.They are compliant with the SFP+ MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 6G SFP+ is a series of optical transceiver modules designed for use in LTE/OBSAI/CPRI application. For the OBSAI application, the rates are 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s. For the CPRI application, the rates are 9.830 Gb/s, 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s.They are compliant with the SFP+ MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● RoHS-6 compliant ● Single +3.3V power supply ● Built-in digital diagnostic functions ● Supports data rate up to 6.25Gbps ● CPRI/OBSAI Compatible Optical Interface ● Transmission distance up to 300m on MMF OM3 and 80km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C Hot Model P/N Description Details SPT-P856G-S3D 850nm, 4.9G/6.144Gbps, SFP+ 300m, DDM,0ºC ~ +70ºC PDF SFP-P136G-10D 1310nm, 4.9G/6.144Gbs, 10km, 0ºC ~ +70ºC,DDM PDF Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● Radio Base Station ● LTE optical repeater application ● OBSAI interface, such as 6.144/1.536/3.072/1.536Gbps and 768Mbps ● CPRI interface, such as 6.144/3.072/2.4576/1.228Gbps and 614Mbps Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM SPT-P856G-S3D 6.25 300m/OM3 MM -5 ～ -1 -11 Duplex LC 0 to 70 ℃ D SFP-P136G-10D 6.25 10km SM -5 ～ 0 -15 Duplex LC 0 to 70 ℃ D SFP-P136G-20D 6.25 20km SM -4 ～ 0 -15 Duplex LC 0 to 70 ℃ D SPT-P556G-40D 6.25 40km SM 0 ～ 3 -17 Duplex LC 0 to 70 ℃ D SPT-P556G-80D 86.25 80km SM 0 ～ 5 -23 Duplex LC 0 to 70 ℃ D
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
