8G SFP+

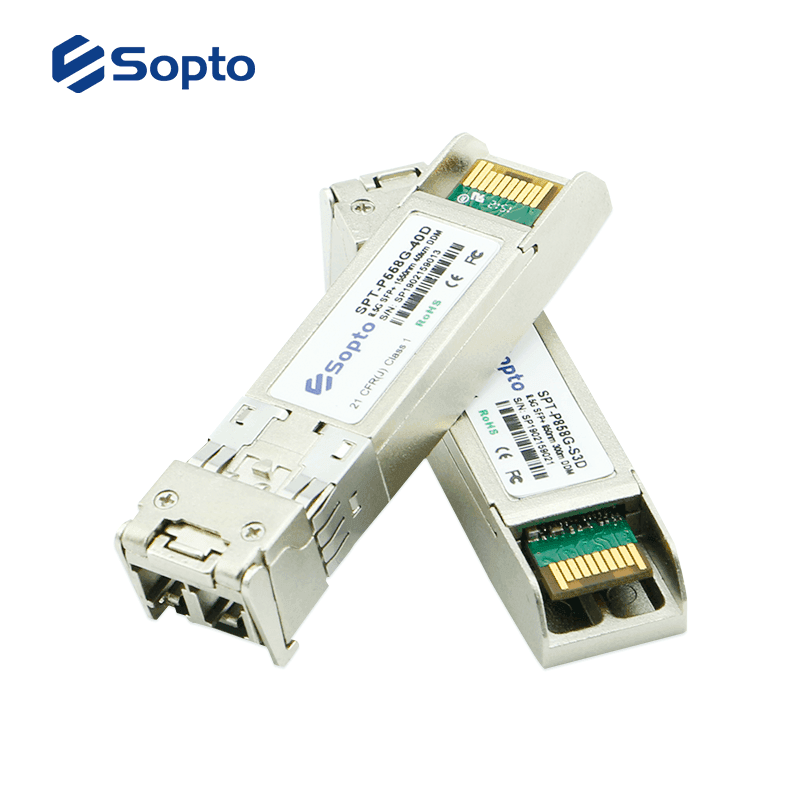

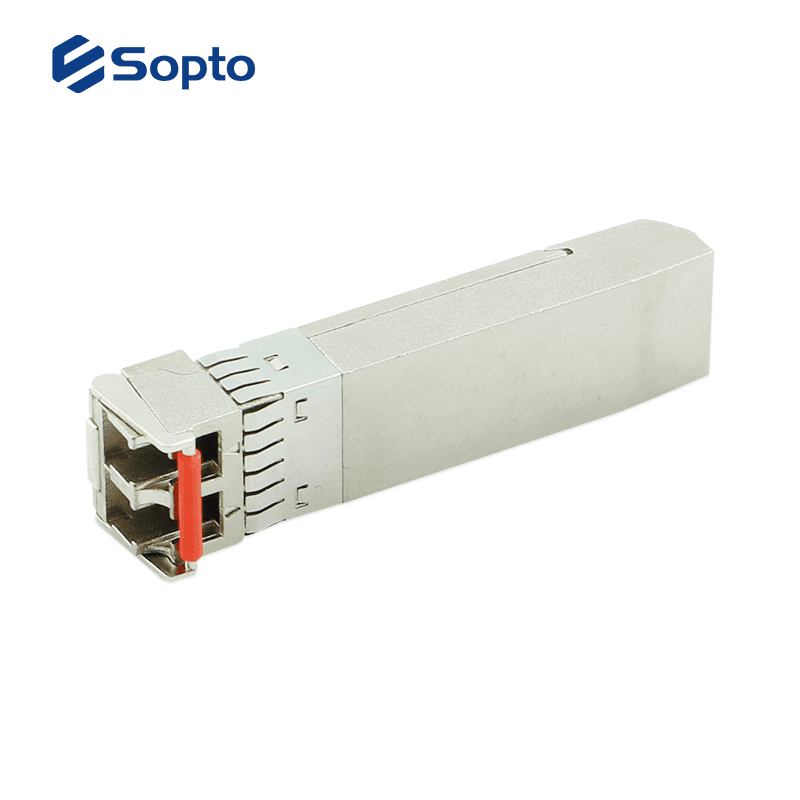

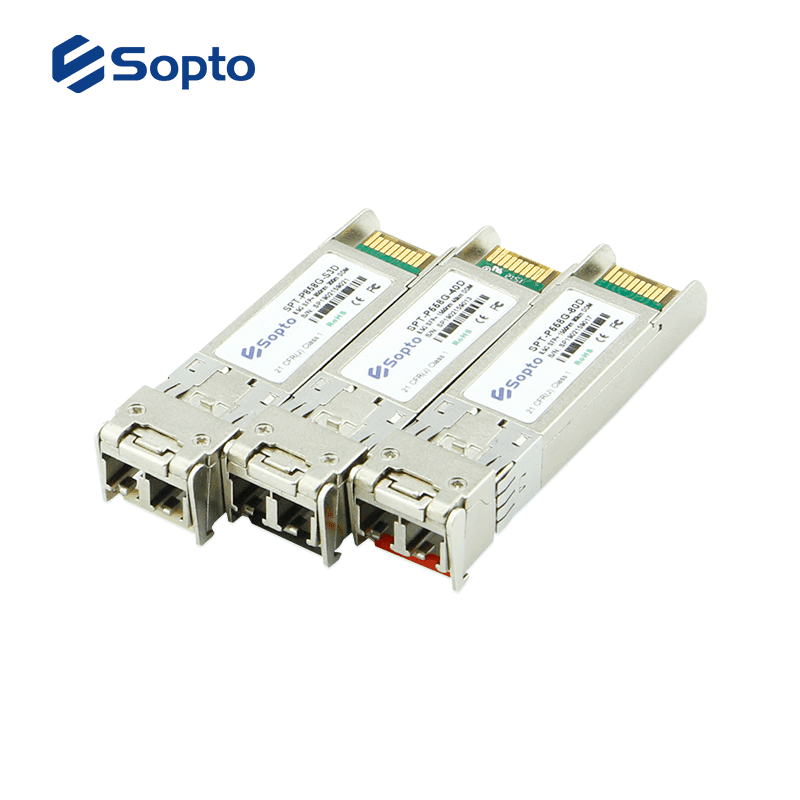

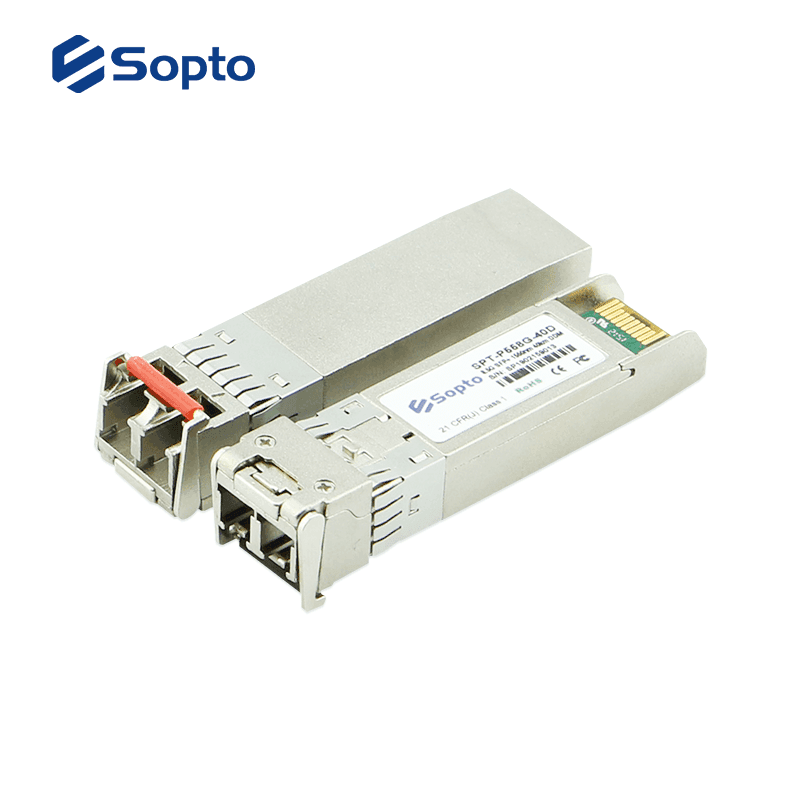

SOPTO’s 8G FC SFP+ is a series of optical transceiver modules designed for use in 8G/16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 8G FC SFP+ is a series of optical transceiver modules designed for use in 8G/16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● RoHS-6 compliant ● Duplex LC Interface ● Low power dissipation ● Single +3.3V power supply ● Supports data rates up to 8.5Gb/s ● Built-in digital diagnostic functions ● Support Multi-rate for 8G/4G/2G/1G FC ● Transmission distance up to 100m on MMF OM3 and 80km over SMF ● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C Hot Model P/N Description Details SPT-P858G-S3D 850nm 8.5G LC Connector 300m with DDM Commercial Temperature PDF SFP-P138G-10D 1310nm, 2.125/4.25/8.5Gbs, LC Connector 10 km with DDM Commercial Temperatu re PDF Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● 8X/4X/2X/1X FC at 8.5/4.25/2.125/1.0625Gbps Related Articles ● Single Mode Fiber Transceivers ● What is the Basic Principle of an Optical Module ● Fiber Optic Transceiver Module's Selection and Use Skills ● Introduction to common package types of optical modules Ordering Information PN Data Rate (Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM SPT-P858G-S3D 8.5 300m/OM3 MM -5 ～ -1 -11 Duplex LC 0 to 70 ℃ D SFP-P138G-10D 8.5 10km SM -5 ～ 0 -15 Duplex LC 0 to 70 ℃ D SFP-P138G-20D 8.5 20km SM -4 ～ 0 -15 Duplex LC 0 to 70 ℃ D SPT-P558G-40D 8.5 40km SM 0 ～ 3 -17 Duplex LC 0 to 70 ℃ D SPT-P558G-60D 8.5 60km SM 0 ～ 4 -22 Duplex LC 0 to 70 ℃ D SPT-P558G-80D 8.5 80km SM 0 ～ 5 -23 Duplex LC 0 to 70 ℃ D
