Aerial Fiber Cable
An aerial fiber optical cable is a fiber optic cable that is used on a pole. The aerial fiber optical cable laying method can utilize the original overhead open line pole to save construction costs and shorten the construction period. It is hung on the pole and is required to adapt to various natural environments. It is divided into hanging wire type, self-supporting type and non-self-supporting type.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

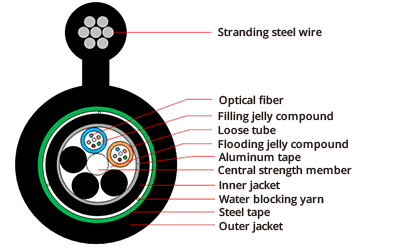

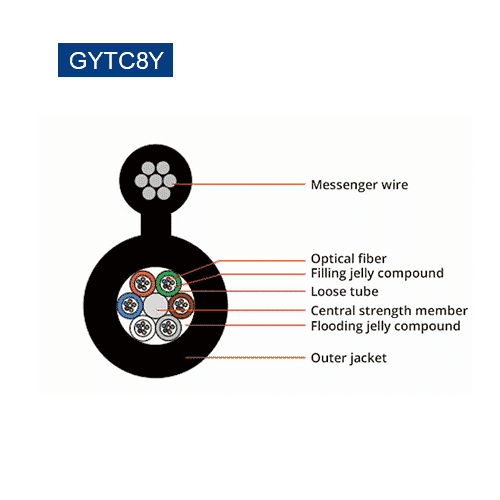

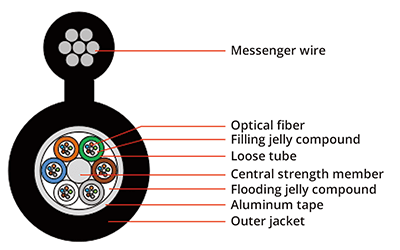

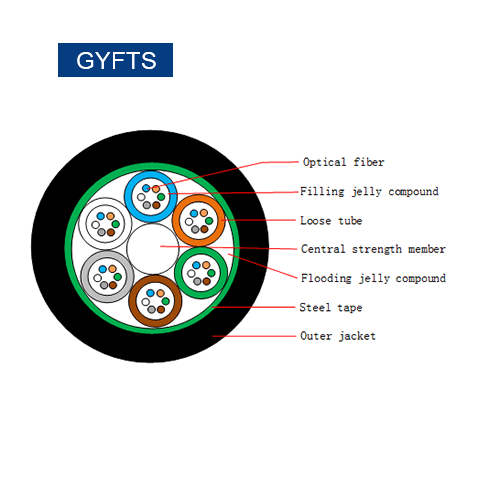

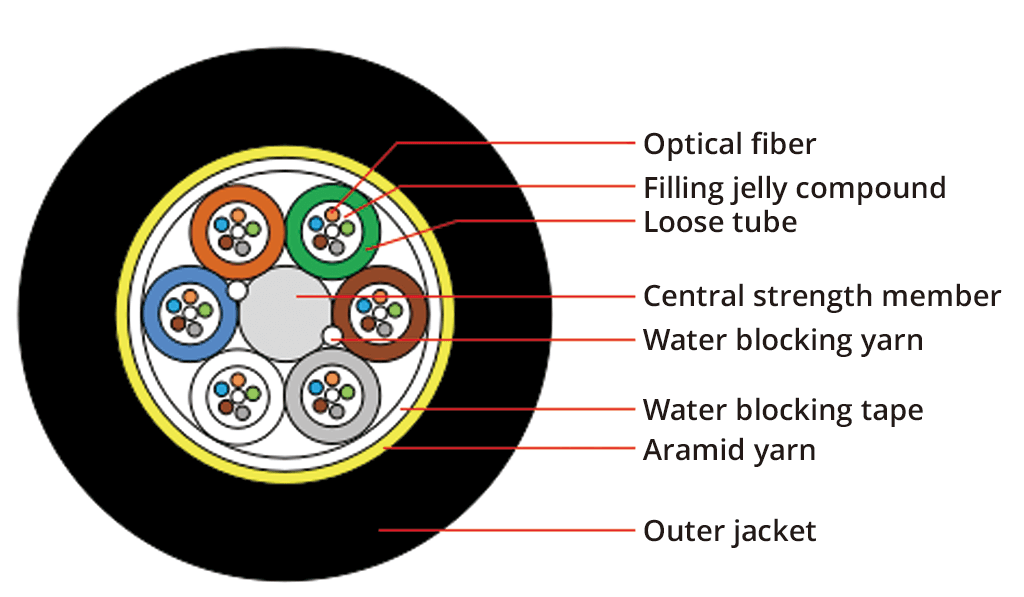

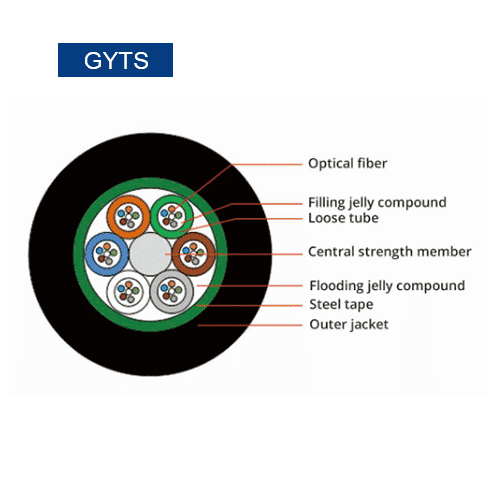

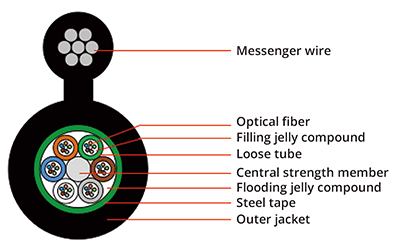

An aerial fiber optical cable is a fiber optic cable that is used on a pole. The aerial fiber optical cable laying method can utilize the original overhead open line pole to save construction costs and shorten the construction period. It is hung on the pole and is required to adapt to various natural environments. It is divided into hanging wire type, self-supporting type and non-self-supporting type. Feature ● 2 ~ 288 cores ● PE jacket with good resistance to ultraviolet radiation，the AT jacket can withstand high voltage induction field strong electric corrosion ● Figure‘8’Self-Supporting optical cable and ADSS optical cable ● Steel wire/FRP as strength member. ● Loose-tube twisted single sheath or central tube structure ● Wrinkled steel belt armored for non-self-supporting type aerial fiber optical cable ● High tensile steel strand wire for self-supporting type aerial fiber optical cable ● Loose sleeve material with good hydrolysis resistance and high strength; ● Compact structure，excellent waterproof performance, excellent mechanical performance and temperature performance ● Bunched or ribbon fiber ● SM (G.652D, G.655, G.657.A1) and MM (OM1, OM2, OM3, OM4) are available; ● PE, LSZH outer jacket material optional ● AT outer jacket for ADSS Hot Model ADSS GYXTW GYTC8A GYTC8S GYFTC8A53 GYFTC8Y53 Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system，and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC Applications ● Long-distance backbone network ● Urban ring network ● Access Network, FTTX ● Relay between communication machine rooms ● Building cable in integrated wiring Related Articles ● What is the armored fiber optic cable ● Optical Fiber and Optical Fiber Classification ● What is Principle of Optical Fiber Communication Ordering Information Cable Type Product Description Application GYTC8S Figure‘8’Self-Supporting optical cable , Metal strength member; Steel-polyethylene adhesive jacket Aerial GYTS Outdoor optical cable , Metal strength member; Steel-polyethylene adhesive jacket Aerial GYDTS Outdoor optical cable , Optical fiber ribbon, Metal strength member; Steel-polyethylene adhesive jacket Aerial GYFTS Outdoor optical cable ,Non-metal strength member ; Steel-polyethylene adhesive outer jacket Aerial GYTC8Y Figure‘8’Self-Supporting optical cable , Metal strength member; PE jacket Aerial GYXTC8Y Figure‘8’Self-Supporting optical cable; Central tube structure; Metal strength member; PE jacket; Aerial GYTC8A Figure‘8’Self-Supporting optical cable , Metal strength member , Aluminum-polyethylene adhesive jacket Aerial GYFTC8A Figure‘8’Self-Supporting optical cable , Non-metal strength member, Aluminum-polyethylene adhesive jacket Aerial GYTC8A53 Figure‘8’Self-Supporting optical cable , Metal strength member, Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket Aerial GYFTC8A53 Figure‘8’Self-Supporting optical cable ,Non-metal strength member,Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket Aerial GYFTC8Y53 Figure‘8’Self-Supporting optical cable , Non-metal strength member; PE inner jacket; Steel-polyethylene adhesive outer jacket Aerial ADSS Single or Double protector All dielectric Self-Supporting optical cable , Non-metal strength member; PE inner jacket; PE outer jacket; 50~100M span Aerial GYXTC8S Figure‘8’Self-Supporting optical cable,Central tube structure; Metal strength member; Steel-polyethylene adhesive jacket Aerial GYTC8Y53 Figure‘8’Self-Supporting optical cable,Metal strength member, PE inner jacket, Steel-polyethylene adhesive outer jacket Aerial GYFC8Y Figure‘8’Self-Supporting optical cable ,Non-metal strength member ,PE jacket Aerial GYTZS Outdoor optical cable,Metal strength member,Steel-LSZH adhesive jacket Aerial GYDTZS Outdoor optical cable,Optical fiber ribbon,Metal strength member,Steel-LSZH adhesive jacket Aerial GYFY All dielectric reinforced optical,cable,Non-metal strength member,Glass yarn strength,member,PE outer jacket Aerial or Duct GYFTY Outdoor optical cable ,Non-metal strength member ; PE jacket Aerial or Duct GYFXY Outdoor optical cable ,Central tube structure;Non-metal strength member,PE jacket Aerial or Duct GYXS Outdoor optical cable ,Central tube structure;Single steel wire armoring; Steel-polyethylene adhesive outer jacket Aerial or Duct GYDXTW Outdoor optical cable ,Optical fiber ribbon, Central tube structure; Steel-polyethylene adhesive outer jacket Aerial or Duct GYDFXY Outdoor optical cable ,Optical fiber ribbon,Central tube structure;Non-metal strength member ; PE jacket Aerial or Duct GYFTZY63 Outdoor optical cable , Non-metal strength member; HDPE inner jacket, Glass yarn strength member, LSZH Outer jacket Aerial or Duct GYFXZS Outdoor optical cable ,Central tube structure; Non-metal strength member ; Glass yarn strength member , Steel tape ； LSZH outer jacket Aerial or Duct GYFTZY Outdoor optical cable , Non-metal strength member; LSZH Outer jacket Aerial or Duct GYXTW Outdoor optical cable ,Metal strength member; PE jacket with steel wire Aerial or Duct GYFTY73 All dielectric reinforced optical cable , Non-metal strength member;PE inner jacket; Glass yarn strength member , PE outer jacket Aerial or Direct Buried GYFTZY63 Outdoor optical cable , Non-metal strength member; HDPE inner jacket; Glass yarn strength member ; LSZH Outer jacket Aerial or Direct Buried Notes： 1.Flooding jelly compound default 2.The relevant technical parameters can be adjusted according to the customers' demands; 3.The block water way can be adjusted according to the customers' demands; 4.The design flame resistance, anti-rodent, termite resistant cable according to the customers' demands
