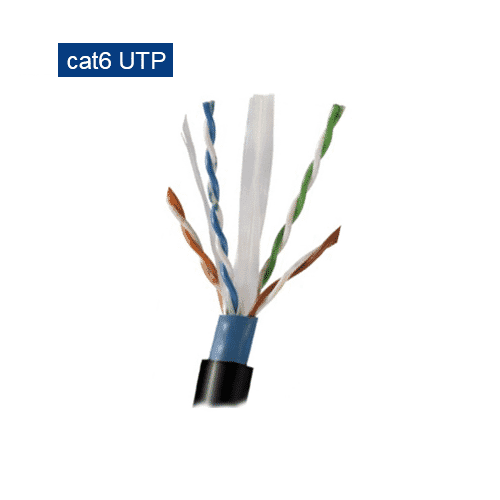

Cat6/6a UTP LAN Ethernet Cable
The Cat6 LAN cables transmission performance is much higher than the Cat5e standard, making it ideal for Gigabit-rate network transmission applications.The Cat6 LAN cable has a transmission bandwidth of 250MHz.The Cat6a LAN cable is an improved version of Cat6 and is used primarily in 10 Gigabit networks. The Cat6a LAN cable has a transmission bandwidth of 500 MHz and a maximum transmission speed of 10 Gbps.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

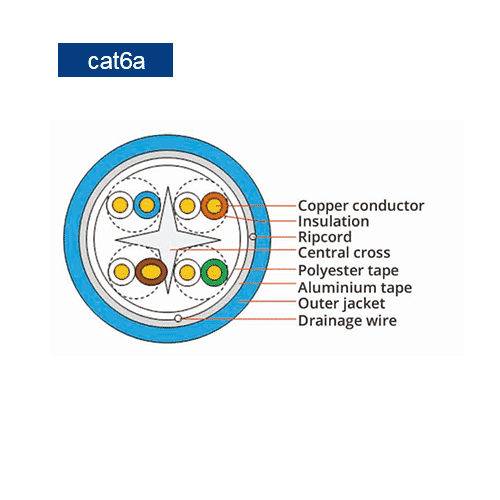

The Cat6 LAN cables transmission performance is much higher than the Cat5e standard, making it ideal for Gigabit-rate network transmission applications.The Cat6 LAN cable has a transmission bandwidth of 250MHz.The Cat6a LAN cable is an improved version of Cat6 and is used primarily in 10 Gigabit networks. The Cat6a LAN cable has a transmission bandwidth of 500 MHz and a maximum transmission speed of 10 Gbps. Feature ● FTP or UTP ，SFTP ● 26AWG/24AWG/23AWG ● PVC/PE/LSZH Jacket optional ● Standard supports up to 250MHz and speeds up to 1000Mbp/s over 100 meters of Cat6 cable. ● Fully backward compatible with all the previous categories. ● RJ-45 plugs on both sides of the short LAN cable are designed with 50 mm gilt, with good contact and transmission properties, oxidation resistance, rust, and no blackening. ● Operating Temperature: -20 to 60°C RJ-45 plugs on both sides of the short LAN cable meet the standards of EIA / TIA -568B or 568A UTP is the least-expensive Ethernet cable as without extra sheilding, it usually used in home and small office networks FTP offers an additional layer of protection with shielding (also called screening) wrapped around the individual twisted wires. S/FTP is a combination of the two above, with foil shielding around the individual twisted wires and an overall screen which can sometimes be a flexible braid. Sopto can provide a variety of colors of the network cables, such as yellow, orange, purple, green, red, etc. If you want a special customized service, please contact us. Applications ● LAN ● Data Center ● Network wiring project ● Connection between switches, servers, patch panels or other equipment Ordering Information CAT6/6A FTP CAT6/6A UTP
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
