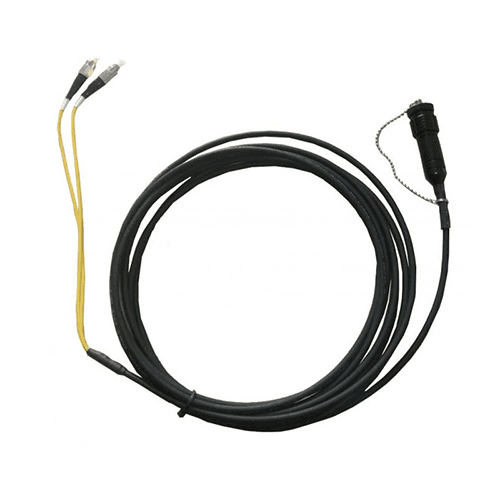

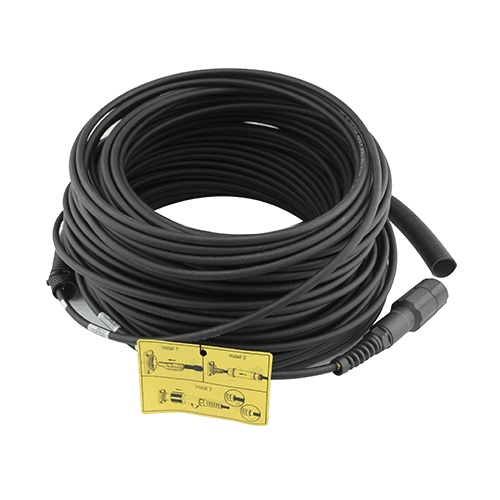

CPRI Patch Cords
The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. SOPTO supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

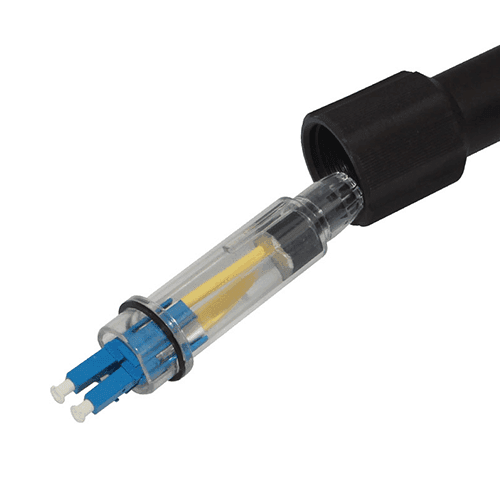

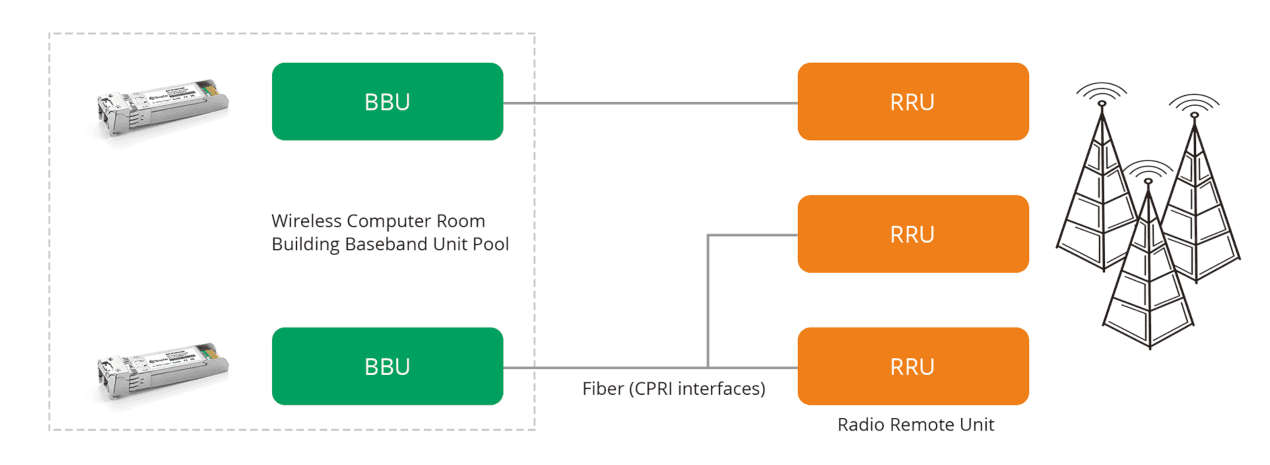

The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. SOPTO supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application. Feature ● The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc; ● Standard Duplex LC connector, well connected with standard LC adaptor ● Available Single mode and Multimode ● IP67 protection, salt-mist proof, humidity proof, dust proof ● Low insertion/return loss, steady optical transmitting. ● Light weight, waterproof, dustproof, moisture proof, Metal hard housing. ● 500cycles Mechanical life G.652D For example No. Items Unit Specification G.652D 1 Mode Field Diameter 1310nm μm 9.2±0.4 1550nm μm 10.4±0.5 2 Cladding Diameter μm 124.8±0.7 3 Cladding Non-Circularity % ≤0.7 4 Core-Cladding Concentricity Error μm ≤0.5 5 Coating Diameter μm 245±5 6 Coating Non-Circularity % ≤6.0 7 Cladding-Coating Concentricity Error μm ≤12.0 8 Cable Cutoff Wavelength nm λc≤1260 9 Attenuation(max.) 1310nm dB/km ≤0.4 1550nm dB/km ≤0.3 Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs Applications ● Widely used in FTTA & FTTH ● Used for 3G 4G base station ● BBU, RRU, RRH, LTE Related Articles ● What is CPRI Cable ● Difference between PC, UPC and APC ● Differences of OM1, OM2, OM3 and OM4 cables ● What is Armoured Patch Cord Ordering Information Part Number : SPP- CPRI- LC - LC - U U - 2 D - 70 – 100 H P-C(-09-0.4) 1 2 3 4 5 6 7 8 9 10 11 1 - Connector A LC 2 - Connector B LC SC FC etc 3 – Endface A U：UPC polish; P：PC polish; A：APC polish 4 – Endface B U：UPC polish; P：PC polish; A：APC polish 5 - Fiber Count 2: Duplex; 1: Simplex 6 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M4: OM4; D: G.652D; A1: G657.A1; A2: G657.A2 7 - Diameter 70: 7.0mm; 48: 4.8mm 8 - Length 100: Cable total length 100M ; etc 9 - Cable Jacket Materials H:LSZH 10 - Type 1. Null: Without armour or waterproof cover, with 2.0mm&0.5M branch 2. B: Armour on both sides, with 2.0mm&0.5M branch 3. P-X: with a waterproof cover on one side, with 2.0mm&0.5M branch at the other side PB-X: with a waterproof cover on one side, with 2.0mm&0.5M armored branch at the other side PP-X: with Waterproof cover on both sides At present, there are three kinds of waterproof cover. X=A,B or C A refers to Full AXS cover, suitable for 4.8mm cable diameter; B refers to ODVA cover, suitable for 5.0-7.0mm cable diameter; C refers to NSN cover, suitable for 5.0-7.0mm cable diameter 11 - Additional instructions onbranches 1.Null: Default 2.0mm&0.5M branch 2. for example “-09-0.4” refers to 0.4M branch 0.9mm branch The default branch diameter is 2.0mm, -09 : 0.9mm branch diameter , -30: 3.0mm branch diameter. The default branch length is 0.5M, -Y : the other branch lengths (unit: m, added at the end of the model.) Y≥0.1 ， Branch without armour ； Y≥0.13 ， Armored Branch ；
