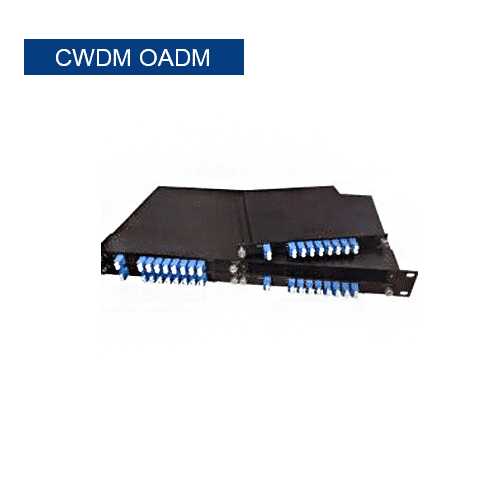

CWDM OADM
CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.CWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations supporting up to four wavelengths.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.CWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations supporting up to four wavelengths. Feature ● Low insertion loss ● Protocol transparent (support 1G, 10G etc.) ● Based on thin film optics with epoxy free optical path ● Fully compliant with Telcordia GR1221, GR1209, RoHS, ISO ● Ideal for WDM ring structures or daisy chain applications ● ADD<==>EXP, DROP<==>COM ● Multiple packages available Specifications Parameter Unit Specification Wavelength Range nm 1260 ~ 1620 Center Wavelength nm Customer specified Channel Spacing nm 20 Passband nm CW±6.5 Insertion Loss COM==>DROP dB ≤1.5 ADD==>EXP Adjacent Isolation dB ≥30 Non-Adjacent Isolation dB ≥45 PDL dB ≤0.1 Directivity dB ≥50 Return Loss dB ≥45 PMD ps ≤0.1 Power handling(CW) mW ≤300 Operating Temperature ℃ -10 to +70 Storage Temperature ℃ -40 to +85 Fiber Type G.657.A1 or G.652D Fiber Diameter 3.0mm or 2.0mm ， 0.9mm with loose tube Connector Type LC/UPC or others Fiber Length m 1 or others Optional Moniter port % 1 Package Dimensions mm ABS Cassete:100*80*10.5；140*115*18; ABS mini box ： 90x20x10； Steel tube :Φ5.5*38； LGX or 19 inch Rack fixed Applications Applications in WDM Network Ordering Information Ordering Info. for OADM Part Number ： SPWM-O-49A1-20-1LLU-A 123 4567 8 9101112 Product Description ： OADM Dual Fiber ABS Cassette 1 wavelength 1490nmADD/1490nmDROP G.657.A1 2.0mm Diameter 1M Fiber length with LC/UPC connector 1 - Number of wavelengths Null:1 wavelength; 2:2 wavelengths; 2 - Type O:OADM 3 - Optional functions M:Moniter port; 4 - Wavelength 27:1270nm; 29:1290nm; 31:1310nm; 33:1330nm; 35:1350nm; 37:1370nm; 39:1390nm; 41:1410nm; 43:1430nm; 45:1450nm; etc 5 - Communication Type S:Single fiber; Null:Dual fiber; 6 - Fiber Type D:G.652D; A1:G.657.A1; 7 - Fiber Diameter 20 ： 2.0mm; 09 ： 0.9mm with loose tube; Does not show in LGX and 19 inch Rack fixed 8 - Fiber length 1 ： 1M or others; Does not show in LGX and 19 inch Rack fixed 9 - COM ports L :LC; S:SC; F:FC; 10 - Other ports L :LC; S:SC; F:FC; 11 - Endface U :UPC polish; P :PC polish; A :APC polish 12- Package A:ABS Cassette or mini ABS box; B:Steel tube; L:LGX; R:19 inch Rack fixed
