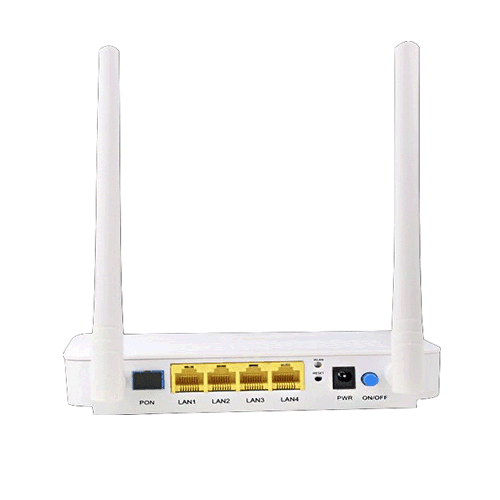

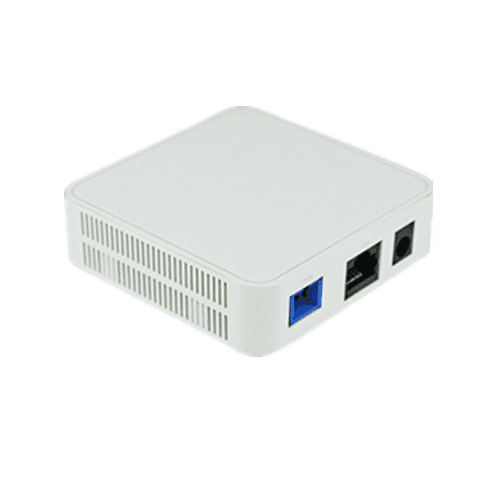

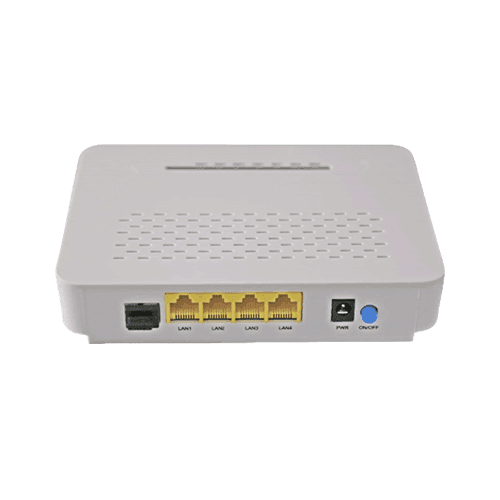

DATA EPON ONU WIFI Optional
SOPTO Data Epon ONU series Includes Wifi or not is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the EPON network.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO Data Epon ONU series Includes Wifi or not is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the EPON network. Feature ● GE or FE LAN ports ● Support port-based rate limitation and bandwidth control ● In compliant with IEEE802.3ah Standard ● Wi-Fi type optional ， Wi-Fi series meet 11 n/b/g technical standards ● Up to 20KM transmission Distance ● Support data encryption, group broadcasting, port Vlan separation ● Support Dynamic Bandwidth Allocation (DBA) ● Support ONU auto-discovery/Link detection/remote upgrade of software ● Support port mode of VLAN configuration ● Support power-off alarm function, easy for link problem detection ● Support broadcasting storm resistance function ● Support port isolation between different ports ● Support port flow control ● Support ACL and SNMP to configure data packet filter flexibly ● Specialized design for system breakdown prevention to maintain stable system Specification Item Para m e t e r PON Interface ● 1 EPON optical interface ● Meet 1000BASE‐PX20+ standard ● Symmetric 1.25Gbps upstream/downstream ● SC single‐mode fiber split ratio: 1:64 ● Transmission distance 20KM User Ethernet Interface ● 4*10/100M or 4*10/100/1000M auto-negotiation ● Full/half duplex mode ● RJ45 connector ● 100m distance ● Auto MDI/MDI-X Power Interface 12V DC Power supply PON Optical Parameter ● Wavelength: Tx 1310nm, Rx1490nm ● Tx Optical Power: 0～4dBm ● Rx Sensitivity: ‐27dBm ● Saturation Optical Power: ‐3dBm ● Connector Type: SC ● Optical Fiber: 9/125ɥm single‐mode fiber Data Transmission Parameter ● PON Throughput: Downstream 950Mbps; Upstream 930Mbps ● Ethernet: 100Mbps or 1000Mbps ● Packet Loss Ratio: <1*10E‐12 ● latency: <1.5ms Business Capability ● L a y e r 2 wir e sp ee d s wi t chin g ● Support VLAN TAG/UNTAG，VLAN conversion ● Support Port-based speed limitation ● Support Priority classification ● Support storm control of roadcast ● Support loop detection Management Function S t a t u s mo ni to r , Co nfigura t i on m anage m en t, Alar m m anage m en t, Log m anage m en t Shell Plastic casing Environmenta l Specifications ● Oper ating temperature: 0 to 50ºC ● Storage temperature: -40 to 85ºC ● Operating humidity: 10% to 90%(Non-condensing) ● Storage humidity: 10% to 90%(Non-condensing) Sopto's hot model Product Name Part NO. Description Details 1GE+WIFI HGU Type SPU-E120W-HR 1*10/100/1000M Ethernet interface, 1 EPON interface, Wifi, plastic casing , external power supply adapter PDF 4GE+WIFI HGU type SPU-E420W-HR 4*10/100/100 0M Ethernet interface, support Wi-Fi function, 1 EPON interface , plastic casing, external power supply adapter PDF More ONU type, please refer to ordering information column. ------------------------------------------------------------------------------------------------------------------------------- ------------------------------------ --- EPON OUN User Manual Download link ： https://pan.baidu.com/s/1nedm5Rhmas7GpIDoeXnpLQ Code ： gfva Applications Applications in FTTH Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Brief Information Product Model Descriptions 1GE SPU-E120-HZ 1*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter 1GE+1FE SPU-E120-HT 1*10/100M and 1*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter 1GE+1FE+1POTS SPU-E231-HZ 1*10/100M and 1*10/100/1000M Ethernet interface,1*POTS port, 1 EPON interface, plastic casing, external power supply adapter 1GE+WIFI SPU-E120W-HR 1*10/100/1000M Ethernet interface, 1 EPON interface, support Wifi function; plastic casing, external power supply adapter 1GE Outdoor type SPU-E120-YZ Built -in one ONU module, One 10/100/1000M Ethernet Ports, one EPON Port, aluminum casing, 220VAC power supply 4FE SPU-E410-HR 4*10/100M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter 4GE SPU-E420-HR 4*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter 4GE SPU-E420-HB 4*10/100/1000M Ethernet interface, 1 EPON interface, black metal casing, external power supply adapter 4GE+PD SPU-ED420-BR 4*10/100/1000M Ethernet interface, 1 EPON interface, black metal casing, external power supply adapter, With 802.3af POE PD function 4FE+WIFI SPU-E410W-HR 4*10/100/1000M Ethernet interface, 1 EPON interface, black metal casing, external power supply adapter 4GE+WIFI SPU-E420W-HR 4*10/100/1000M Ethernet interface, 1 EPON interface, support Wifi function, plastic casing, external power supply adapter 8FE SPU-E810-BT 8*10/100M Ethernet interface, 1*EPON interface, Metal shell casing,220VAC Power supply, external power supply adapter 8FE+PD SPU-ED810-BT 8*10/100M Ethernet interface, 1*EPON interface, Metal shell, 220VAC Power supply, With 802.3af POE PD function
