DATA GPON ONU WIFI Optional

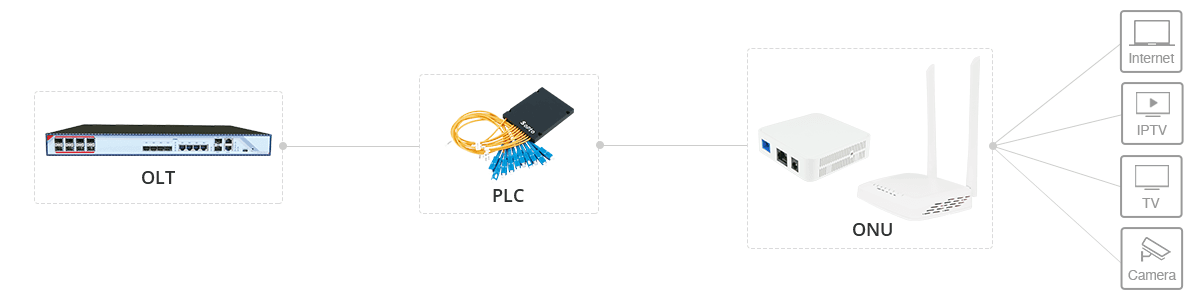

SOPTO Data GPON ONU series Includes Wifi or not is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, video service based on the GPON network.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO Data GPON ONU series Includes Wifi or not is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, video service based on the GPON network. Feature ● GE or FE LAN ports ● Support port-based rate limitation and bandwidth control ● In compliant with ITU-T G.984 Standard ● Wi-Fi type optional ， Wi-Fi series meet 802.11 n/b/g technical standards ● Support data encryption, group broadcasting, port Vlan separation, etc. ● Support Dynamic Bandwidth Allocation (DBA) ● Support ONU auto-discovery/Link detection/remote upgrade of software; ● Support port mode of VLAN configuration ● Support power-off alarm function, easy for link problem detection ● Support broadcasting storm resistance function ● Support port isolation between different ports Specification Item Parameter PON Interface ● 1*GPON port, FSAN G.984.2 standard, Class B+ ● Downstream Data Rate：2.488Gbps ● Upstream Data Rate：1.244Gbps ● SC/PC single mode fiber ● 28dB Link loss and 20KM distance with 1:128 Power Interface 12V DC Power supply PO N Optical Parameter ● Wavelength: Tx 1310nm, Rx1490nm ● Tx Optical Power: 0～5dBm ● Rx Sensitivity: -28dBm ● Saturation Optical Power: -8dBm ● Connector Type: SC ● Optical Fiber: 9/125μm single-mode fiber Data Tran smission Parameter ● PON Throughput: Downstream 2.488Gbit/s s; ● Upstream 1.244Gbit/s ● Ethernet: 100Mbps or 1000Mbps ● Packet Loss Ratio: <1*10E-12 latency: <1.5ms Bu siness Capability ● Layer 2 wire speed switching ● Support VLAN TAG/UNTAG ， VLAN conversion ● Support Port-based speed limitation ● Support Priority classification ● Support storm control of broadcast ● Support loop detection Manag ement Function ● Status monitor, ● Configuration management, ● Alarm management, ● Log management Shell Plastic casing Environmenta l Specifications ● Operating temperature: 0 to 50ºC ● Storage temperature: -40 to 85ºC ● Operating humidity: 10% to 90%(Non-condensing) ● Storage humidity: 10% to 90%(Non-condensing) Sopto's hot model Product Name Part NO. Descriptions Details 1GE+WIFI HGU SPU-G120W-HR 1*10/100/1000M Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter PDF 4GE+WIFI HGU type SPU-G420W-HR 4*10/100/1000M Ethernet interface, support Wi-Fi function, 1 GPON interface, plastic casing, external powersupply adapter PDF More ONU type, please refer to ordering information column. --------------------------------------------------------------------------------------------------------------------------------- GPON OUN User Manual Download link： https://pan.baidu.com/s/1PcRK3rPll6fxXXqjMMQTLw Code ： fv4x Applications Applications in FTTH Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Brief Information Product Model Descriptions 1GE SPU-G120-HZ 1*10/100/1000M Ethernet interface, 1 GPON interface, plastic casing, external po wer supply adapter 1GE+WIFI SPU-G120W-HR 1*10/100/1000M Ethernet interface, 1 GPON interface, support Wifi function; plastic casing, external power supply adapter 1GE Outdoor type SPU-G120-YZ Built -in one ONU module, One 10/100/1000M Ethernet Ports, one GPON Port, aluminum casing, 220VAC power supply 4FE SPU-G410-HR 4*10/100M Ethernet interface, 1 GPON interface, plastic casi ng, external power supply adapter 1GE+3FE+WIFI SPU-G440W-HR 1*10/100/1000M and 3*10/100M Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter 4GE SPU-G420-HR 4*10/100/1000M Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter 4GE SPU-G420-HB 4*10/100/1000M Ethernet interface, 1 GPON interface, black metal casing, external power supply adapter 4FE+WIFI SPU-G410W-HR 4*10/100M Ethernet interface, 1 GPON interface, black metal casing, external power supply adapter 4GE+WIFI SPU-G420W-HR 4*10/100/1000M Ethernet interface, 1 GPON interface, support Wifi function, plastic casing, external power supply adapter 4GE+WIFI(2.4&5Ghz) +2POTS SPU-G422WD-HZ 4*10/100/1000M Ethernet interface, 1 GPON interface, 2 POTS interface,1 USB interface, support Double Frequency Wi-Fi function, Plastic casing, external power supply adapter
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
