Direct Buried Fiber Cable
Direct Buried Outdoor Cable, externally wrapped with steel tape or steel wire, directly buried in the ground, requires resistance to external mechanical damage and soil corrosion resistance.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

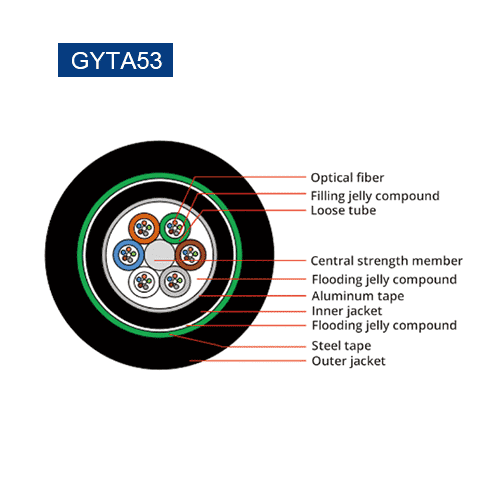

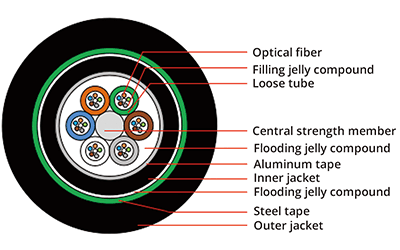

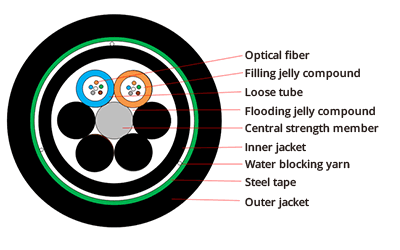

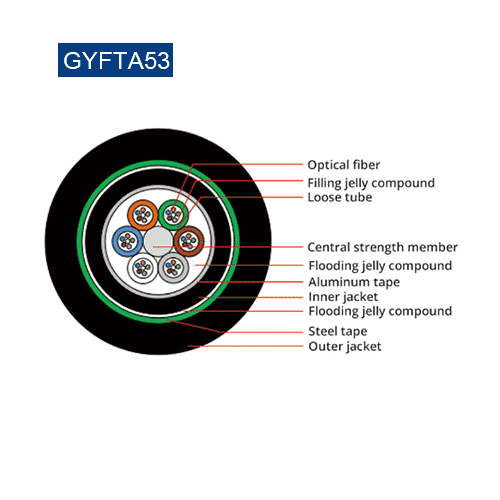

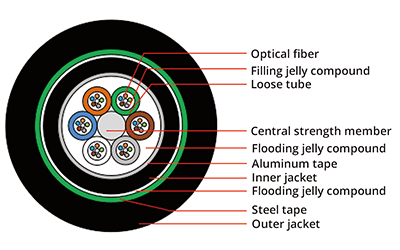

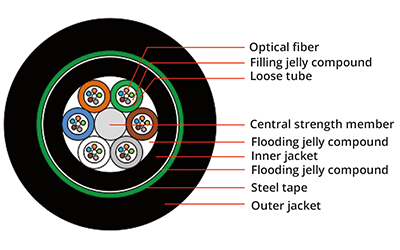

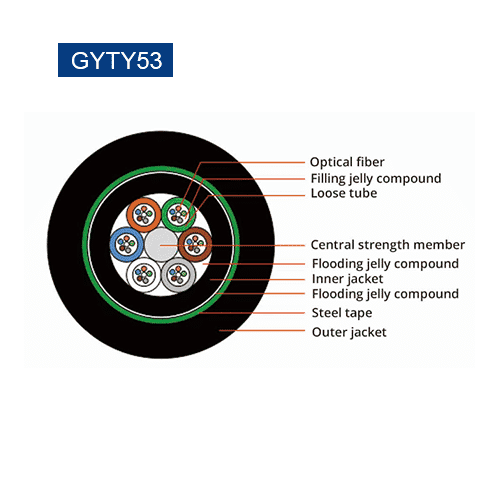

Direct Buried Outdoor Cable, externally wrapped with steel tape or steel wire, directly buried in the ground, requires resistance to external mechanical damage and soil corrosion resistance. Feature ● 2 ~ 576 cores ● Steel wire/FRP as strength member. ● Must be double Jacketed, with at least one layer of armor. ● Good resistance to lateral pressure and softness ● Loose-tube twisted single sheath or central tube structure ● Loose sleeve material with good hydrolysis resistance and high strength; ● Compact structure，excellent waterproof performance, excellent mechanical performance and temperature performance ● Bunched or ribbon fiber ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available; ● PE, LSZH outer jacket material optional Hot Model GY FTA53 GYTA53 GYFTY53 GYTY53 Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system，and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC Applications ● Long-distance backbone network ● Urban ring network ● Access Network, FTTX ● Relay between communication machine rooms ● Building cable in integrated wiring Related Articles ● What is the armored fiber optic cable ● Optical Fiber and Optical Fiber Classification ● What is Principle of Optical Fiber Communication Ordering Information Cable Type Product Description Application GYTA53 Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive inner jacket; Steel-polyethylene adhesive outer jacket Direct Buried GYFY53 Semi-dry optical cable , Non-metal strength member; Water blocking tape ； Water blocking yarn ;Glass yarn strength member ； PE inner jacket; Steel-polyethylene adhesive outer jacket Direct Buried GYTY53 Outdoor optical cable, Metal strength member, PE inner jacket; Steel-polyethylene adhesive outer jacket Direct Buried GYFTA53 Outdoor optical cable, Non-metal strength member, Aluminum-polyethylene adhesive inner jacket; Steel-p olyethylene adhesive outer jacket Direct Buried GYFTY63 Outdoor optical cable , Non-metal strength member; PE inner jacket; Glass yarn strength member; PE Outer jacket Direct Buried GYFTY53 Outdoor optical cable , Non-metal strength member, PE inner jacket; Steel-PE adhesive outer jacket Direct Buried GYTA5333 Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive and Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoring ； PE Outer jacket Direct Buried or Submarine GYFTY33 Outdoor optical cable , Non-metal strength member, PE inner jacket; Single smaller round steel wire armoring ； PE Outer jacket Direct Buried or Submarine GYFTY73 All dielectric reinforced optical cable ， Non-metal strength member; PE inner jacket; Glass yarn strength member, PE outer jacket Aerial or Direct Buried GYFTZY63 Outdoor optical cable , Non-metal strength member; HDPE inner jacket; Glass yarn strength member; LSZH Outer jacket Aerial or Direct Buried Notes： 1.Flooding jelly compound default 2.The relevant technical parameters can be adjusted according to the customers' demands; 3.The block water way can be adjusted according to the customers' demands; 4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’ demands.
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
