Duct Fiber Cable
The duct fiber optical cable is used for the outdoor cable in the access network or the customer premises network. Pipeline optical cable is generally used in urban areas. The environment in which the pipeline is laid is relatively good. Therefore, there is no special requirement for the cable sheath, and no armoring is required. The length of the laying section and the position of the splicing point must be selected before laying the pipe.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

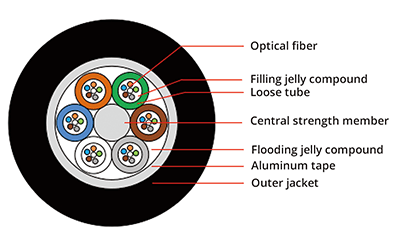

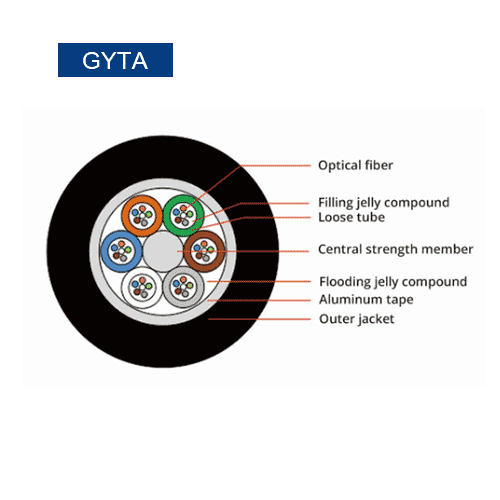

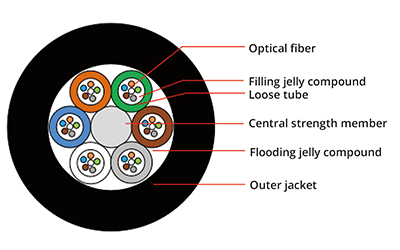

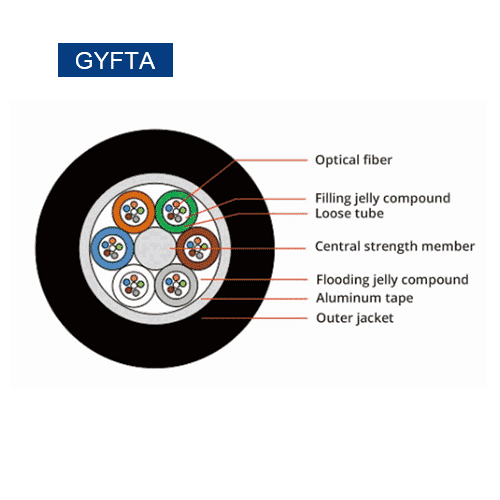

The duct fiber optical cable is used for the outdoor cable in the access network or the customer premises network. Pipeline optical cable is generally used in urban areas. The environment in which the pipeline is laid is relatively good. Therefore, there is no special requirement for the cable sheath, and no armoring is required. The length of the laying section and the position of the splicing point must be selected before laying the pipe. Feature ● 2 ~ 576 cores ● Steel wire/FRP as strength member. ● Aluminum tape is more suitable for piping ● Loose-tube twisted single sheath or central tube structure ● Loose sleeve material with good hydrolysis resistance and high strength; ● Compact structure，excellent waterproof performance, excellent mechanical performance and temperature performance ● Bunched or ribbon fiber ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available; ● PE, AT，LSZH outer jacket material optional Hot Model GYTA GYFTY Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system，and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC Applications ● Long-distance backbone network ● Urban ring network ● Access Network, FTTX ● Relay between communication machine rooms ● Building cable in integrated wiring Related Articles ● What is the armored fiber optic cable ● Optical Fiber and Optical Fiber Classification ● What is Principle of Optical Fiber Communication Ordering Information Cable Type Product Description Application GYTA Outdoor optical cable ,Metal strength member; Aluminum-polyethylene adhesive jacket Duct GYDTA Outdoor optical cable ,Optical fiber ribbon, Metal strength member; Aluminum-polyethylene adhesive jacket Duct GYFTA Outdoor optical cable ,Non-metal strength member ; Aluminum-polyethylene adhesive jacket Duct GYTZA Outdoor optical cable ,Metal strength member; Aluminum-LSZH adhesive jacket Duct GYDTZA Outdoor optical cable, Optical fiber ribbon, Metal strength member; Aluminum-LSZH adhesive jacket Duct GYDFXY Outdoor optical cable ,Optical fiber ribbon, Central tube structure;Non-metal strength member ; PE jacket Duct GYFY All dielectric reinforced optical cable ， Non-metal strength member; Glass yarn strength member ,PE outer jacket Aerial or Duct GYFTY Outdoor optical cable ,Non-metal strength member ; PE jacket Aerial or Duct GYFXY Outdoor optical cable ,Central tube structure;Non-metal strength member ; PE jacket Aerial or Duct GYXS Outdoor optical cable ,Central tube structure;Single steel wire armoring; Steel-polyethylene adhesive outer jacket Aerial or Duct GYDXTW Outdoor optical cable ,Optical fiber ribbon, Central tube structure; Steel-polyethylene adhesive outer jacket Aerial or Duct GYDFXY Outdoor optical cable ,Optical fiber ribbon,Central tube structure;Non-metal strength member ; PE jacket Aerial or Duct GYFTZY63 Outdoor optical cable , Non-metal strength member; HDPE inner jacket; Glass yarn strength member ； LSZH Outer jacket Aerial or Duct GYFXZS Outdoor optical cable ,Central tube structure;Non-metal strength member ; Glass yarn strength member ； Steel tape ； LSZH outer jacket Aerial or Duct GYFTZY Outdoor optical cable , Non-metal strength member; LSZH Outer jacket Aerial or Duct GYXTW Outdoor optical cable ,Metal strength member; PE jacket with steel wire Aerial or Duct Notes： 1.Flooding jelly compound default 2.The relevant technical parameters can be adjusted according to the customers’ demands; 3.The block water way can be adjusted according to the customers’ demands; 4.The design flame resistance,anti-rodent,termite resistant cable can be adjusted according to the customers’ demands.
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
