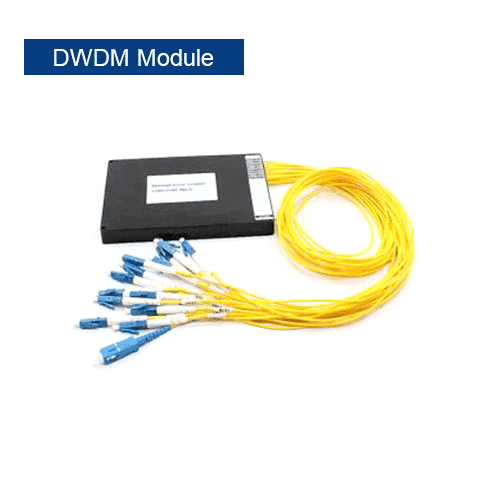

DWDM Module
DWDM Module is usually act as the internal unit of DWDM MUX/DEMUX, it is usually designed to be a ABS Cassette.1*2 DWDM filter is usually a Steel tube or a mini ABS box.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
DWDM Module is usually act as the internal unit of DWDM MUX/DEMUX, it is usually designed to be a ABS Cassette.1*2 DWDM filter is usually a Steel tube or a mini ABS box. Feature ● Low insertion loss ● Based on thin-film filter or AWG technology ● DWDM 100GHz or 50GHz ITU Channel Spacing，C17-C61 & H17-H61 , X channels over Single or Duplex fiber ● LC/SC/FC/ST, UPC/APC Interface are available ● Rate transparent for applications up to 10Gbps ● Monitor/Upgrade/1310nm Express port for external functions ● Completely passive, no electric power required ● Small in size ,can be quick installed in various boxes Specifications： Parameter Unit Specification Operating Wavelength Range nm 1500 ~ 1600 Channel Number - X+UPG Center Wavelength nm Customer specified X wavelengths ,such as C53 C54 C55 C56 C57 C58 C59 C60 (X=8) etc Channel Spacing GHz 100 Channel Passband(@-0.5dB) nm ≥0.11 Insertion Loss(With Connector) dB ≤3.2 Adjacent Channel Isolation dB ≥30 Non-Adjacent Isolation dB ≥40 UPG Port Isolation dB ≥12 PDL dB ≤0.2 Directivity dB ≥50 Return Loss dB ≥45 PMD ps ≤0.20 Operating Temperature ℃ -10 to +70 Storage Temperature ℃ -40 to +85 Fiber Type G657A1 Fiber Connector Type LC/UPC or others Communication Type Single or Dual Fiber Optional functions 1310 Express port: 1310+/-40nm; Upgrade port: Unused wavelength section ； Moniter port: 1%; Note：The specific parameters are subject to the product specifications. Applications Applications in DWDM Network Ordering Information Ordering Info. for DWDM Module Part Number ： SPWM-4XM-32SA1-20-1FFP-A 123 4567 8 9101112 1314 Product Description ： DWDM 100GHz Module Single Fiber ABS Cassette 4 wavelengths C32-C35 G.657.A1 2.0mm Diameter 1M Fiber length with FC/PC connector Ordering Info. for WDM Fliter Part Number ： SPWM-F-X4451D-09-1LLP-B 12 5 7 8 9101112 13 Product Description ： 1x2 WDM filter Steel tube DWDM 100GHz C44-C51 Pass G.652D 0.9mm Diameter with loose tube 1M Fiber Length with LC/PC connector 1 - Number of wavelengths 8:8 wavelengths; 16:16 wavelengths; 40:40 wavelengths; etc 2 - Type XM:100GHz DWDM Mux/Demux; WM:50GHz DWDM Mux/Demux; F:1x2 WDM filter 3 - Optional functions E:1310nm Express port; F:1550nm port; M:Moniter port; U:Upgrade Port 4 - First wavelength XX:XX refers to the Channel Number; 17: 1563.86 nm (channel 17); 45:1541.35(channel 45); etc Range: 1528.77 nm (channel 61) to 1563.86 nm (channel 17) 5 - Communication Type S:Single fiber; Null:Dual fiber; 6 - Fiber Type D:G.652D; A1:G.657.A1; 7 - Fiber Diameter 20 ： 2.0mm; 09 ： 0.9mm with loose tube 8 - Fiber length 1 ： 1M or others 9- COM ports L :LC; S:SC; F:FC; 10 - Other ports L :LC; S:SC; F:FC; 11 - Endface U :UPC polish; P :PC polish; A :APC polish 12- Package A:ABS Cassette or mini ABS box; B:Steel tube; 13 - Height Null:1U; 2:2U; 3:3U; etc
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
