DWDM MUX/DEMUX
DWDM system supports ultra-long-haul transmission via a single fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of up to 100G/200G per channel.The DWDM passive Mux/Demux modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution.SOPTO DWDM Mux/Demux are modular, scalable and are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

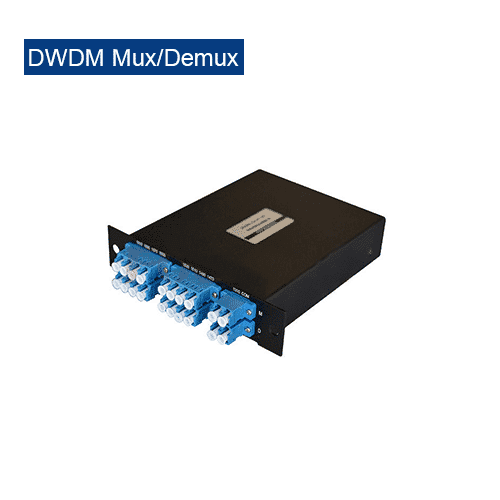

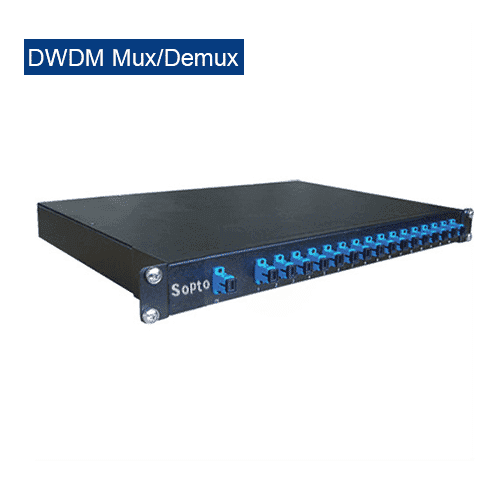

DWDM system supports ultra-long-haul transmission via a single fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of up to 100G/200G per channel.The DWDM passive Mux/Demux modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution.SOPTO DWDM Mux/Demux are modular, scalable and are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks. Feature ● Low insertion loss ● Based on thin-film filter or AWG technology ● DWDM 100GHz or 50GHz ITU Channel Spacing，C17-C61 & H17-H61 , X channels over Single or Duplex fiber ● LC/SC/FC/ST, UPC/APC Interface are available ● Rate transparent for applications up to 10Gbps ● Monitor/Upgrade/1310nm Express port for external functions ● Completely passive, no electric power required ● Low-profile modular LGX box design optional, fits in LGX chassis Specifications Parameter Unit Specification Operating Wavelength Range nm 1500 ~ 1600 Channel Number - X+UPG Center Wavelength nm Customer specified X wavelengths ,such as C53 C54 C55 C56 C57 C58 C59 C60 (X=8) etc Channel Spacing GHz 100 Channel Passband(@-0.5dB) nm ≥0.11 Insertion Loss(With Connector) dB ≤3.2 Adjacent Channel Isolation dB ≥30 Non-Adjacent Isolation dB ≥40 UPG Port Isolation dB ≥12 PDL dB ≤0.2 Directivity dB ≥50 Return Loss dB ≥45 PMD ps ≤0.20 Operating Temperature ℃ -10 to +70 Storage Temperature ℃ -40 to +85 Fiber Type G657A1 Fiber Connector Type LC/UPC or others Communication Type Single or Dual Fiber Optional functions 1310 Express port: 1310+/-40nm; Upgrade port: Unused wavelength section ； Moniter port: 1%; Packaging Dimension DWDM Module :100*80*10.5 ； 140*115*18; 1*2 WDM filter:Φ5.5*38 ； 90x20x10 Note：The specific parameters are subject to the product specifications. Applications Applications in DWDM Network Ordering Information Ordering Info. for DWDM MUX/DEMUX Part Number ： SPWM-16XM-41A1-LLU-R 1 23 456 789 1011 Product Description ： DWDM 100GHz Mux/Demux Dual Fiber 19inch Rack Fixed 2×16 wavelengths C41-C56 G.657.A1 LC/UPC 1 - Number of wavelengths 8:8 wavelengths; 16:16 wavelengths; 40:40 wavelengths; etc 2 - Type XM:100GHz DWDM Mux/Demux; WM:50GHz DWDM Mux/Demux; 3 - Optional functions E:1310nm Express port; F:1550nm port; M:Moniter port; U:Upgrade Port 4 - First wavelength XX:XX refers to the Channel Number; 17: 1563.86 nm (channel 17); 45:1541.35(channel 45); etc Range: 1528.77 nm (channel 61) to 1563.86 nm (channel 17) 5 - Communication Type S:Single fiber; Null:Dual fiber; 6 - Fiber Type D:G.652D; A1:G.657.A1; 7 - COM ports L :LC; S:SC; F:FC; 8 - Other ports L :LC; S:SC; F:FC; 9 - Endface U :UPC polish; P :PC polish; A :APC polish 10 - Package L:LGX; R:19inch Rack Fixed; 2LR:19inch Rack with 2 LGX box; 11 - Height Null:1U; 2:2U; 3:3U; etc
