EPON SFP

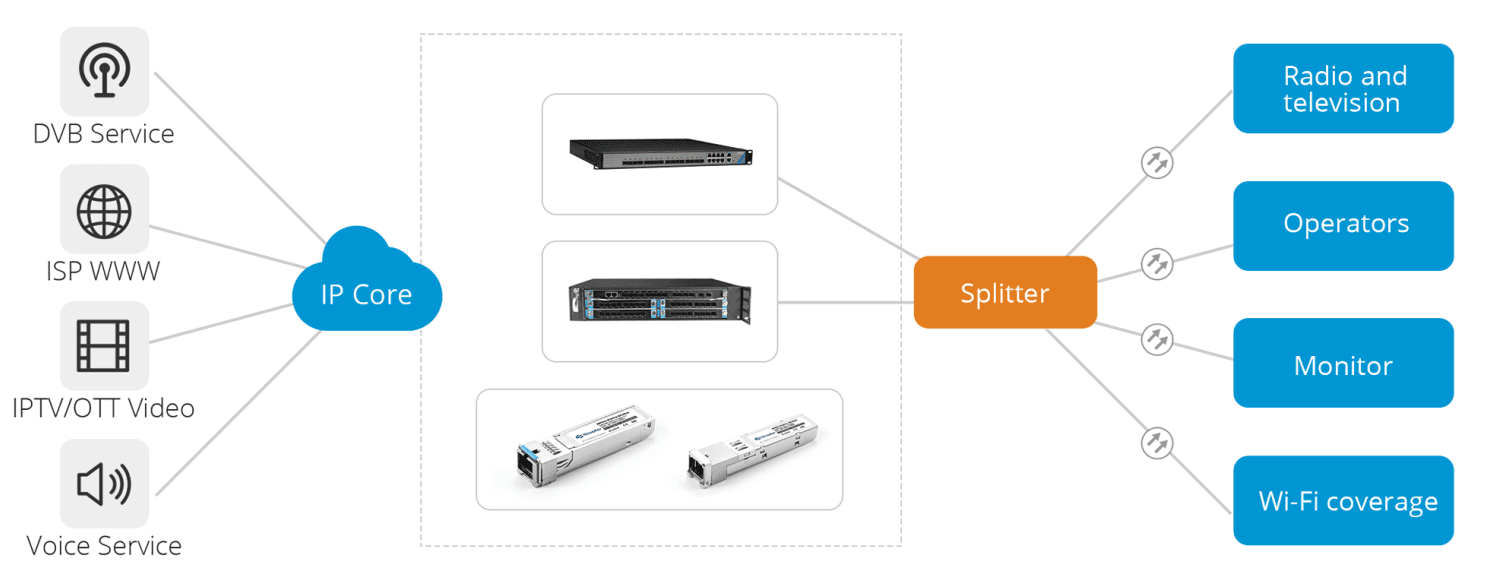

SOPTO’s EPON SFP is a series of optical transceiver modules operating in Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

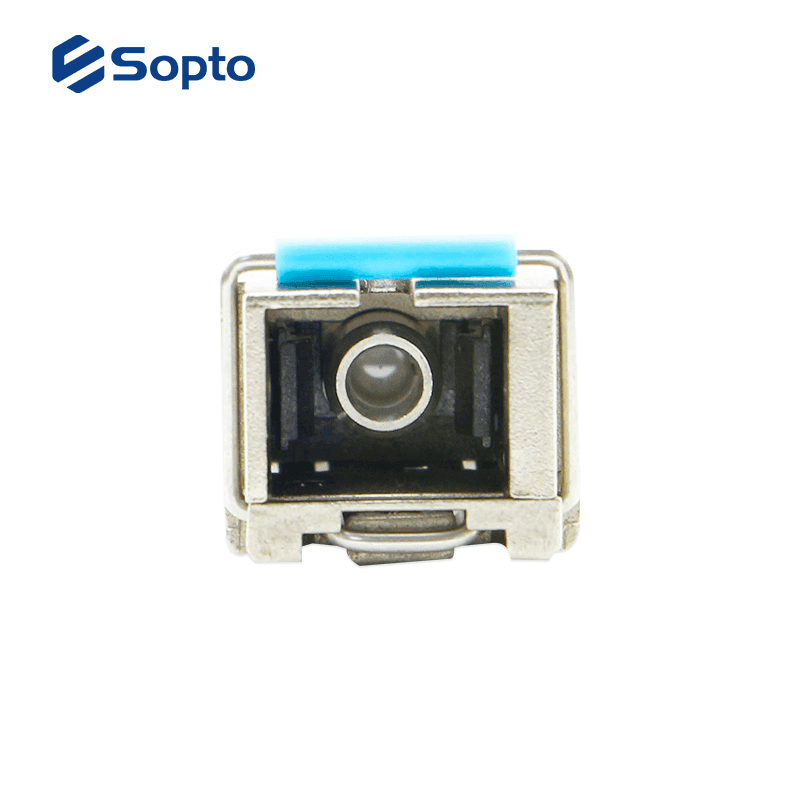

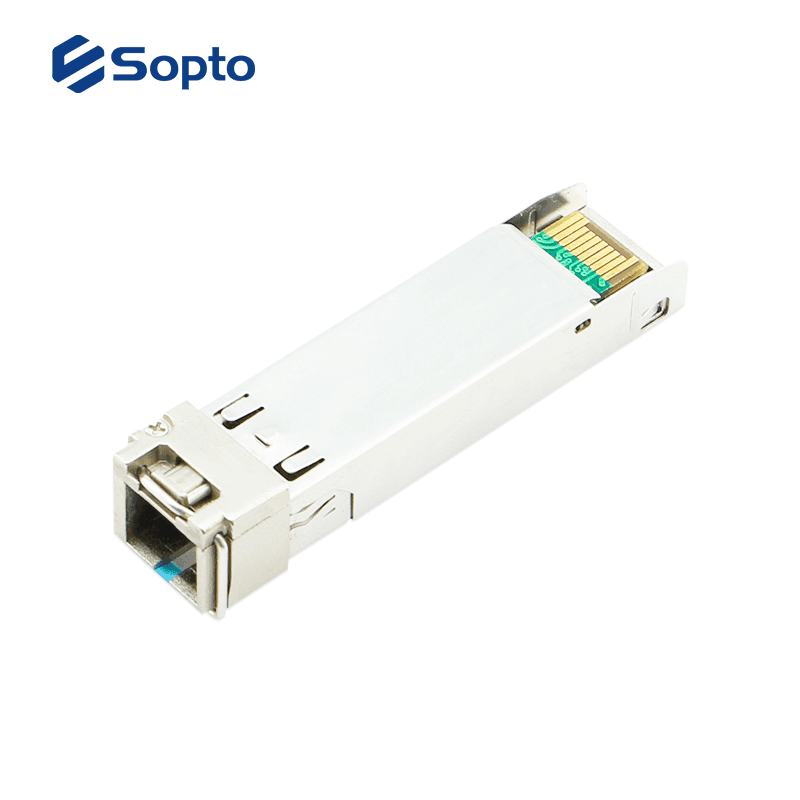

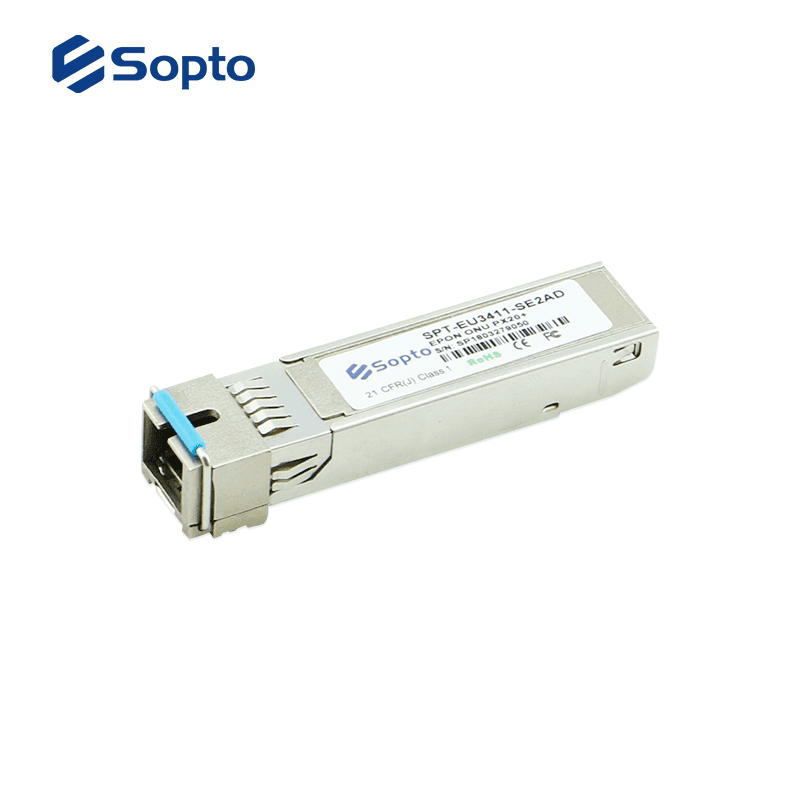

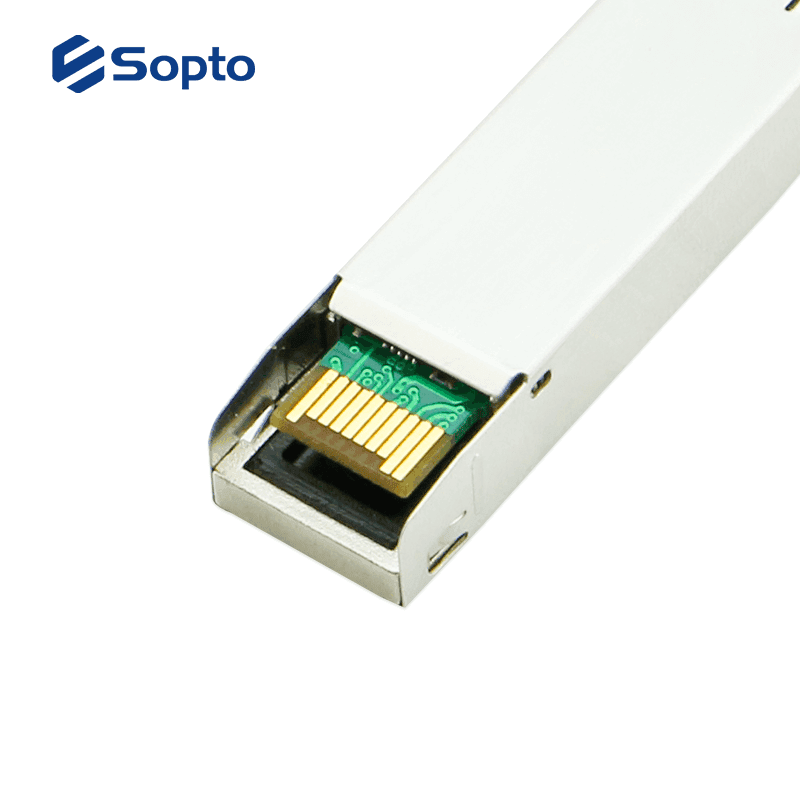

SOPTO’s EPON SFP is a series of optical transceiver modules operating in Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Built-in digital diagnostic functions ● Single +3.3 Power Supply, Hot-pluggable ● Up to 20km distance at 9/125µm G.652 SMF ● Operating Case Temperature: Standard: 0~70°C ● SFP Package with SC Interface or Pigtailed, both ONU and OLT series ● Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps. P/N Description Details EPON ONUSFP SPT-EU3411-SE2AD EPON ONU SFP Transceiver 1310nmTx/1490nmRx 1.25G/1.25G SC Interface 1000BASE-PX20+ with DDM Commercial Temperature Burst Logic 0/1 Tx On , with TxSD EPON ONU SFP.pdf E PON OLT SFP SPT-ET4311-SE2AD Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface 1000BASE-PX20+ with DDM Commercial Temperature EPON OLT SFP.pdf SPT-ET4311-SE2BD Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface 1000BASE-PX20 with DDM Commercial Temperature SPT-ET4311-SE2CD Transceiver EPON OLT SFP 1490nm/1310nm 1.25G Tx/1.25G Rx SC Interface 1000BASE-PX20++ with DDM Commercial Temperature Compliant ● SFP MSA and SFF-8472 ● 1000BASE- PX20/PX20+/ PX20++ Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● EPON For P2MP Application Ordering Information PN Application Data Rate (Gbps) Distance Fiber Output Power (dBm) Sensitivity (dBm) Interface Temp. DDM SPT-ET4311-SE2BD PON ports of EPON OLT 1.25/1.25 PX20 SM 1.5 ～ 5 -28 Simplex SC 0 to 70℃ D SPT-ET4311-SE2AD PON ports of EPON OLT 1.25/1.25 PX20+ SM 3 ～ 8 -30 Simplex SC 0 to 70℃ D SPT-ET4311-SE2CD PON ports of EPON OLT 1.25/1.25 PX20++ SM 4 ～ 10 -30 Simplex SC 0 to 70℃ D SPT-EU3411-SE2AD PON ports of Some EPON ONU 1.25/1.25 PX20+ SM 0.5 ～ 5 -28 Simplex SC 0 to 70℃ D
