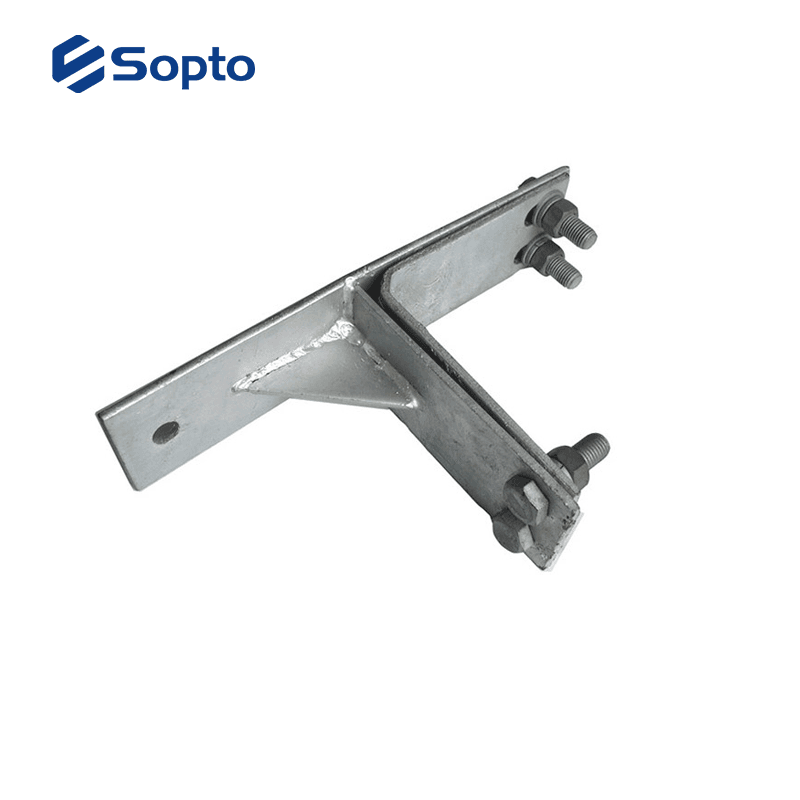

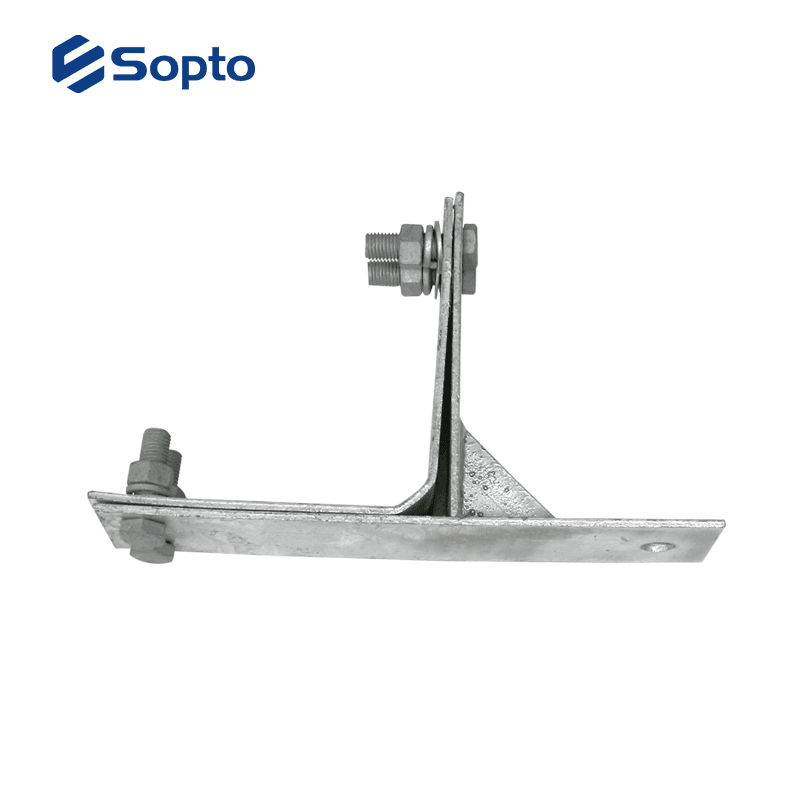

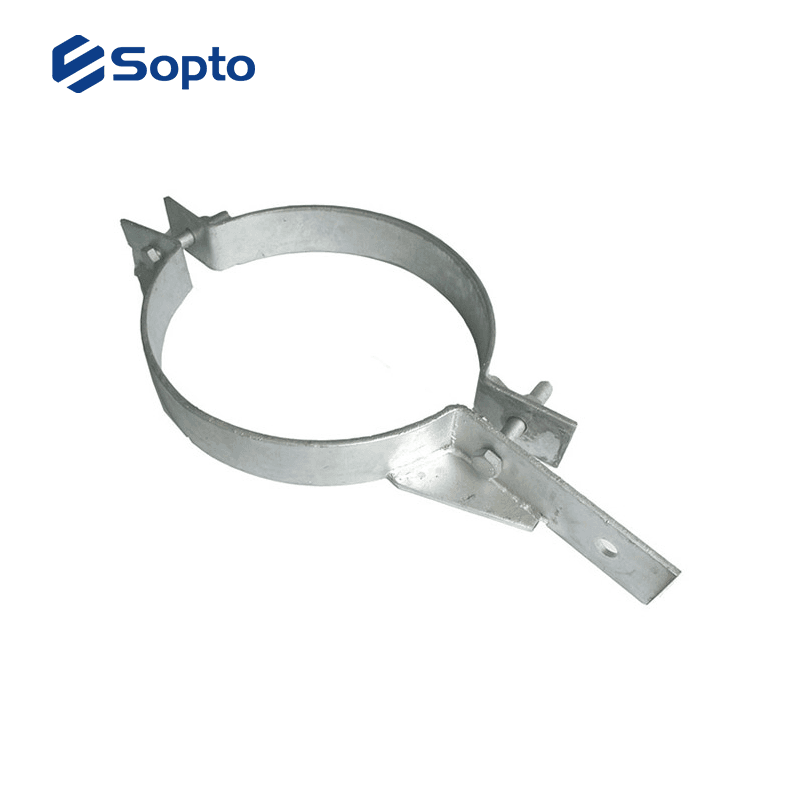

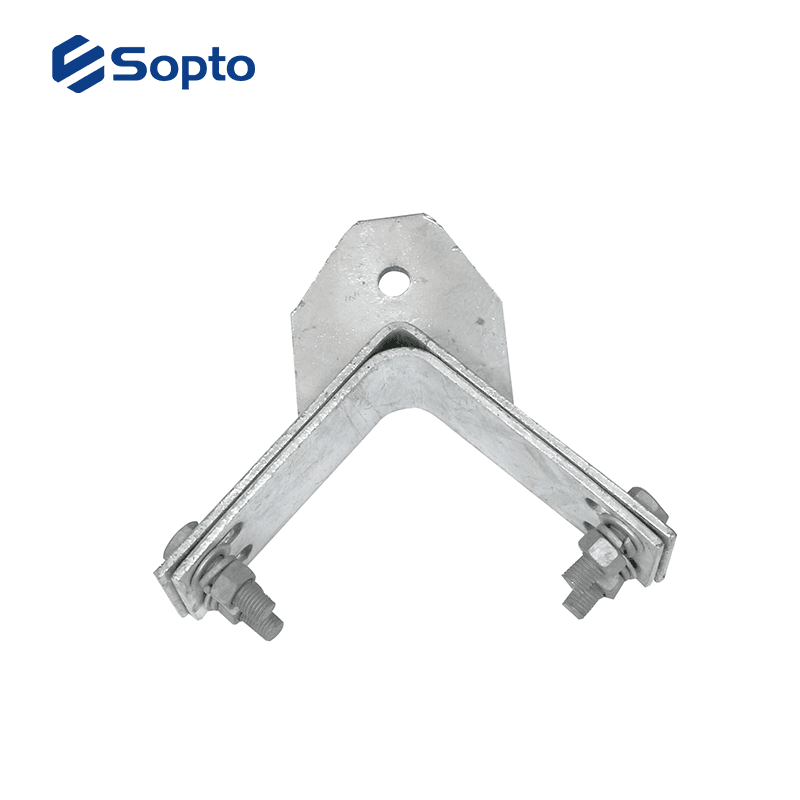

Fastening Clamp
Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material. Feature For Suspension Tower For Corner Tower For Pole Fastening Clamp for Tower Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material. (1) Data Sheet of Fastening Clamp for Less Than 400m Span Length: Tower Type Specification Model Suitable Range Weight (kg) Material Suspension Tower FCZ 080 040 For size of cable hanged position≤80mm 2.7 A3 Steel FCZ 100 040 For size of cable hanged position 81 ~ 100mm 3.1 A3 Steel FCZ 125 040 For size of cable hanged position101~125mm 3.5 A3 Steel FCZ 145 040 For size of cable hanged position 126~145mm 3.9 A3 Steel FCZ 165 040 For size of cable hanged position146~165mm 4.3 A3 Steel FCZ 200 040 For size of cable hanged position166~200mm 4.7 A3 Steel Corner Tower FCJ 100 040 For size of cable hanged position≤100mm 3.4 A3 Steel FCJ 125 040 For size of cable hanged position 101~125mm 3.7 A3 Steel FCJ 145 040 For size of cable hanged position 126~145mm 4.0 A3 Steel FCJ 165 040 For size of cable hanged position 146~165mm 4.3 A3 Steel FCJ 200 040 For size of cable hanged position 166-200mm 4.6 A3 Steel (2) Data Sheet of Fastening Clamp for More Than 400m Span Length: Tower Type Specification Model Suitable Range Weight (kg) Material Suspension Tower FCZ 080 070 For size of cable hanged position≤80mm 3.0 A3 Steel FCZ 100 070 For size of cable hanged position 81~100mm 3.4 A3 Steel FCZ 125 070 For size of cable hanged position 101~125mm 3.8 A3 Steel FCZ 145 070 For size of cable hanged position 126~145mm 4.2 A3 Steel FCZ 165 070 For size of cable hanged position 146~165mm 4.6 A3 Steel FCZ 200 070 For size of cable hanged position 166~200mm 5.0 A3 Steel Corner Tower FCJ 100 070 For size of cable hanged position≤100mm 3.7 A3 Steel FCJ 125 070 For size of cable hanged position 101~125mm 4.0 A3 Steel FCJ 145 070 For size of cable hanged position 126~145mm 4.3 A3 Steel FCJ 165 070 For size of cable hanged position 146~165mm 4.6 A3 Steel FCJ 200 070 For size of cable hanged position 166~200mm 4.9 A3 Steel Fastening Clamp for Pole Fastening Clamps for Poles are designed to connect Tension Clamps, Suspension Clamps and cement poles, it is according to the pole type of hanged points and the size of main material. (1) Data Sheet of Fastening Clamp for Pole for Less Than 400m Span Length: Specification Model Suitable Range Weight (kg) Material FCX 220 040 For installation position of cement poleФ190-220 2.7 A3 Steel FCX 250 040 For installation position of cement poleФ221-250 3.1 A3 Steel FCX 280 040 For installation position of cement poleФ221-250 3.5 A3 Steel FCX 310 040 For installation position of cement poleФ281-310 3.9 A3 Steel (2) Data Sheet of Fastening Clamp for Pole for More Than 400m Span Length: Specification Model Suitable Range Weight (kg) Material FCX 220 070 For installation position of cement poleФ190-220 3.0 A3 Steel FCX 250 070 For installation position of cement poleФ221-250 3.4 A3 Steel FCX 280 070 For installation position of cement poleФ251-280 3.8 A3 Steel FCX 310 070 For installation position of cement poleФ281-310 4.2 A3 Steel FCX 340 070 For installation position of cement poleФ311-340 4.6 A3 Steel FCX 370 070 For installation position of cement poleФ341-370 5.0 A3 Steel FCX 400 070 For installation position of cement poleФ371-400 5.4 A3 Steel
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
