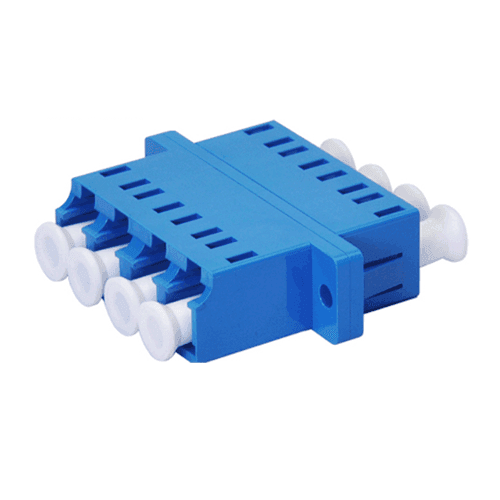

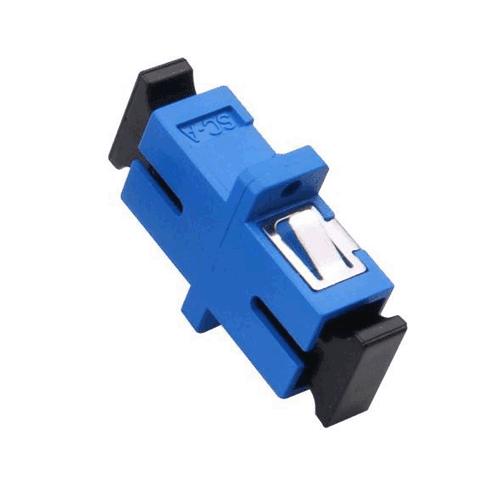

Fiber Optical Adaptor
Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

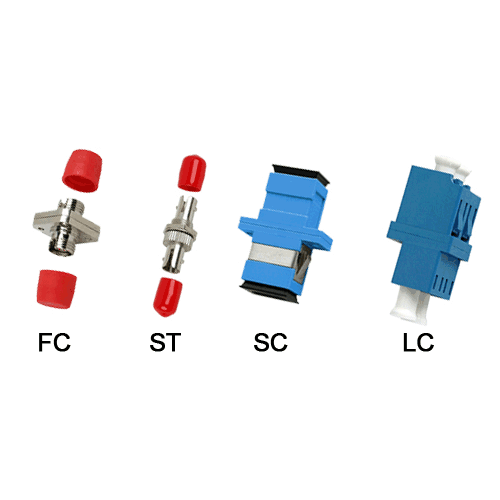

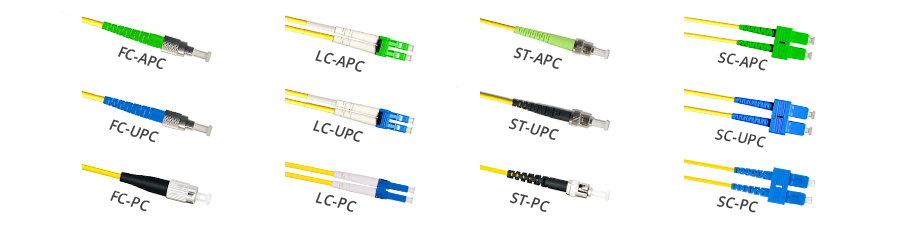

Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability. Feature ● Simplex / Duplex ● Good compatibility ● High reliability & stability ● Ceramic or Bronze Sleeve ● Low insertion loss, high return loss ● High precision of mechanical dimensions Parameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU SM MM PC UPC APC PC Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 Return Loss dB ≥45 ≥50 ≥60 ≥30 Exchangeability dB ≤0.2 Repeatability dB ≤0.2 Durability Time ＞1000 Operating Temperature ℃ -40~75 Storage Temperature ℃ -45~85 Applications ● Local Area Network ● CATV System ● Telecommunication Networks ● Equipment Test Related Articles ● SC Fast Connector Assembly Instruction ● The fiber optic connector common classification and characteristics Ordering Information Ordering Info. for Adaptor Part Number ： SPAD - SC F - SC F - A -S S- P E S 1 2 3 4 5 6 7 8 9 10 Product Description ： Adaptor Simplex SC Female/SC Female APC SM Plastic shell with Ears with Spring strip 1 - Connector A LC SC FC ST etc 2 - Connector A Type F:Female ; M:Male 3 – Connector B LC SC FC ST etc 4 – Connector B Type F:Female ; M:Male 5 - Endface U ： UPC polish; P ： PC polish; A ： APC polish 6 - Communication Type S:Simplex; D:Duplex; Q:Quadruple ; Null: Multicores 7 - Adapted Fiber Type S:SM; M:MM ; Null:not Specified 8 -Shell Material P:Plastic; PM:Half Plastic Half Metal; M;Metal 9 -Structure 1 E:with Ears; Null:without Ears 10 - Structure 2 S:with Spring strip; Null:without Spring strip
