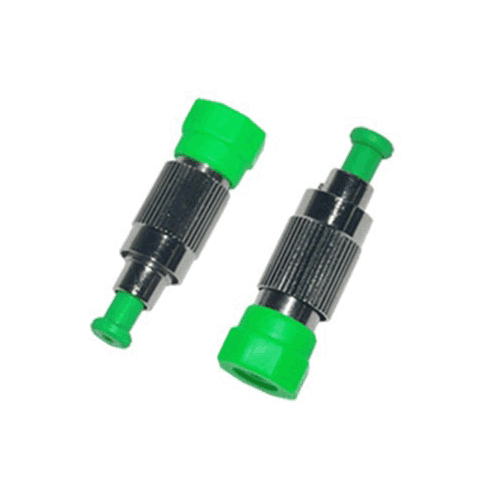

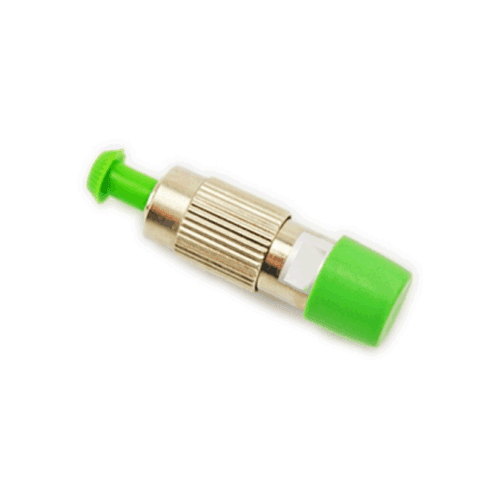

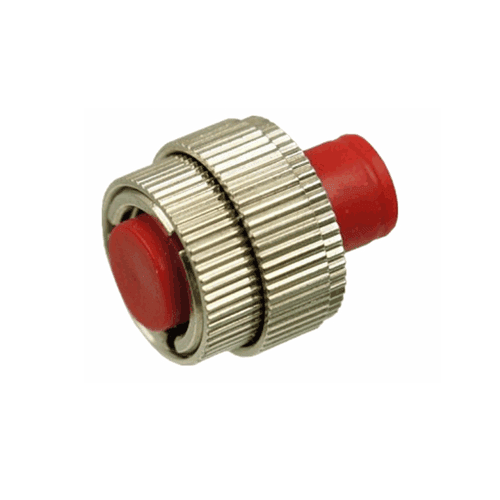

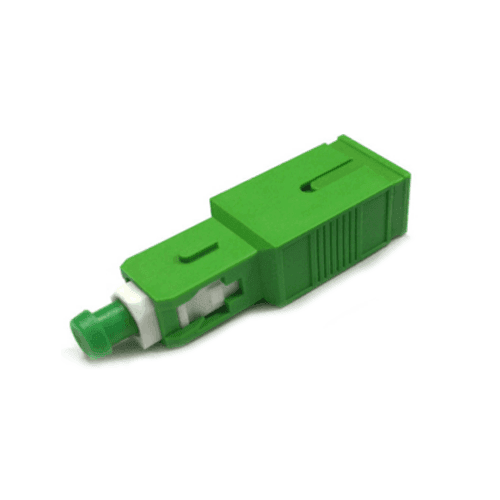

Fiber Optical Attenuator
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver. Sopto can provide female to male (plug type), Bulkhead-fixed value attenuator, in-line attenuator and variable attenuators.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver. Sopto can provide female to male (plug type), Bulkhead-fixed value attenuator, in-line attenuator and variable attenuators. Feature ● Low back reflection and Low PDL ● High precision attenuation value ● Precision control of attenuation range ● Wide attenuation range ● Precision ceramic ferrule ● FC, SC, ST, LC … optional ● PC,UPC and APC available ● Plastic or metal housing material Item Unit Parameter Operating Wavelength Nm 1310/1550 Attenuation Range dB 1-10dB(1dB step), 15, 20, 25, 30dB Return Loss dB PC:≥50 UPC: ≥55 APC: ≥60 Attenuation Tolerance dB ≤1.0 (11-30dB) Working Temperature ℃ -25℃~+75℃ Storage Temperature ℃ -40℃~+ 85℃ Applications ● Optical line distributing frame ● Fiber-optical network system ● Hi-speed fiber-optical transmission system ● Dense Wavelength Division Multiplex (DWDM) system ● Optical add-drop multiplexers (OADM) Related Articles ● SC Fast Connector Assembly Instruction ● The fiber optic connector common classification and characteristics Ordering Information Ordering Info. for Attenuator Part Number ： SPAT- FC F- FC F- U- 5 F M 1 2 3 4 5 6 7 8 Product Description ： Attenuator FC Female/FC Female UPC 5DB SM Fixed Value Metal Shell 1 - Connector A LC SC FC ST etc 2 - Connector A Type F:Female ; M:Male 3 – Connector B LC SC FC ST etc 4 – Connector B Type F:Female ; M:Male 5 - Endface U：UPC polish; P：PC polish; A：APC polish 6 - Attenuation Value 1:1DB ; 3:3DB; 5:5DB; etc 30;1-30DB 7 - Variable F:Fixed value; V:Variable; I:Inline Fixed ; S: Inline Variable 8 -Shell Material P:Plastic; PM:Half Plastic Half Metal; M;Metal 9 -Structure 1 E:with Ears; Null:without Ears 10 - Structure 2 S:with Spring strip; Null:without Spring strip
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
