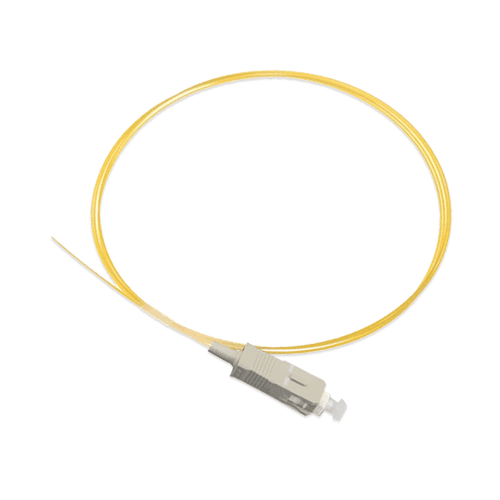

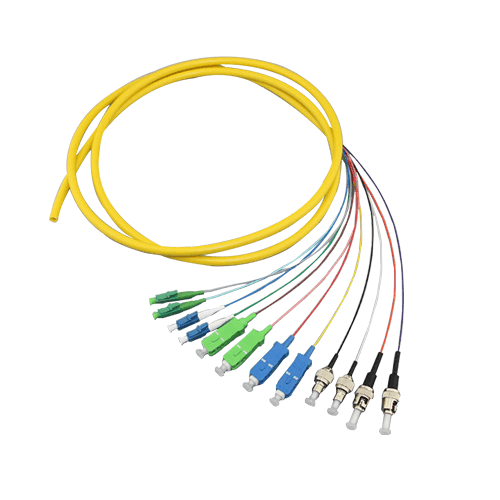

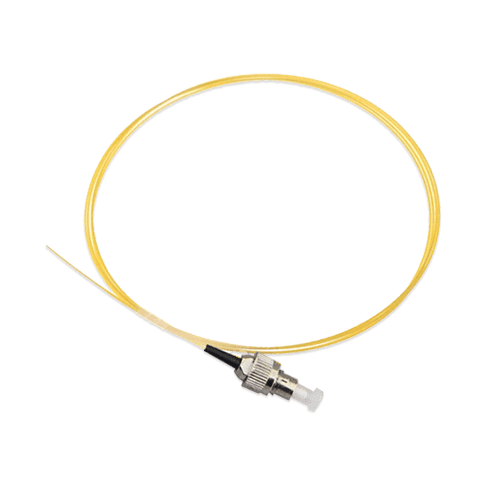

Fiber Pigtails

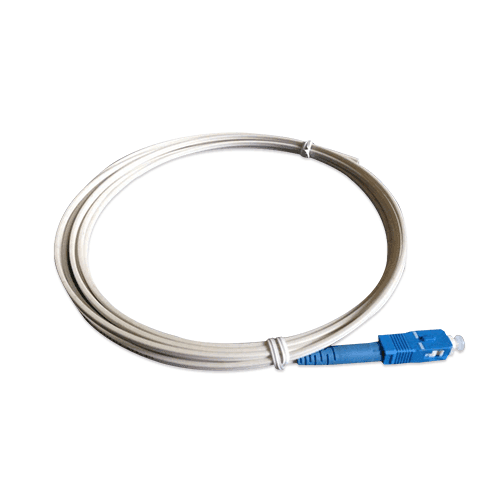

Fiber pigtail refers to a half-jumper-like connector used to connect fiber and fiber couplers. It includes a jumper connector and a length of fiber.SOPTO can supply FTTH drop cable pigtails which are made from standard FTTH drop cables. The FTTH drop cable Pigtails are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Fiber pigtail refers to a half-jumper-like connector used to connect fiber and fiber couplers. It includes a jumper connector and a length of fiber.SOPTO can supply FTTH drop cable pigtails which are made from standard FTTH drop cables. The FTTH drop cable Pigtails are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters. Feature Nomal Pigtails ： ● End-Face Type: PC/UPC/APC ● Fiber Diameter: 0.9mm, 2.0mm or 3.0mm ● Available for simplex and duplex ● The outer jacket can be PVC 、 LSZH 、 Armored etc ● Available for different connectors: SC, LC, FC, ST, MPO,MTP,MU,DIN,D4,E2K etc ● Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are availabl e ● Low insertion loss and high return loss, high dense connection, easy for operation ● Customer lengths and connectors are available upon request Parameter Unit FC, SC, LC, ST, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC Duplex SM (9/125 SMF-28 or equivalent O S1) MM (50/125,62.5/125(OM2&OM1), 50/125,10G(MM) OM3 PC UPC APC PC Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.25 ≤0.2 Return loss dB ≥45 ≥50 ≥60 ≥30 Operating wavelength nm 1310, 1510 Exchangeability dB ≤0.2 Vibration dB ≤0.2 Operating temperature ℃ -40~75 Storage temperature ℃ -45~85 Cable Type Simplex or duplex(zip cord) φ3.0, φ2.0, φ0.9,PVC or LSZH Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs Applications ● LAN ● FTTH ● Computer networks ● Telecommunication networks ● ODF of optical transmission system ● High speed data transmission network ● High quality graphic transmission network ● Connection of optical transmission equipment Related Articles ● What is CPRI Cable ● Difference between PC, UPC and APC ● Differences of OM1, OM2, OM3 and OM4 cables ● What is Armoured Patch Cord ● How to Choose Fiber Optical Patch Cord Ordering Information Ordering Info. for Pigtail Part Number ： SPP - SC - U – 1D – 0.9 – 0.5VA 1 2 3 4 5 67 8 Product Description ： Pigtail Simplex SC/UPC G.652D 0.9mm 0.5M length PVC Armored 1 - Connector A LC SC FC ST etc 2 – Endface A U ： UPC polish; P ： PC polish; A ： APC polish 3- Fiber Count 1: Simplex; 2: Duplex; 12:12 cores; 24:24 cores etc 4 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M3H:OM3(300); M4: OM4; D: G.652D; A1: G657.A1 5 - Diameter 09：0.9mm 20: 2.0mm ; 30: 3.0mm ; 6- Length 0.5 : Cable total length 0.5M etc 7 - Cable Jacket Materials V:PVC; H:LSZH; O:OFNR; F:OFNP; Y:PE 8 - Armored Null: Without armored A: Armored Cable Jacket Color Default Pigtail Color：Aqua ( OM3,OM4);Orange (OM1,OM2) ; Yellow (SM);
