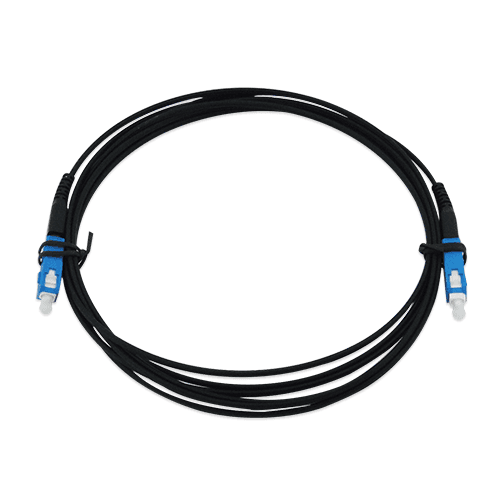

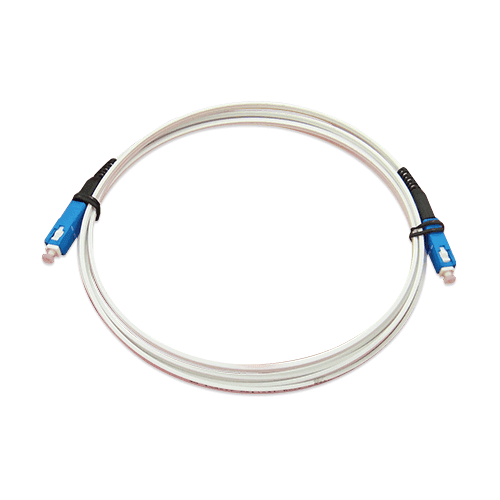

FTTH Drop Patch Cords
FTTH Drop Cable patch cords have been widely applied in FTTX. It can also be used for short distance outdoor connections. SOPTO can supply FTTH drop cable patch cords which are made from standard FTTH drop cables. The FTTH drop cable patch cords are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
FTTH Drop Cable patch cords have been widely applied in FTTX. It can also be used for short distance outdoor connections. SOPTO can supply FTTH drop cable patch cords which are made from standard FTTH drop cables. The FTTH drop cable patch cords are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters. Feature ● Indoor Cabling Bow-Type GJXH,GJXFH,GJXV,GJXFV optional ● Outdoor Cabling Bow-Type GJYXFCH,GJYXCH,GJYXCV,GJYXFCV optional ● UPC and APC available for the connectors ● G.652D,G.657A1,G.657A2 or MM optional ● 1/2/4 more cores are available ● Push/pull mating for quick installation ● High density and compact size ● High return loss ● Loss insertion loss Specifications: ● End Face Type: PC/APC/UPC/Plat Polish ● Connector Type: FC/SC/LC/ST/ MTRJ/ DIN/E2000 ● Operating Wavelength: 850nm/1310nm/1550nm ● Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified ● Insertion loss: ≤0.3dB ● Return loss: ≥35dB ● Interchangeability: ≤0.2dB ● Repeatability: ≤0.2dB ● Insert-pull test: 100times, 0.3dB ● Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM ● Fiber Type: SM, MM, OM1, OM2, OM3, OM4, duplex, simplex ● Material Feature: PVC/LSZH ● Storage Temperature: -40~+85°C ● Operating Temperature: -25~+85°C ● Storage Humidity: 95%RH (Non-Packaging) Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs Applications ● FTTH ● LAN ● Telecommunication Network Related Articles ● What is CPRI Cable ● Difference between PC, UPC and APC ● Differences of OM1, OM2, OM3 and OM4 cables ● What is Armoured Patch Cord ● How to Choose Fiber Optical Patch Cord Ordering Information Ordering Info. for FTTH Drop Cable patch cords P art Number ： SPP - GJXH - SC - FC – UU – 2D – 5H 1 2 3 4 5 67 8 9 Product Description ： Patch Cord GJXH Duplex 2×SC/UPC 2× SC/UPC G.652D 5M length LSZH 1 - Type GJXH,GJXFH,GJXV,GJXFV,GJYXFCH,GJYXCH,GJYXCV,GJYXFCV etc 2 - Connector A LC SC FC ST etc 3 - Connector B LC SC FC ST etc 4 – End face A U：UPC polish; P：PC polish; A：APC polish 5 – Endface B U：UPC polish; P：PC polish; A：APC polish 6 - Fiber Count 1: Simplex; 2: Duplex 7 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M3H:OM3(300); M4: OM4; D: G.652D; A1: G657.A1 8 - Length 5 : Cable total length 5M ; etc 9 - Cable Jacket Materials V: PVC; H:LSZH; Cable Jacket Color Default ： Black
Especificaciones técnicas
