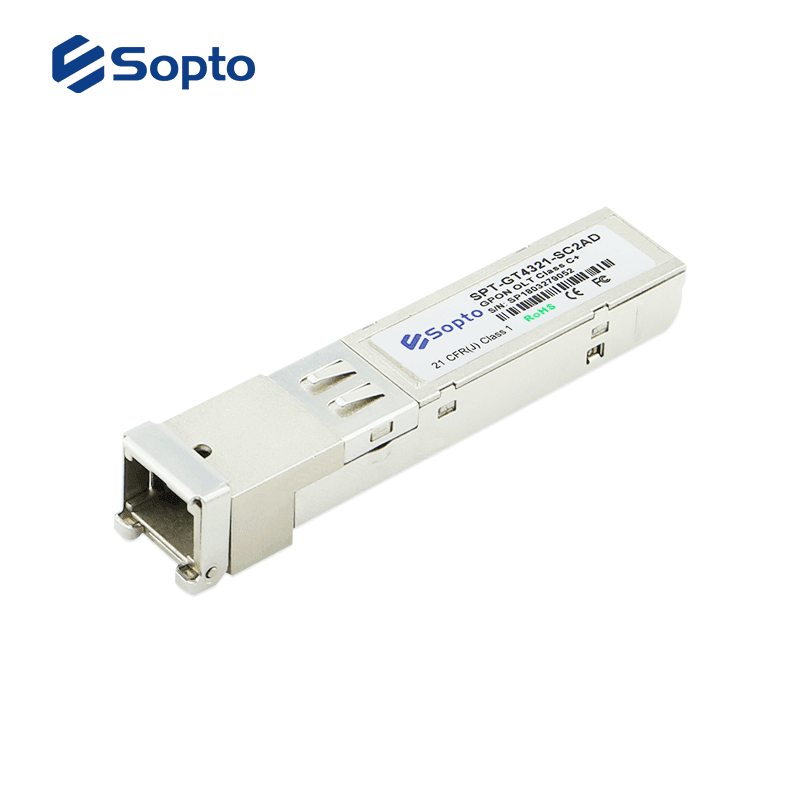

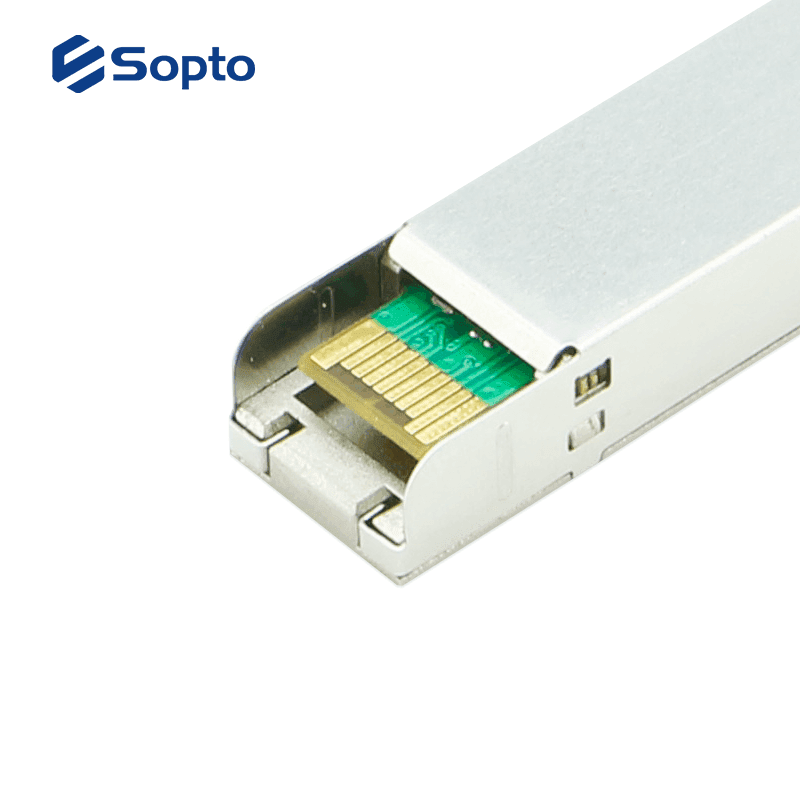

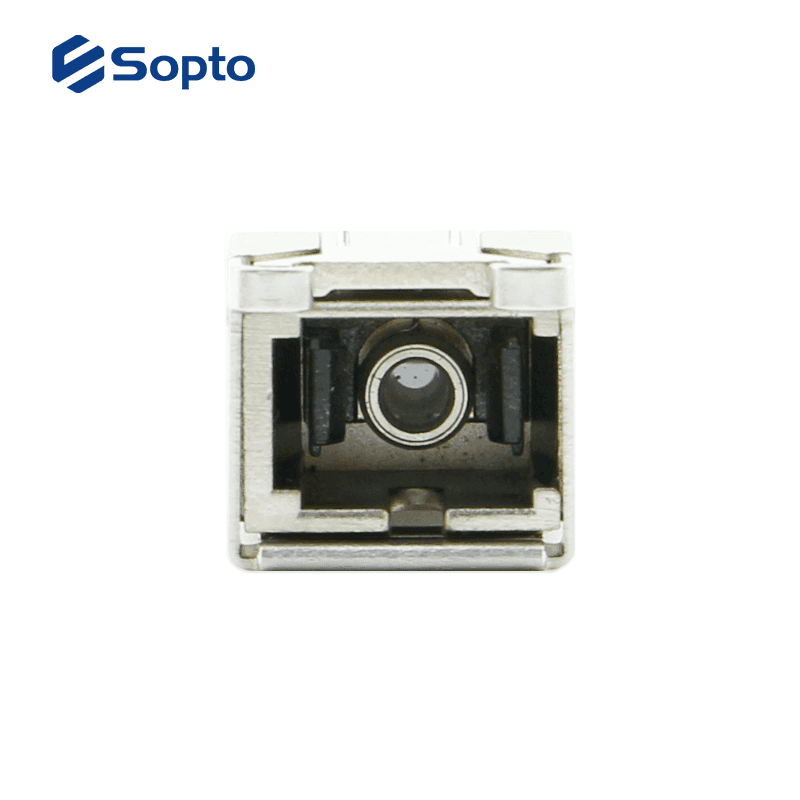

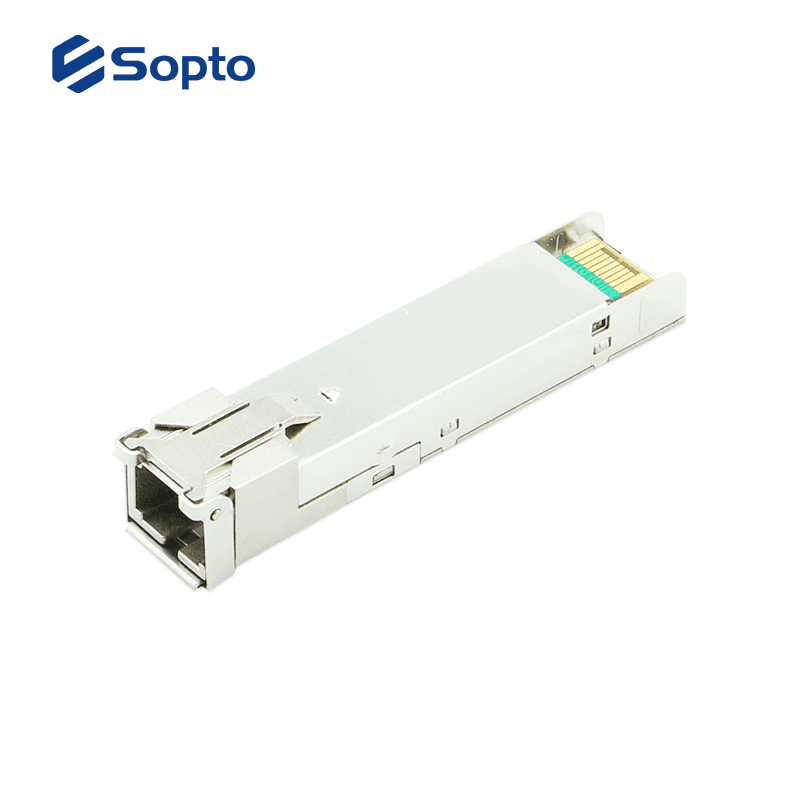

GPON SFP
SOPTO’s GPON SFP is a series of optical transceiver modules operating in Gigabit Passive Optical Networks (GPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with GPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 128 different lines in GPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s GPON SFP is a series of optical transceiver modules operating in Gigabit Passive Optical Networks (GPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with GPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 128 different lines in GPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers. Feature ● Built-in digital diagnostic functions ● Single +3.3 Power Supply, Hot-pluggable ● Operating Case Temperature: Standard: 0~70°C ● Burst mode received signal strength indication (RSSI) function ● SFP Package with SC Interface or Pigtailed, both ONU and OLT series P/N Description Details GPON ONU SFP SPT-GU3412-SB2BD GPON ONU SFP Transceiver 1310nmTx/1490nmRx 1.244G/2.488G SC Interface Class B+ with DDM Commercial Temperature Burst Logic 0/1 Tx On , with TxSD GPON ONU SFP.pdf GPON OLT SFP SPT-GT4321-SC2AD Tx1490nm, Rx1310nm, 2.5Gbps/1.25Gbps, Class C+,SC Interface， 0ºC ~ +70ºC, With DDM GPON OLT SFP.pdf SPT-GT4321-SB2BD Tx1490nm, Rx1310nm, 2.5Gbps/1.25Gbps, Class B+, SC Interface， 0ºC ~ +70ºC, With DDM SPT-GT4321-SC2CD Tx1490nm, Rx1310nm, 2.5Gbps/1.25Gbps, Class C++,SC Interface， 0ºC ~ +70ºC, With DDM Compliant ● SFP MSA and SFF-8472 ● Complies with ITU-T G.984.2 Class B+/ C+/ C++ Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements o f European CE, RoHs --------------------------------------------------------------------------------------------------------------------------------- Applications ● GPON For P2MP Application Ordering Information PN Application DataRate (Gbps) Distance Fiber Output Power (dBm) Sensitivity (dBm) Interface Temp. DDM SPT-GT4321-SB2BD PON ports of GPON OLT 2.488/1.244 B+ SM 1.5～5 -28 Simplex SC 0 -70℃ D SPT-GT4321-SC2AD PON ports of GPON OLT 2.488/1.244 C+ SM 3 ～ 8 -30 Simplex SC 0 -70 ℃ D SPT-GT4321-SC2CD PON ports of GPON OLT 2.488/1.244 C++ SM 4 ～ 10 -30 Simplex SC 0 -70 ℃ D SPT-GU3412-SB2BD PON ports of Some GPON ONU 1.244/2.488 B+ SM 0.5 ～ 5 -28 Simplex SC 0 -70 ℃ D
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
