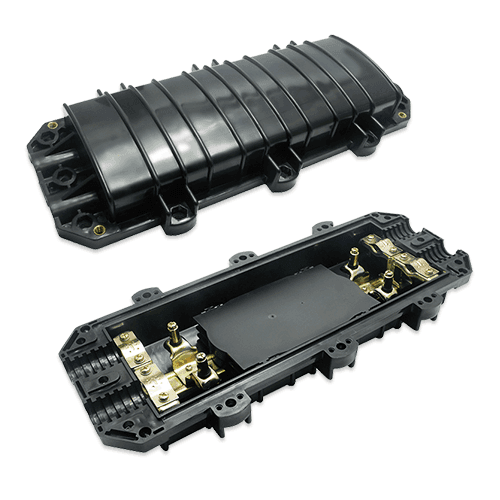

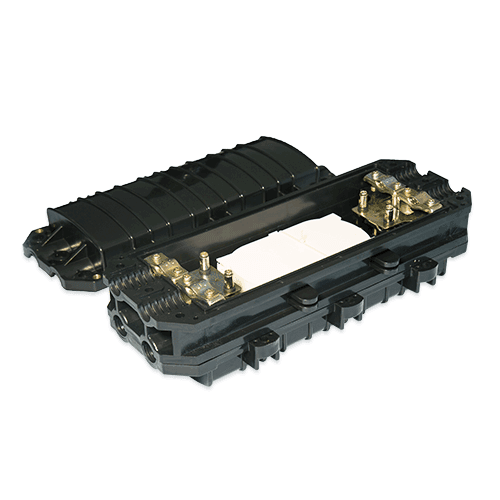

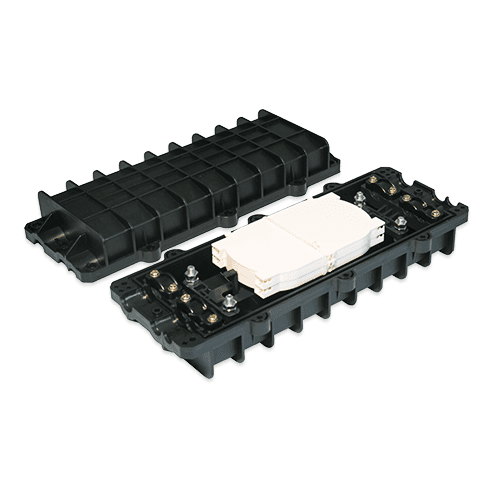

Horizontal Fiber Closure
Fiber Closure Horizontal type is suitable for overhead, direct buried, pipe installation, for protection connection and fiber distribution between two or more cables. It is one of the commonly used devices for user access points, and mainly completes the distribution cable and the home line cable. According to the number of fuse cores, the specifications are 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, and 288 cores.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Fiber Closure Horizontal type is suitable for overhead, direct buried, pipe installation, for protection connection and fiber distribution between two or more cables. It is one of the commonly used devices for user access points, and mainly completes the distribution cable and the home line cable. According to the number of fuse cores, the specifications are 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, and 288 cores. Feature ● All property indexes are in accordance with National YD/T814-1996 Standard. ● Made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. ● Light weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life. ● Sealed with adhesive rubber strip(non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain. ● Unique disposition of different cable loops enables user to choose different outer diameter according to actual conditions, it enhances the reliability of the cable entrance sealed. ● Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe. ● Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments. Item Parameter Type Fiber Closure Horizontal type Way to install Aerial, duct and buried applications Capacity of splice tray 12 or 24 cores Optional Sealing structure Sticky cincture Work Temperature -40 °C ~+70 °C Atmospheric Pressure 70Kpa~106Kpa Optical fiber winding radius ≥40mm Extra loss of fiber tray ≤ 0.01dB Fiber length left in tray ≥1.6m Max Capacity 288 single fiber Lateral pressure-resistance ≥2000N / 10cm Shock-resistance ≥20N.m Applications ● Telecommunication subscriber loop ● Fiber to the home (FTTH) ● LAN/WAN Ordering Information Part Number Product Description Size(mm) SPFC-NH-12M-1/1H Fibe Closure Horizontal type 12 Cores Max, 12 Cores Splice Tray 1 IN 1 OUT Mechanical Splicing type H 390*140*75 SPFC-NH-24M-1/1H Fiber Closure Horizontal type 24 Cores Max, 12 Cores Splice Tray 1 IN 1 OUT Mechanical Splicing type H 390*140*75 SPFC-NH-36M-1/1H Fiber Closure Horizontal type 36 Cores Max , 12 Cores Splice Tray 1 IN 1 OUT Mechanical Splicing type H 390*140*75 SPFC-NH-48M-1/1H Fiber Closure Horizontal type 48 Cores Max , 12 Cores Splice Tray 1 IN 1 OUT Mechanical Splicing type H 390*140*75 SPFC-NH-24M-2/2C Fiber Closure Horizontal type 24 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-48M-2/2C Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-72M-2/2C Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-96M-2/2C Fiber Closure Horizontal type 96 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-144M-2/2C Fiber Closure Horizontal type 144 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-192M-2/2C Fiber Closure Horizontal type 192 Cores Max, 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type C 435*190*120mm SPFC-NH-24M-2/2D Fiber Closure Horizontal type 24 Cores Max, 12 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type D 350*145*90mm SPFC-NH-48M-2/2D Fiber Closure Horizontal type 48 Cores Max, 12 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type D 350*145*90mm SPFC-NH-24M-2/2G Fiber Closure Horizontal type 24 Cores Max, 12 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type G 435*190*120mm SPFC-NH-24M-3/3B Fiber Closure Horizontal type 24 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type B 420*150*110mm SPFC-NH-48M-3/3B Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type B 420*150*110mm SPFC-NH-72M-3/3B Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type B 420*150*110mm SPFC-NH-96M-3/3B Fiber Closure Horizontal type 96 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type B 420*150*110mm SPFC-NH-24M-4/4A Fiber Closure Horizontal type 24 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type A 470*240*120mm SPFC-NH-48M-4/4A Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type A 470*240*120mm SPFC-NH-72M-4/4A Fiber Closure Horizontal type 72 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type A 470*240*120mm SPFC-NH-96M-4/4A Fiber Closure Horizontal type 96 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type A 470*240*120mm SPFC-NH-144M-4/4A Fiber Closure Horizontal type 144 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicingtype A 470*240*120mm SPFC-NH-24M-4/4F Fiber Closure Horizontal type 24 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-48M-4/4F Fiber Closure Horizontal type 48 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-72M-4/4F Fiber Closure Horizontal type 72 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-96M-4/4F Fiber Closure Horizontal type 96 Cores Max , 24 Cores SpliceTray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-144M-4/4F Fiber Closure Horizontal type 44 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-192M-4/4F Fiber Closure Horizontal type 192 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-216M-4/4F Fiber Closure Horizontal type 216 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing type F 435*190*170mm SPFC-NH-288M-4/4F Fiber Closure Horizontal type 288 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicingtype F 435*190*170mm
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
