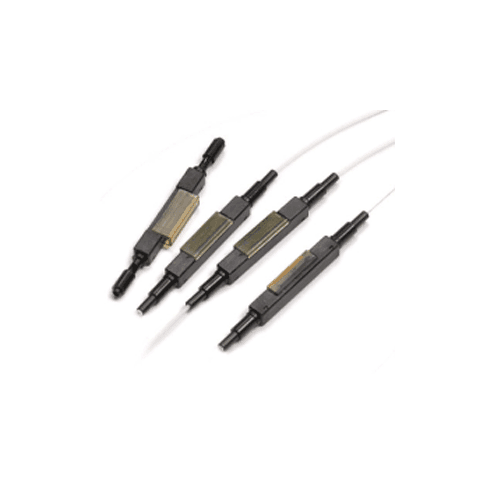

Mechanical Splicer
The terminal of the cable can be used in two technologies: welding and cold bonding. The fiber cold connector is used when two pigtails are docked. The main component inside is a precision v-groove. After the two pigtails are used, the cold joints are used to realize the docking of the two pigtails. He is simpler and faster to operate, saving time than welding with a fusion splicer.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
The terminal of the cable can be used in two technologies: welding and cold bonding. The fiber cold connector is used when two pigtails are docked. The main component inside is a precision v-groove. After the two pigtails are used, the cold joints are used to realize the docking of the two pigtails. He is simpler and faster to operate, saving time than welding with a fusion splicer. Feature ● Non-pre-embedded fiber structure ● The reliability of fiber clamping is very good ● Good stability and low insertion loss ● Optical fiber quick-connect connector online tensile force has no effect on connection loss ● The use cost is very low, the installation speed is very fast SPMS-A Applicable for φ0.25 mm &φ0.90 mm fiber Size 45*4.2*4.7mm Optical fiber diameter 125μm ( 652 & 657 ) Tight buffer diameter 250μm & 900μm Applicable mode single & multimode Operation time about 10s (without fiber cut) Insert loss ≤ 0. 25 dB （ 1310nm & 1550nm ) Return loss ≤ -45dB Fastening strength of naked fiber >5 N Clamping force of fiber with tight buffer >8 N Using temperature -40 - +75 C Reusability (10 times) IL ≤ 0.2dB RL ≤ 5dB SPMS-B Applicable for 3.1 x 2.0 mm drop cable Size 90*7*8mm Optical fiber diameter 125μm ( 657A & 657B ) Tight buffer diameter 250μm & 900μm Applicable mode single & multimode Operation time about 30s (without fiber cut) Insert loss ≤ 0.25dB （ 1310nm & 1550nm) Return loss ≤ -45dB Success rate >98% Reusability times >10times Fastening strength of naked fiber >5 N Clamping force of fiber with tight buffer >8 N Tensile strength >50 N Using temperature -40 - +75 C On-line tensile strength) IL ≤ 0.2dB Mechanical durability (500 times) IL ≤ 0.2dB Drop off test ( 4 meters high, cement floor, three directions) IL ≤ 0.2dB Applications ● Optical line distributing frame ● Fiber-optical network system ● Hi-speed fiber-optical transmission system Related Articles ● SC Fast Connector Assembly Instruction ● The fiber optic connector common classification and characteristics Ordering Information Part Number Product Description SPMS-A Fiber Optic Mechanical Splice applied to connect φ0.25--φ0.9 fiber/cable SPMS-B Fiber Optic Mechanical Splice applicable for connecting 2.0X3.0mm drop cable
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
