MPO Patch Cords

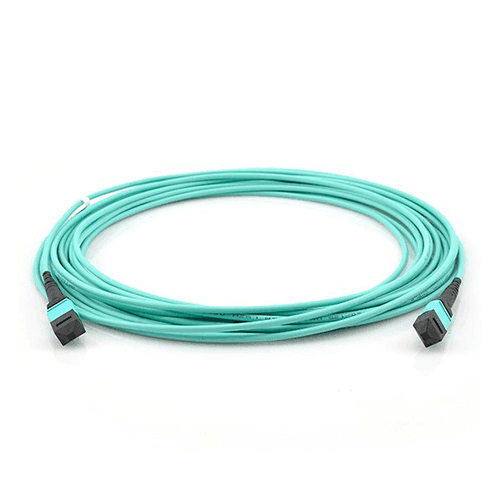

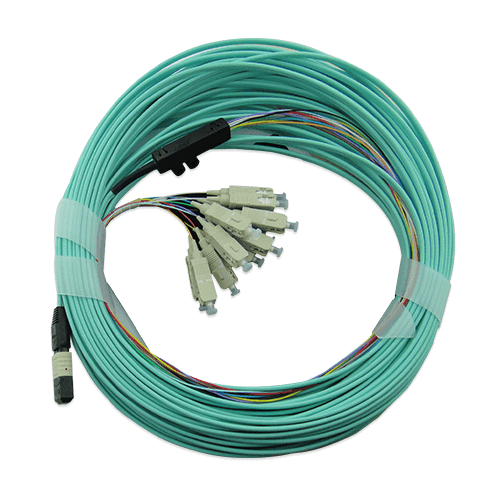

MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 6, 8 12, 24,48. MPO/MTP patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating. MPO/MTP connector assembled to ribbon or bare ribbon connectors with push-pull latching.Supplies MPO/MTP Trunk Cable,MPO/MTP BunchCable,MPO/MTP Fanout Cable,MPO/MTP Cassette Module and MPO/MTP Patch Cord, MPO Splitter Module which are all suitable for 40G QSFP+
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 6, 8 12, 24,48. MPO/MTP patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating. MPO/MTP connector assembled to ribbon or bare ribbon connectors with push-pull latching.Supplies MPO/MTP Trunk Cable,MPO/MTP BunchCable,MPO/MTP Fanout Cable,MPO/MTP Cassette Module and MPO/MTP Patch Cord, MPO Splitter Module which are all suitable for 40G QSFP+ Feature The single-mode and multimode MPO/MTP products are multi fiber connectors used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications system. The MPO/MTP connector offers up to 12 times the density of standard connectors, providing significant space and cost savings. MPO/MTP patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO/MTP can be mass terminated in combination of 4,8,12 or 24 fibers. Features: ● Precision molded MT ferrule ● High precision guide pins for exact alignment ● Compact design, up to 4,8,12,24 fibers ● IEC 61754-7 Compliant ● Telcordia GR-1435-CORE Compliant Specifications: ● End Face Type: PC/APC/UPC/Plat Polish ● Connector Type: MTP/MPO ● Operating Wavelength: 850nm/1310nm/1550nm ● Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified ● Insertion loss: ≤0.35dB SM; ≤0.5dB MM ● Return loss: >60dB SM; >35 MM ● Interchangeability: ≤0.2dB ● Repeatability: ≤0.2dB ● Insert-pull test: >1000 times ● Fiber Type: SM, MM, OM1, OM2, OM3, OM4, duplex, simplex ● Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM ● Material Feature: PVC/LSZH/OFNR/OFNP/Plenu ● Storage Temperature: -40~+85°C ● Operating Temperature: -25~+85°C ● Storage Humidity: 95%RH (Non-Packaging) ● Packing: Blister Box Packing ● Standard: ROHS Drawing MPO/MTP-LC 12 cores fan-out 0.9mm Type A Patch Cords MPO/MTP-LC 12 cores ribbon fiber fan-out 0.9mm Type A Patch Cords MPO/MTP-LC 12 cores fan-out 2.00mm Type A Patch Cords Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs Related articles ● Comprehensive Introduction to MPO/MTP Fiber Cable Parameters and Connection Instructions Applications ● Gigabit Ethernet ● Industrial & Military ● Premise Installations ● CATV, Video and Multimedia ● Telecommunication Networks ● Interconnection for O/E modules ● Active Device/Transceiver Interface ● Asynchronous Transmission Mode(ATM) ● Optical Switch interframe connections ● Parallel optical interconnect between PC Cards and patch panels Related Articles ● What is MPO/MTP Fiber Cable ● Difference between PC, UPC and APC ● Differences of OM1, OM2, OM3 and OM4 cables ● What is Armoured Patch Cord Ordering Information Part Number: SPP- MPOM - MPOM – AA – 12D – 3HA 1 2 3 4 5 6 7 8 9 1 - Connector A MPOF: MPO Female; MPOM: MPO Male 2 - Connector B MPOF: MPO Female; MPOM: MPO Male 3 – End face A P：PC polish; A：APC polish 4 – End face B P：PC polish; A：APC polish 5 - Fiber Count 12: 12 Cores; 8: 8 Cores ; 24: 24 Cores 6 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M4: OM4; D: G.652D; A1: G657.A1 7 - Length 3 : Cable total length 3M ; etc 8 - Cable Jacket Materials H:LSZH 9 - Polarity A: Type A; B: Type B; C: Type C Fiber Type& Diameter Default: Mini Round Cable 3.0mm Cable Jacket Color Default ： Aqua ( OM3,OM4) Orange (OM1,OM2) , Yellow (SM) Note: 1. MPO-MPO patch cord standard polarity is “ Type A” unless specified otherwise. 2. MPO polishing according to industrial standard: SM-APC polishing, or PC polishing 3. MPO connector housing color: SM-Yellow, OM1/OM2-Orange, OM3/OM4-Aqua. 4. If you need more customized services, please contact us.
