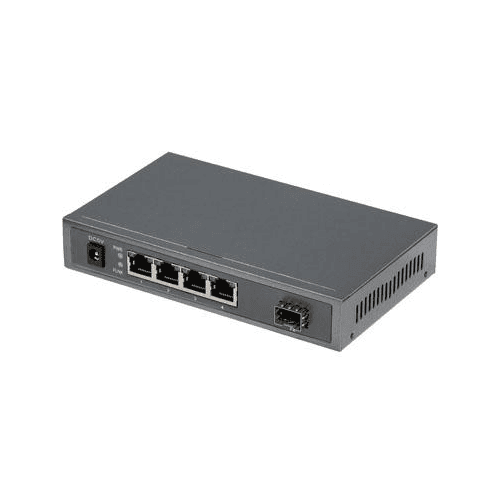

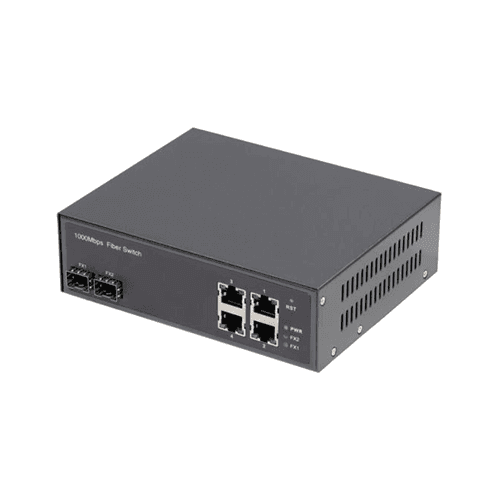

Multi UTP POE Fiber Media Converter
The 10/100/1000Mbps POE fiber switch provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the 2 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
The 10/100/1000Mbps POE fiber switch provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the 2 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras. Feature ● 1 ~ 2 x SFP fiber port ● 2 ~8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports ● RJ45 port support IEEE802.3af( IEEE802.3at optional) ● IEEE802.3/u/x compliant ● Conspicuous LED indicators for power/link diagnose/data ● Support Auto MDI/MDIX ● PoE power for each port is 15.4W for AF and 30W for AT Applications ● LAN/WAN ● Access Control Systems ● 10/100/1000 Mbps Ethernet ● High Speed Computer Links Fast Ethernet Application Gigabit Ethernet Application Ordering Information Part Number Fiber Port Fiber Port Rate (Mbps) Fiber Port No. RJ45 Rate (Mbps) RJ45 No. POE Function Power Supply Temp. SPM-EE14T2X-PX SFP slot 1000 1 10/100/1000 4 PSE af External 220V AC 0 ~ 50°C SPM-EE18T2X-PX SFP slot 1000 1 10/100/1000 8 PSE af External 220V AC 0 ~ 50°C SPM-EE24T2X-PX SFP slot 1000 2 10/100/1000 4 PSE af External 220V AC 0 ~ 50°C SPM-EE28T2X-PX SFP slot 1000 2 10/100/1000 8 PSE af External 220V AC 0 ~ 50°C
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
