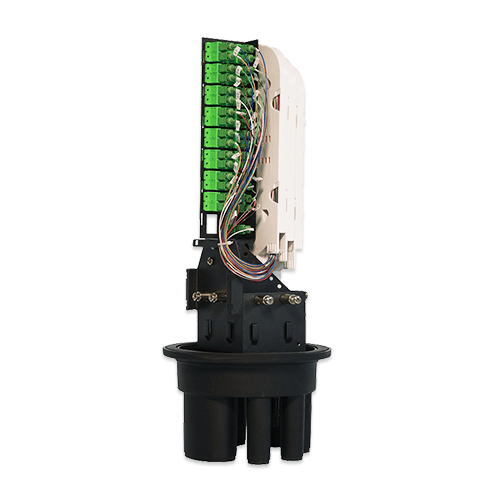

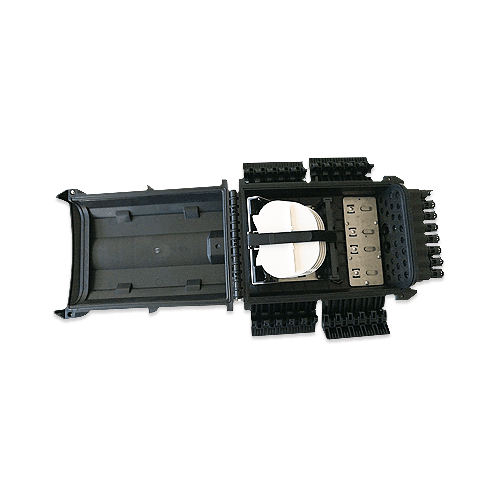

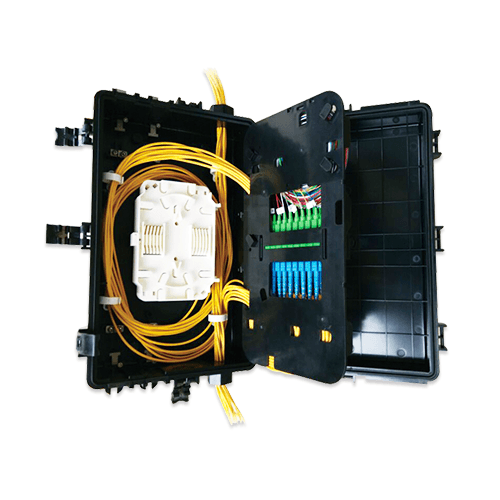

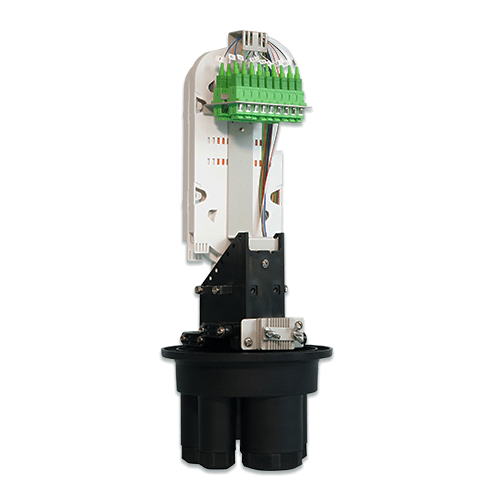

Splitter Fiber Closure
Splitter Fiber Closure is suitable for pole-type, overhead type, direct-buried, pipe installation, and is used for welding and splitting between two or more cables. It is one of the commonly used devices for user access points, mainly for wiring and household cables. Outdoor connection function. The lid and base are sealed with silicone rubber; the cable inlet and outlet can be sealed with heat shrink tubing and threaded seals. Split function, maximum support 2:32.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Splitter Fiber Closure is suitable for pole-type, overhead type, direct-buried, pipe installation, and is used for welding and splitting between two or more cables. It is one of the commonly used devices for user access points, mainly for wiring and household cables. Outdoor connection function. The lid and base are sealed with silicone rubber; the cable inlet and outlet can be sealed with heat shrink tubing and threaded seals. Split function, maximum support 2:32. Feature ● According to the number of fuse cores, the specifications are 12 cores, 24 cores, 48 cores, 72 cores, and 96 cores. ● All property indexes are in accordance with National YD/T814-1996 Standard. ● Made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. ● Light weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life. ● Sealed with adhesive rubber strip(non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain. ● Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe. ● Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments. Item Parameter Type Fiber Closure support Splitter Type Way to install Aerial, duct and buried applications, Pole Capacity of splice tray 12 cores or 24 cores Sealing structure Sticky cincture or heat shrinkable tub Work Temperature -40°C ~+70 °C Optical fiber winding radius ≥40mm Extra loss of fiber tray ≤ 0.01dB Fiber length left in tray ≥1.6m Max Capacity Fiber capacity: single：36cores Lateral pressure-resistance ≥2000N / 10cm Shock-resistance ≥20N.m Applications ● Telecommunication subscriber loop ● Fiber to the home (FTTH) ● LAN/WAN Ordering Information Part Number Product Description Size(mm) SPFC-PH-32M-2/24J Fiber Closure Horizontal type support Splitter 32 Cores Max, 8 Cores Splice Tray 2IN 24 OUT Mechanical Splicing without Splitter adaptors , support 1:8 (2PCS) Max,24pcs adaptors type J 240*385*130mm SPFC-PH-24M-4/4E Fiber Closure Horizontal type support Splitter 24 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing without Splitte, support 1:16/1:8(2PCS) Max type E 470*240*120mm SPFC-PH-36M-4/4E Fiber Closure Horizontal type support Splitter 36 Cores Max, 4 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing without Splitter , support 1:32/1:16 （ 2PCS ） Max type E 470*240*120mm SPFC-PH-48M-4/4E Fiber Closure Horizontal type support Splitter 48cores(24 duplex SC adapters can be installed) 24 Cores Splice Tray 4 IN 4 OUT Mechanical Splicing without Splitter ， support 1:32/1:16 （ 2PCS ） Max type E 470*240*120mm SPFC-PV-24H-4/4C Fiber Closure Vertical type support Splitter 24 Cores Max 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitte, support 1:32/1:16(2PCS) type C φ230*440mm SPFC-PV-48H-4/4C Fiber Closure Vertical type support Splitter 48 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitte, support 1:32/1:16(2PCS) type C φ230*440mm SPFC-PV-72H-4/4C Fiber Closure Vertical type support Splitter 72 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitte, support 1:32/1:16(2PCS) type C φ230*440mm SPFC-PV-96H-4/4C Fiber Closure Vertical type support Splitter 96 Cores Max, 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitte, support 1:32/1:16(2PCS) type C φ230*440mm SPFC-PV-24M-3/3A Fiber Closure Vertical type support Splitter 24 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:32/1:16(2PCS) Max type A φ230*435mm SPFC-PV-48M-3/3A Fiber Closure Vertical type support Splitter 48 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:32/1:16(2PCS) Max type A φ230*435mm SPFC-PV-72M-3/3A Fiber Closure Vertical type support Splitter 72 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:32/1:16(2PCS) Max type A φ230*435mm SPFC-PV-24M-3/3B Fiber Closure Vertical type support Splitter 24 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:16/1:8(2PCS) Max type B φ230*435mm SPFC-PV-48M-3/3B Fiber Closure Vertical type support Splitter 48 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:16/1:8(2PCS) Max type B φ230*435mm SPFC-PV-72M-3/3B Fiber Closure Vertical type support Splitter 72 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:16/1:8(2PCS) Max type B φ230*435mm SPFC-PV-96M-3/3B Fiber Closure Vertical type support Splitter 96 Cores Max, 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing without Splitte, support 1:16/1:8(2PCS) Max type B φ230*435mm SPFC-PO-16M-2/2D Fiber Closure Overhead type support Splitter 16 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing support 1:16/1:8(2PCS) Max type D 340x220x100mm
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
