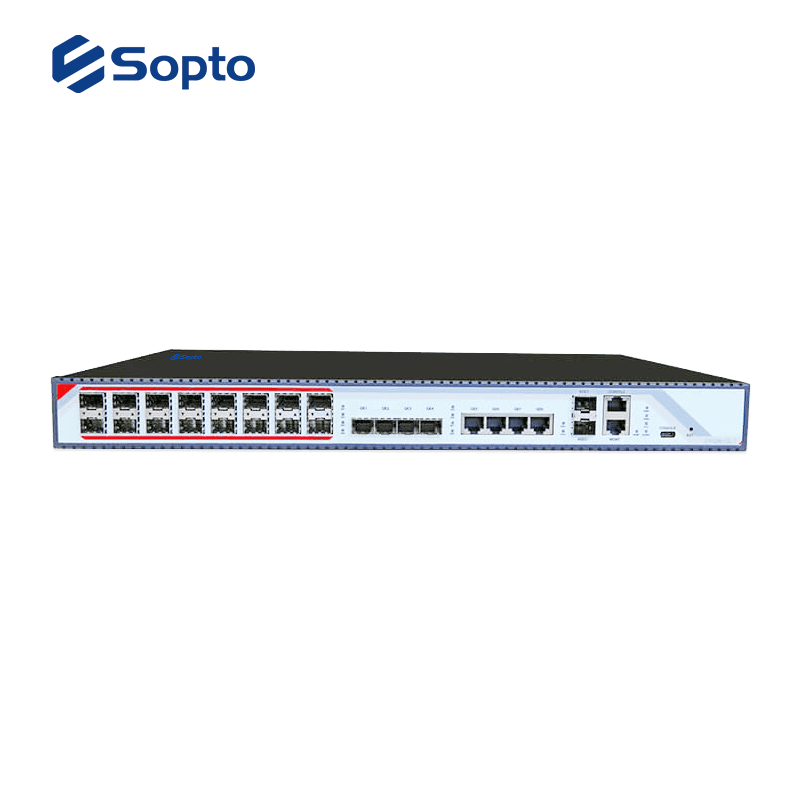

Standalone 16 PON EPON OLT
SOPTO’s 16 PON port pizza-box EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 16 EPON ports for downstream. It can support 1024 ONUs under 1:64 splitter ratio.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 16 PON port pizza-box EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 16 EPON ports for downstream. It can support 1024 ONUs under 1:64 splitter ratio. Feature ● 16 PON ports in 1U pizza-box EPON OLT ● 1 USB interface ● 2 uplink 10Gbps SFP slots ● 4 uplink GE optical SFP ports ● 4 uplink GE RJ45 copper ports ● Double 220VAC or -48VDC redundancy power supply Specification Size 440*350mm*44mm(L*W*H) Weight 5.74kg Backplane Bandwidth 88G Power Consumption 70W Power supply 220VAC AC: 90V ～ 240V ， 47/63Hz -48DC DC:-36V ～ -72V Working environment Working temperature 0 ～ 50 ℃ Storage temperature -40 ～ 85 ℃ Relative Relative humidity 5 ～ 90% (Non-condensing) Management Mode SNMP, Telnet, CLI management mode. Management Port s 1*100BASE － TX outband port; 1CONSOLE port USB Port QTY 1 Connector Type TYPE-C Uplink Port QTY 10 Copper 10/100/1000M auto-negotiable,RJ45:4pcs Optical interface 4 GE 10Gb uplink interface 2*10Gb PON Port Quantity 16 Physical interface SFP slot Connector Type 1000BASE-PX20+ Max splitting ratio 1:64 PON Port attribute Transmission distance 20KM Port rate Symmetrical 1.25Gbps Wavelength 1490nm TX,1310nm RX Interface type SC/PC Fiber type 9/125μm SMF (Single Mode Fiber) TX Power +2.5 ～ +7dBm Rx Sensitivity -27dBm Saturation power -6dBm EPON Function Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP, IGMP Proxy ————————————————————————————————————————————————— EPON OLT Factory Configuration (User Manual and EMS) Download link： https://pan.baidu.com/s/1R_CDpI0co7xOhj70vLjtvg Code： ser2 Applications Applications in FTTH Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Product Model Configuration Notes 1U EPON OLT SPO-ES16424 1U standalone GPON OLT with 1 USB interface, 16 PON ports, 4 uplink gigabit optical ports,4 uplink UTP ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration without SFP modules
Especificaciones técnicas
