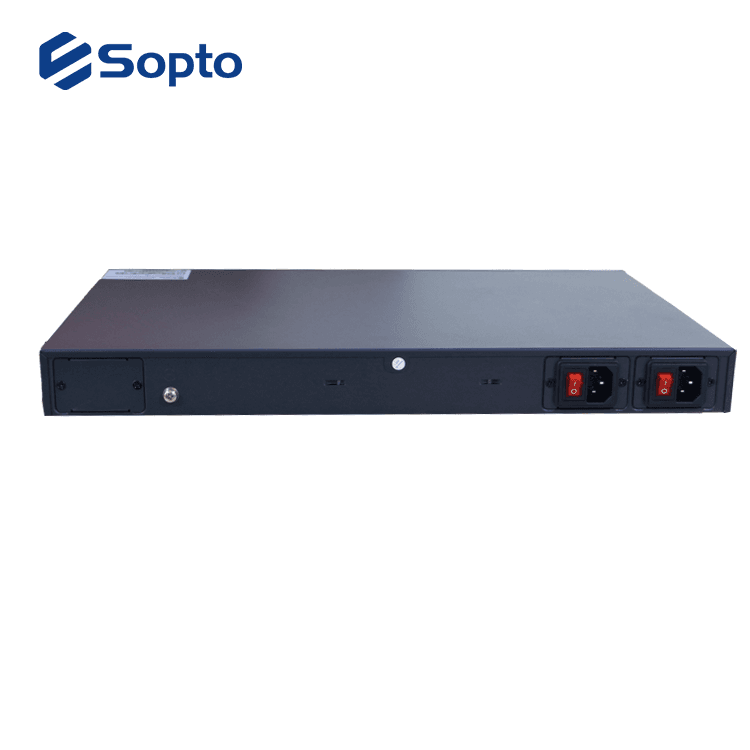

Standalone 16PON GPON OLT

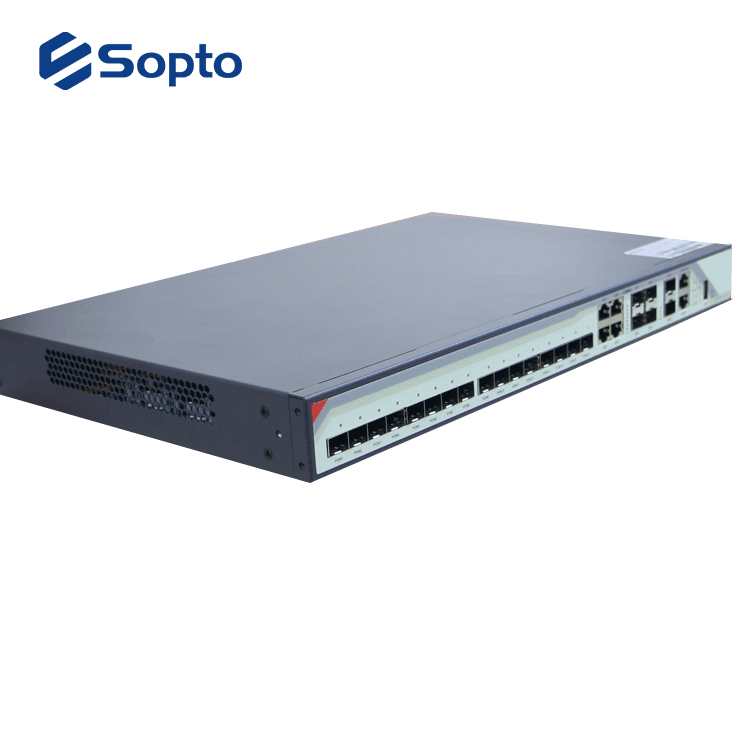

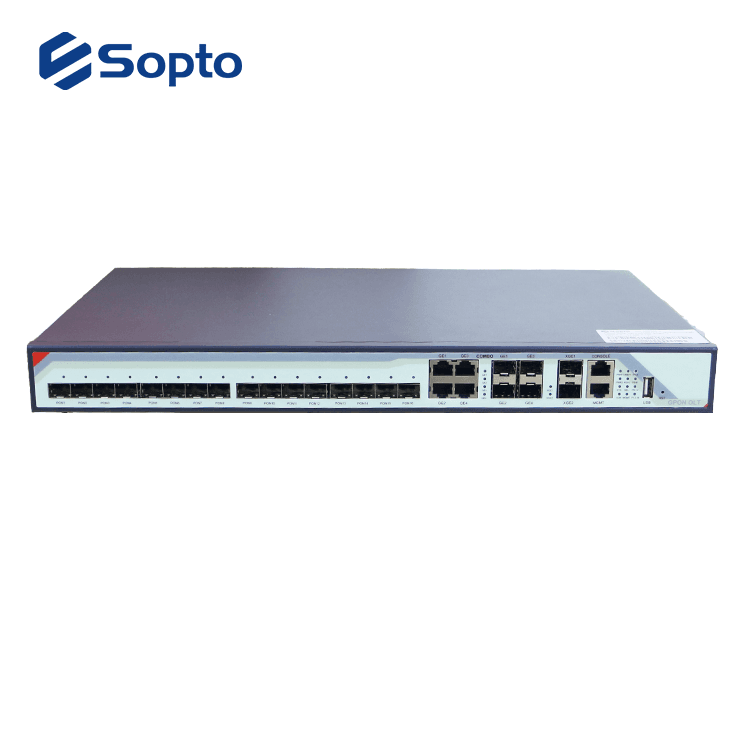

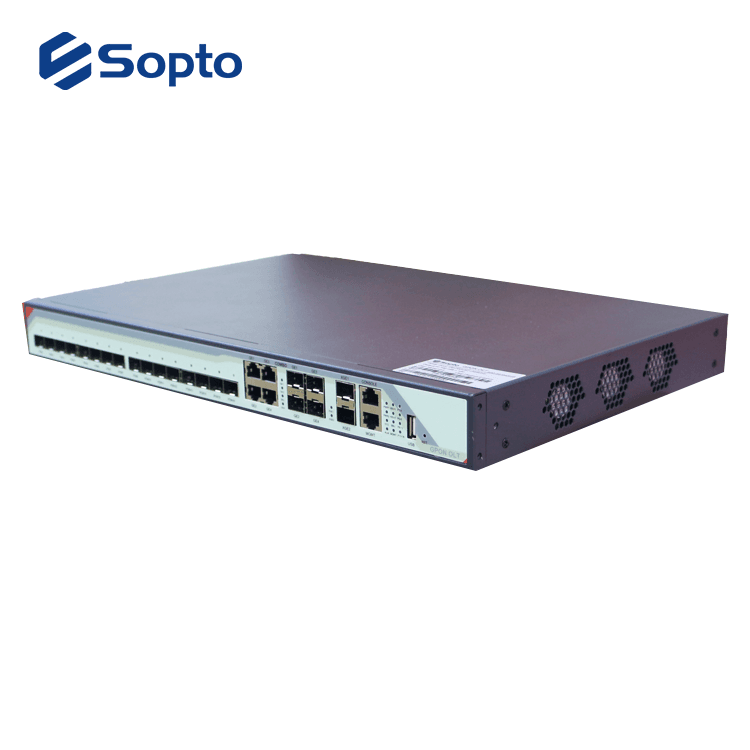

SOPTO’s 16 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE COMBO ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 16 GPON ports.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

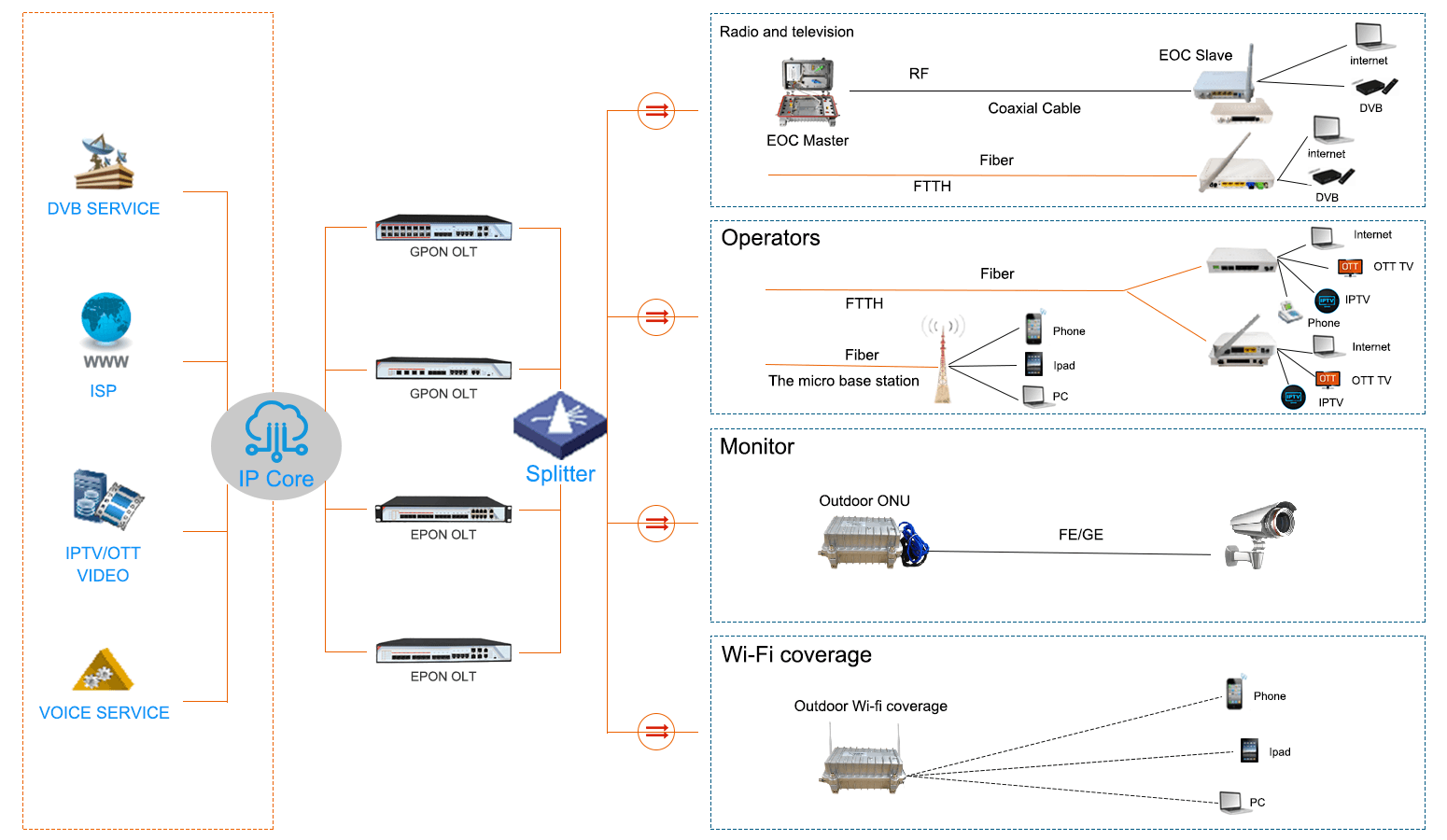

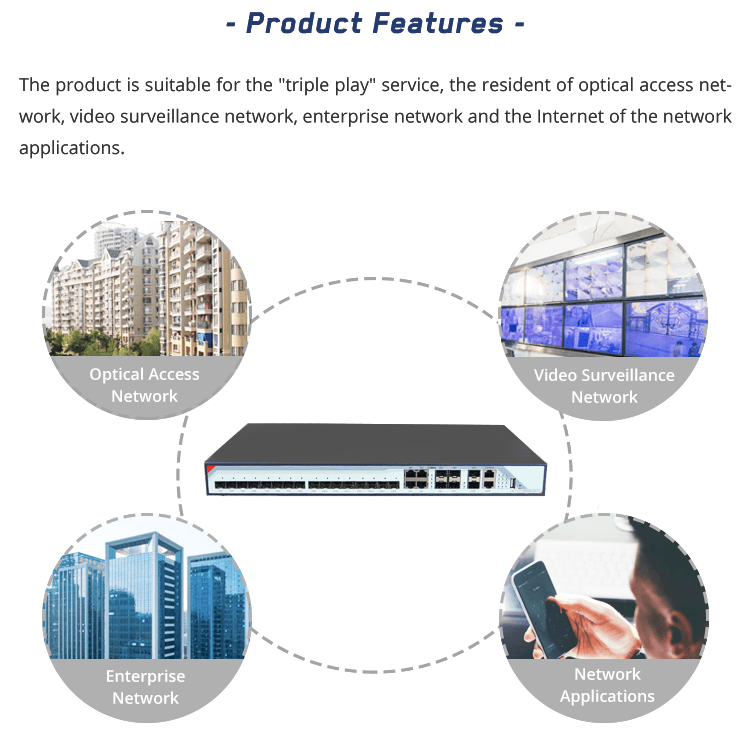

SOPTO’s 16 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE COMBO ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 16 GPON ports. Feature GPON OLT SPO-GS16424 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10-gigabit uplink ports and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 2048 GPON terminals accessing in for the most. This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio. ● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry ● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol ● Layer 2 Switching Function ● Layer 3 Switching Function （ in development ） ● QOS Guarantee ● Easy-to-Use Management System Specification Size 440mm(L)*391mm(W)*44mm(H) Weight 4kg Backplane Bandwidth 136G Maximum power 70W Working environment Working temperature 0 ～ 50 ℃ Storage temperature- -40 ～ 85 ℃ Relative Relative humidity 5 ～ 90% (Non-condensing) Power supply 220VAC AC: 90V ～ 240V ， 47/63Hz -48DC DC:-36V ～ -72V Support BBU AC: 11V ～ 14V Management Rack Type 1U 19-inch standard box Slot 2 power module slot USB Port 1 Type-C interface Management Port 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port Uplink Port COMBO port 4 10/100/1000M auto-negotiation Ethernet ports 4 SFP interfaces 10-Gigabit 2 SFP+ interfaces PON Port Quantity 16 Physical interface SFP slot Interface type ITU-TG.984.2 Class B+/Class C+ Max splitting ratio 1:128 PON Port attribute Transmission distance 20KM Port rate Downstream:2.5Gbps Upstream: 1.25Gbps Wavelength Forwarding: 1490nm Receiving: 1310nm Interface type SC/UPC Fiber type 9/125μm SMF (Single Mode Fiber) Light transmission power Class B+ +1.5 ～ +5dBm Class C+ +3 ～ +7dBm Receiving sensitivity Class B+ -28dBm Class C+ -30dBm Saturation power Class B+ -8dBm Class C+ -12dBm Network management method Support CLI 、 SNMP 、 TELNET 、 SSH 、 WEB ——————————————————————————————————————————————————— —————— GPON OLT Factory Configuration (User Manual and EMS) Download link： https://pan.baidu.com/s/1sLCKMm9C_A0ZjNl-n1V2dA Code： kjgl Applications GPON / EPON OLT Network Applications Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Product Model Configuration Notes GPON OLT SPO-GS16424 1 U standalone GPON OLT with 16 PON ports, 1 USB interface, 4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration.1. BBU key,N-without BBU; B-with BBU. 2. Power key, SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC without SFP modules
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
