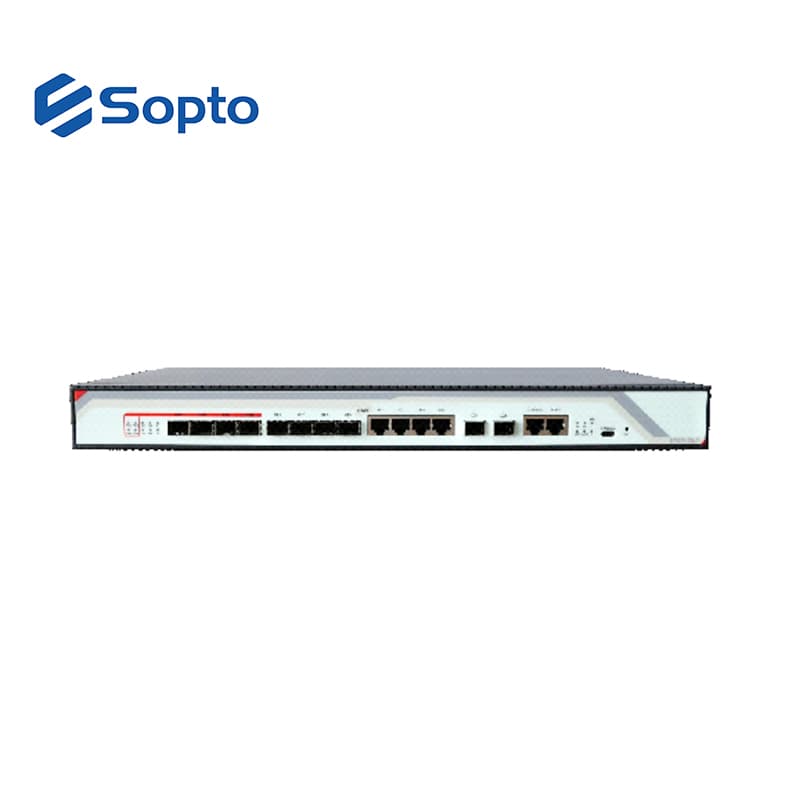

Standalone 4 PON EPON OLT
SOPTO’s 4PON EPON OLT provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. 4PON EPON OLT is a high-performance product.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 4PON EPON OLT provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. 4PON EPON OLT is a high-performance product. Feature ● Four pon port in 1U pizza-box ● Four uplink GE optical SFP ports ● Four uplink GE RJ45 copper ports ● NMS management based on standard SNMP protocol ● Double 220VAC or -48VDC redundancy power supply Specification Size 440*230mm*44mm(L*W*H) Weight 3.4kg Power Consumption 34W Power supply 220VAC AC: 90V ～ 240V ， 47/63Hz Working environment Working temperature 0 ～ 50 ℃ Storage temperature -40 ～ 85 ℃ Relative Relative humidity 5 ～ 90% (Non-condensing) Management Mode SNMP, Telnet, CLI management mode. Management Port 1*10/100/1000Mauto-negotiable outband port 1CONSOLE port Uplink Port QTY 8 Copper 10/100/1000M auto-negotiable,RJ45:4pcs SFP 4 SFP slots PON Port Quantity 4 Physical interface SFP slot Connector Type 1000BASE-PX20+ Max splitting ratio 1:64 PON Port attribute Transmission distance 20KM Port rate Symmetrical 1.25Gbps Wavelength 1490nm TX,1310nm RX Interface type SC/PC Fiber type 9/125μm SMF (Single Mode Fiber) TX Power +2.5 ～ +7dBm Rx Sensitivity -27dBm Saturation power -6dBm EPON Function Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP, IGMP Proxy ————————————————————————————————————————————————— EPON OLT Factory Configuration (User Manual and EMS) Download link： https://pan.baidu.com/s/1R_CDpI0co7xOhj70vLjtvg Code： ser2 Applications Applications in FTTH Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Product Model Configuration Notes 1U EPON OLT SPO-ES4404 1U EPON OLT , 4PON ports, 4 GE uplink optic ports, 4 GE uplink electric ports, 220V AC or -48V DC plug-in power modules,supports dual power supply without SFP modules 1U EPON OLT SPO-ES4424 OLT 1U Standalone EPON 4 PON Ports + 4 GE uplink optic ports(SFP)/4 GE uplink UTP ports + 2 10GE uplink optic ports(SFP+) Commercial Temperature , 1 USB interface; 1.BBU key,N-without BBU; B-with BBU; 2.Power key, SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC Without SFP modules
Especificaciones técnicas
